Drum hoop mixer for uniform three-dimensional mixing

Achieve consistent, homogenous mixing of powders and granules with a drum hoop system that enhances product uniformity through efficient three-dimensional tumbling, perfect for batch operations in high-precision settings.

Tumbles and Mixes Powders and Granules Efficiently

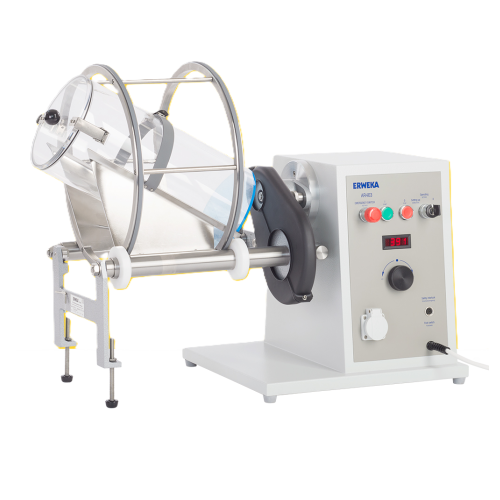

The Drum Hoop Mixer RM from ERWEKA GmbH is an innovative solution designed to efficiently mix powders and granules across pharmaceutical, chemical, food, and biotech industries. It features a diagonal drum placement within a rotating hoop, creating a uniform, three-dimensional mixing action ideal for producing pharmaceutical powders, dietary supplements, and fine chemical products. The mixer offers a 5-liter mixing drum with a working capacity of up to 40%, ensuring precise batch blending for tablets such as paracetamol, ibuprofen, and vitamin supplements.

The system allows for manual batch operations with optional dual mixer capability for increased throughput. Integration into existing processing lines is seamless, with potential for customization to meet specific material handling requirements. Constructed with durable acrylic and compatible materials, the mixer maintains low maintenance requirements, aided by easy-to-clean components. ERWEKA GmbH has engineered this mixer to meet stringent quality standards, supporting compliance in regulated production environments.

Benefits

  • Enhances mixing consistency, ensuring uniform ingredient distribution in final products.
  • Reduces operational costs by allowing batch processing within compact footprint.
  • Increases production flexibility with optional dual mixer setup for higher capacity.
  • Supports regulatory compliance with materials suited for cleanroom environments.
  • Simplifies cleaning and reduces contamination risk with accessible, easy-to-maintain components.

General


Applications
Vitamins,Supplements,Fine chemicals,Pharmaceutical tablets,Pharmaceutical powders
End products
Mineral supplements,Ibuprofen tablets,Vitamin c tablets,Probiotic capsules,Fish oil capsules,Effervescent multivitamins,Calcium supplements,Amino acid powder,Aspirin tablets,Paracetamol powder
Steps before
Weighing,Purification,Granulating
Steps after
Filling,Dosing,Polishing,Coating,Tablet Pressing
Input ingredients
mixing drum contents,material for mixing,processing material
Output ingredients
uniform mixed material,tumbled mix,blended material
Market info
ERWEKA is renowned for manufacturing high-quality pharmaceutical testing equipment, including dissolution testers, tablet hardness testers, and other analytical instruments, known for their precision and reliability in laboratory testing environments.

Technical Specifications


Mixing Drum Volume
5 liters
Working Capacity
Max. 40%
Mixing Action
Three-dimensional displacement,tumbling
Optional Accessory
Ball mill drums
Drum Material
Acrylic

Operating Characteristics


Working mechanism
Tumbling mixing action
Simultaneous use capability
Two mixers of the same size
Drum placement
Diagonal placement within the hoop
Mixing method
Three-dimensional displacement

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Material displacement
Uniform three-dimensional

Physical Characteristics


Drum shape
Cylindrical
Drum size
5 liters
Material displacement
Three-dimensional
Working capacity
Max 40%

Custom Options


Drive support type
Standard/Extended for simultaneous use of two mixers
Drum material
Acrylic
Drum size
5 liter volume
Optional accessories
Ball mill drums
