Dpi inhaler production system

Enhance your inhaler production with precision assembly and integrated dosing, filling, and capping processes—perfect for complex pharmaceutical devices demanding high-speed, precise operations and clean room conditions.

Assembles and Fills Dry Powder Inhalers

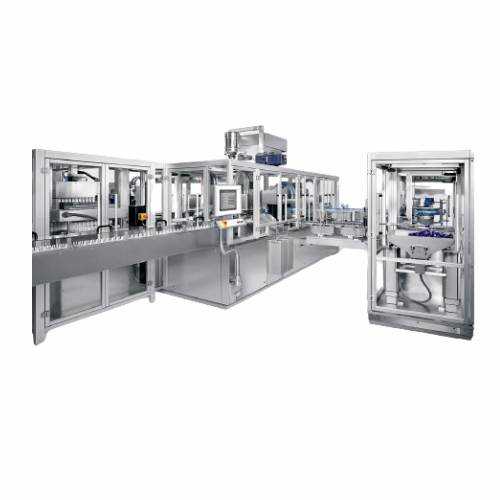

The FOT Oval Motion Machine from Harro Höfliger excels in the precise assembly and filling of dry powder inhalers (DPIs) for pharmaceutical applications. Featuring a unique oval motion design, it efficiently integrates dosing, filling, inspection, and capping of inhalers with powder reservoirs. Capable of operating at speeds up to 60 cycles per minute, it supports intermittent, high-speed operations with up to 50 stations to accommodate complex assembly tasks. The platform, suitable for medical device and pharmaceutical product manufacturers, seamlessly integrates with existing production lines and offers a clean room design option (Class 100,000-1,000) for sterile environments. Its robust parts handling system utilizes vacuums, grippers, or tongs for precise component transfer and can perform simultaneous loading and unloading. An auger filler ensures accurate powder dosing, while inspection systems maintain high product quality standards. Harro Höfliger’s expertise in barrier technology ensures operator and product safety, with ergonomic designs facilitating user-friendly operations.

Benefits

  • Increases production efficiency with up to 60 cycles per minute.
  • Ensures high-quality output through integrated inspection systems.
  • Minimizes contamination risks with clean room compatibility.
  • Enhances operational flexibility with customizable modular stations.
  • Protects operators and products with advanced barrier technology.

General


Applications
Medical devices,Inhalation products,Pharmaceutical products,Dry powder inhalers,Pharmaceutical devices
End products
Dpi inhalers,Pharmaceutical device components,Inhaler casing,Dpi filling components,Inhaler caps,Inhalers with powder reservoirs,Dry powder inhaler parts,Pre-assembled inhaler parts
Steps before
Feeding,Component Preparation,Pre-Assembly,Material Handling
Steps after
Inspection,Packaging,Labelling,Quality Control
Input ingredients
powder,pellets,liquids,pre-assembled DPI inhalers,active ingredients
Output ingredients
inhalers with powder reservoirs,assembled DPI inhalers
Market info
Harro Hoefliger is known for its expertise in manufacturing custom, engineered-to-order packaging and production equipment, particularly for the pharmaceutical, healthcare, consumer goods, and chemical industries, with a reputation for precision, innovation, and quality engineering solutions.

Technical Specifications


Output
up to 60 cycles/min
Stations
12-50
Exception
1 to 8 grooves
Clean Room Design Option
Clean room class 100,000-1,000
Fill Method
Auger filler
Filling Type
Powder,pellets,liquids
Automation
Intermittent

Operating Characteristics


Working mechanism
Oval motion platform
Integrated steps
Assembly,inspection,dosing
Cleanroom design
Class 100,000-1,000
Automation level
High speed,precise product transport
Changeover time
Minimal set-up space and quick adaptability
Batch vs. continuous operation
Intermittent

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
Vials / Ampoules / Bottles
Product type
DPI Inhalers


Cleanroom design option
Clean room class 100,000-1,000
ISO Class
ISO 7 / ISO 8

Physical Characteristics


Machine footprint
Compact design
Stations
12-50
Output
up to 60 cycles/min
Clean room design option
Clean room class 100,000-1,000

Custom Options


Control panel type
HMI/PLC options
Integration possibilities
Compatible with packaging and feeding machines
Clean room design option
Clean room class 100,000-1,000
Compact design
Minimal set-up space
Product transport
Precise with high cycle rates
