Double sides adhesive sticker labeling solution

Achieve seamless and precise double-sided labeling on bottles and containers, ensuring product consistency and enhancing packaging efficiency across diverse product lines.

Applies Double-Sided Adhesive Labels to Containers

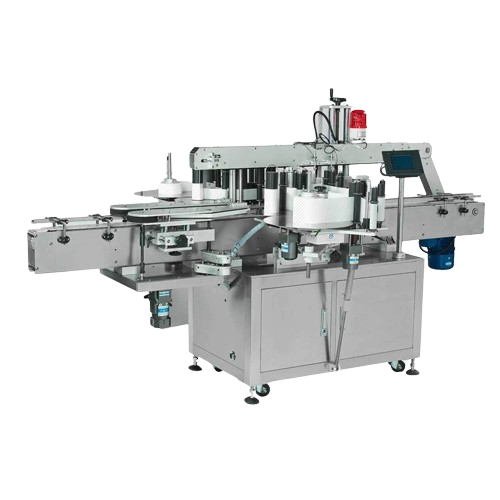

The SMT06 from Alps Machinery enhances your production line by providing precise, automated labeling for a wide array of containers, including PET bottles, glass jars, and plastic cups. It employs a PLC control system for stable operation, while the touch-screen interface ensures ease of use and efficiency. The SMT06 accommodates containers ranging from 100ml to 2L, with a labeling capacity of up to 6,000 bottles per hour. Its synchronization chain mechanism guarantees smooth and precise application, supporting industries from pharmaceuticals to automotive. The pneumatic coding system prints batch and expiry dates clearly, and a rolling bottle device enhances label adhesion. For customizable applications and reliable support, this machine is an essential asset in high-demand environments.

Benefits

  • Enhances labeling accuracy, reducing rework and waste.
  • Increases production speed with a capacity of 6,000 bottles per hour.
  • Adapts to a wide range of container sizes and shapes, enhancing operational versatility.
  • Streamlines maintenance with a user-friendly touch-screen interface.
  • Ensures precise date coding to meet regulatory requirements.

General


Applications
Food,Hardware,Medicine,Pet bottles,Jars,Plastic cups,Stationery,Cosmetics,Beverage bottles,Bottle caps,Auto parts,Batteries,Electronics,Cans,Glass bottles
End products
Yogurt plastic cups,Sauce bottles,Smartphone packaging,Foundation bottles,Beverage cans,Tool boxes,Pen packs,Spark plug bottles,Honey jars,Soda pet bottles,Pill containers,Mineral water bottle caps,Juice bottles,Wine glass bottles,Alkaline battery packs
Steps before
Bottle Blowing,Filling,Cap Sealing
Steps after
Packing,Quality Control,Batch Coding
Input ingredients
PET bottle,Glass bottle,Jar,Can,Plastic cup,Bottle cap,Adhesive label,Sticker label,Batch number,Expiry date
Output ingredients
Labeled PET bottle,Labeled Glass bottle,Labeled Jar,Labeled Can,Labeled Plastic cup,Labeled Bottle cap
Market info
Alps Machine is known for specializing in the design and manufacturing of industrial engineered-to-order equipment, providing innovative solutions and reliable machinery tailored to the specific needs of industries like beverage and packaging.

Technical Specifications


Max Capacity
6000 Bottles/hour
Bottle Sizes
100ml ~ 2L
Bottle Diameter
Dia 28-125mm
Label Length
10-250mm
Label Height
20-100mm
Label Material
Self adhesive / Sticker label
Electrical Power
0.5kw
Overall Dimensions
2.2 x 1.0 x 1.4 m
Weight
320kg
Automation
PLC-controlled

Operating Characteristics


Automation level
PLC-controlled
Batch vs. continuous operation
Inline Continuous
Cleaning method
Automatic
Labeling precision
High accuracy
Label type handling
Self-adhesive / Sticker
Bottle type adaptability
PET / Glass / Conical / Flask

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Suitable Bottle Types
PET,Glass,Jar,Can
Label Material
Adhesive / Sticker

Physical Characteristics


Compact footprint
2.2 x 1.0 x 1.4 m
Control panel type
Touch-screen man-machine interface
Discharge method
Transmission-type rolling bottle device
Machine weight
320 kg

Custom Options


Control panel type
Touch-screen man-machine interface
Integration possibilities
Pneumatic coding system
Machine angle adjustment
Adapt to different bottle shapes and sizes
Label compatibility
Transparent and self-adhesive labels
Bottle type compatibility
Conical and flask bottles
