Double sheet forming system for ravioli production

Streamline your production with high-speed forming and sealing, achieving consistent quality for filled pasta and snack products, while reducing waste through efficient thickness reduction and precise cutting.

Forms and Seals Double Sheet Pasta and Ravioli

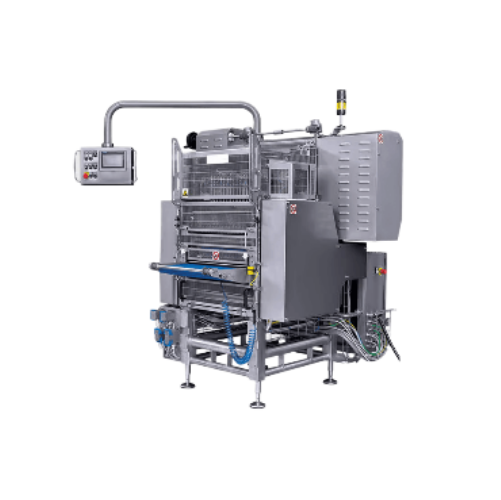

The GEA FreshPasta Former 2 R540 is specifically engineered for high-speed, continuous forming of double sheet pasta and ravioli. This machine effectively reduces sheet thickness, doses precise filling amounts, and seals products with exceptional consistency. With the capability to handle diverse fillings, from ricotta and spinach to fruit-filled cereal pockets, it supports a broad range of food production applications, including pasta snacks and breakfast cereals. The Former 2 R540 operates with a cruising speed of 120 to 180 hits per minute and can reach a maximum of 250 hits per minute, accommodating sheets up to 540mm wide and achieving final product thicknesses between 0.8 to 1.6mm. Integration into existing lines is seamless, thanks to options for local or remote electric panel installation and multiple pump connections for varied filling types. Its stainless-steel construction ensures full washability and hygiene, while tool-free mold changes and quick, five-minute mold changeovers minimize downtime. The compensating piston maintains consistent pressure for superior filling quality, making it a reliable solution for food manufacturers committed to versatility and efficiency in their production lines.

Benefits

  • Enhances production efficiency with rapid mold changeovers in just five minutes.
  • Maintains superior product quality through consistent pressure control during forming.
  • Minimizes labor involvement with tool-free cleaning and maintenance.
  • Increases product variety, accommodating multiple filling types and sheet dimensions.
  • Optimizes integration into diverse production lines with adaptable installation and operation configurations.

General


Applications
Ravioli,Breakfast cereals,Pasta snacks,Fresh pasta
End products
Filled pasta with cheese and sundried tomatoes,Ravioli with beef and mushroom,Double sheet pasta snacks with various fillings,Double sheet breakfast cereal pockets with fruit filling,Ravioli with ricotta and spinach,Fresh pasta filled with truffle and porcini,Ravioli with lobster
Steps before
Sheet preparation,Filling preparation
Steps after
Scrape cutting,Mixing,Packing,Storage
Input ingredients
pasta sheet,filling,pasta dough
Output ingredients
double sheet ravioli,formed pasta,sealed ravioli
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Speed
Cruising
Max
250 hit/min
Sheet Width
540 mm
Final Product Thickness
0.8-1.6 mm
Filling Capacity
More than 70% of filling
Automation
Centralized regulation
Quick mould change (5 minutes)
Cleaning
Completely washable without tools
Pump Connection
Lobes,paddles,or screw
Filling Humidity
Up to 95% humidity
Filling Particle Size
Pieces up to 20 mm in dimension
Material
Stainless-steel structure

Operating Characteristics


Automation level
Manual / PLC
Batch vs. continuous operation
Inline Continuous
Changeover time
5 minutes
CIP/SIP
Completely washable
Cleaning method
Quick mould change

Material Compatibility


Cleanability
Stainless steel
Completely washable
Corrosive resistance (e.g. acids)
Stainless steel
Abrasion resistance
Stainless steel structure
Biological compatibility
Food-grade stainless steel
Density/particle size
95% humidity
Pieces up to 20mm

Physical Characteristics


Sheet width
540 mm
Final product thickness
0.8-1.6 mm
Max. speed
250 hit/min
Cruising speed
120/180 hit/min (ravioli)
Sheet width
300 mm
Structure material
Stainless steel
Control panel location
Proximity or remote

Custom Options


Control panel installation options
Proximity/Remote
Pump connection type
Lobes/Paddles/Screw
Mould configuration
Single/Double pocket
