Dosing and wrapping solution for pasty products

Achieve precise dosing and efficient wrapping of pasty products with high-speed operation, ensuring minimal product waste and adaptability for varied packaging sizes, making it ideal for high-output production lines.

Doses and Wraps Pasty Products Efficiently

The MULTIPACK 8600 from IMA Group is a high-speed dosing and wrapping machine specifically designed for precision and efficiency in the food and dairy sectors. This innovative equipment excels in handling applications such as butter, margarine, edible fats, and fresh cheese, making it ideal for producers seeking to enhance their production capabilities.

Using an advanced double-cell design, the MULTIPACK 8600 achieves up to 300 packets per minute, with a dosing range between 50 and 180 grams. It integrates seamlessly into your existing production line, featuring servo-driven operations for optimal control and precision. Expect outstanding accuracy due to a constant dosing system, maintaining an impressive filling precision of s=0.3 g for quantities under 180 g.

The machine supports sustainable operations with motors optimized for energy efficiency, cutting power usage between 10 to 30%. It also minimizes product waste by offering superior filling accuracy and the use of parchment or other paper-based materials further enhances its eco-friendliness.

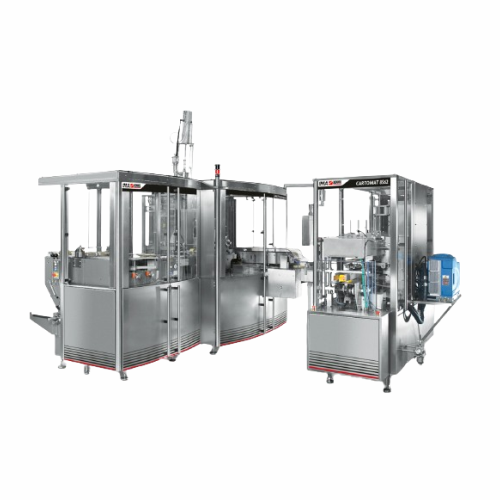

Additionally, the MULTIPACK 8600 pairs perfectly with the CARTOMAT 8562/8563 for end-of-line cartoning processes, accommodating various configurations to meet your packaging needs. Engineered from corrosion-resistant materials, it ensures durability and long-term reliability, while PLC control with a touch screen interface facilitates efficient operation and monitoring. Options for CIP cleaning, date coding, and remote access control further bolster its versatility, making it a comprehensive solution for your dosing and wrapping requirements.

Benefits

  • Enhances production efficiency with a top speed of 300 packets per minute.
  • Minimizes energy costs with energy-efficient motors, saving 10-30%.
  • Reduces product waste through high filling accuracy.
  • Ensures operational reliability with servo-driven controls and durable materials.
  • Offers flexibility in packaging with compatibility for various product configurations.

General


Applications
Butter,Fresh cheese,Edible fats,Margarine
End products
Butter portions,Margarine sticks,Edible fats blocks,Fresh cheese packs
Steps before
Direct feed from the process plant,Product feed
Steps after
Cartoning,End-of-line packaging,Carton forming,Carton outfeed
Input ingredients
butter,margarine,edible fats,fresh cheese
Output ingredients
wrapped consumer portions,cartoned products
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Output Speed
Up to 300 packets/min
Size Range
50 to 180 g
Filling Accuracy
s = 0.3 g for Qn < 180 g
Dosing System
Advanced dosing system with constant dosing time
Product Feed
Direct feed from the process plant
Wrapping Material
Parchment,aluminum laminated foil,plastic coated papers,PE foil
Wrapper Registration
Photo-electric for wrapper with printed scanning marks
Automation
PLC by Allen Bradley with touch screen operating panel
Main Drive
Servo-driven main drive
Individual Servo-Drives
For wrapping material feed,dosing unit and lifting cells

Operating Characteristics


Automation level
PLC with touch screen operating panel
Batch vs. continuous operation
Inline Continuous
Energy efficiency
Power saving between 10 – 30%
CIP/SIP
CIP cleanable dosing unit
Filling accuracy
s = 0.3 g for Qn < 180 g
Changeover time
Exceptional size flexibility
Working mechanism
Dosing and wrapping
Integrated steps
Works in line with CARTOMAT 8562/8563 for cartoning

Material Compatibility


Parchment paper
Yes
Aluminum laminated foil
Yes
Plastic coated papers
Yes
PE foil
Yes
Other materials on request
Yes
Corrosion-resistant materials
Yes

Product type Characteristics


Product type
Pasty type products
Filling material
Butter,margarine,edible fats,fresh cheese
Integration capability
Works in line with CARTOMAT 8562/8563

Physical Characteristics


Control panel type
PLC by Allen Bradley with touch screen operating panel
Discharge method
Bottom fold for Sticks
Feed type
Direct feed from the process plant

Custom Options


Control panel type
PLC by Allen Bradley with touch screen operating panel
