Distillation equipment for large reactors

Efficiently achieve high-purity separations and syntheses with distillation equipment designed for seamless integration with large reactors, ensuring optimal reaction control and product refinement in demanding applications.

Enables Reaction, Distillation, and Separation Processes

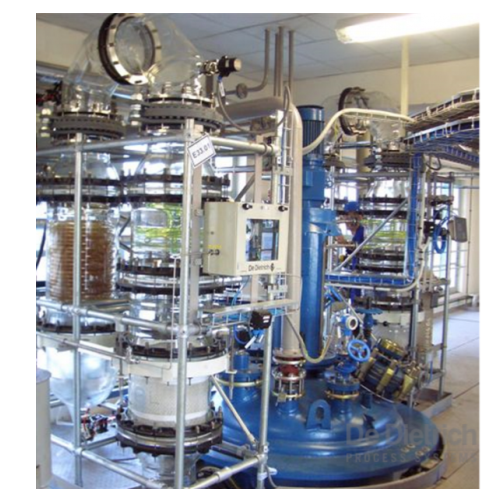

The Distillation Equipment for Reactors from De Dietrich Process Systems combines glass-lined steel reactors with borosilicate glass attachments, optimizing reaction and distillation in chemical and pharmaceutical manufacturing. It excels in producing high-purity APIs, vitamins, and specialty chemicals. Operating in batch or continuous modes, it enables precise reactions, rectification, and phase separation at atmospheric pressure or vacuum conditions. Its borosilicate glass 3.3 construction ensures superior corrosion resistance and visual process monitoring. The setup includes PTFE bellows for flexible connection, accommodating up to 10,000-liter vessels. Equipped with measuring and control devices, including thermometers and flow meters, it integrates seamlessly into production lines, offering options in stainless steel or glass-lined materials for enhanced durability. The equipment supports GMP and FDA compliance and is customizable to meet specific plant requirements.

Benefits

  • Enhances product purity and quality with precise reaction and separation control.
  • Minimizes operational costs by integrating reaction and distillation into a single apparatus.
  • Provides superior corrosion resistance, reducing maintenance needs and extending equipment lifespan.
  • Allows flexible operation with batch and continuous processing capabilities.
  • Meets stringent regulatory standards, ensuring compliance in pharmaceutical and specialty chemical production.

General


Applications
Vitamins,Fine chemicals,Specialty chemicals,Plant protection agents,Pharmaceuticals
End products
Polymers,Vitamin c,Active pharmaceutical ingredients (apis),Pesticides,Vitamin d supplements,Herbicides
Steps before
Reaction,Mixing,Synthesis,Hydrogenation
Steps after
Separation,Product Purification,Recovery,Refinement
Input ingredients
starting materials,reactants,vapours,volatile substances
Output ingredients
desired products,distillate,light phase,heavy phase,separated chemicals,fine chemicals,plant protection agents,vitamins,pharmaceuticals
Market info
De Dietrich is renowned for manufacturing high-quality engineered-to-order (ETO) equipment, specializing in chemical process systems, glass-lined reactors, and filtration technologies, with a strong reputation for innovation, reliability, and safety in the chemical and pharmaceutical industries.

Technical Specifications


Material
Borosilicate Glass 3.3,PTFE
Capacity
Up to 10,000L
Pressure
Atmospheric or under vacuum
Mode of operation
Batch or Continuous
Attachment connection
PTFE bellows
Heat Exchanger Type
Coil,Shell,Tube
Temperature Measurement
Pt100
Flow Measurement
Local display (distillate flow)
Pressure Gauge
Local display (vapour line)
Distillation Types
Boiling under reflux,Distillation,Hydro Distillation,Rectification,Phase Separation,Vacuum Distillation
Column Packing
Bubble cup trays,Raschig ring,DURAPACK®

Operating Characteristics


Batch vs. continuous operation
Batch / Continuous
Reflux operation
Boiling under reflux
Vacuum operation
Atmospheric pressure / Vacuum
Process integration
Synthesis and separation
Flexible connection
PTFE bellows
Visual process control
Transparent borosilicate glass
Automation level
Manual / Instrument controlled

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Reactive and distillation processes
Chemical/Pharmaceutical

Physical Characteristics


Vessel Capacity
Up to 10,000 L
Vessel Material
Glass-lined steel / Stainless steel
Attachment Material
Borosilicate Glass 3.3
Configuration
Overhead construction
Process Connection
PTFE bellows
Heat Exchanger Type
Coil / Shell,Tube
Mounting Type
Separate structure mounting

Custom Options


Control panel type
PLC / Manual
Integration possibilities
PTFE Bellows / Direct Connection
Vessel attachment options
Coil Heat Exchanger / Shell,Tube Heat Exchanger
Material construction
Stainless Steel / Borosilicate Glass 3.3
Construction type
Overhead / Side Mounting
