Depulper for efficient fruit and vegetable juice extraction

Streamline your juice production with equipment designed for efficient separation of pulp and juice, ensuring high-quality output and reduced waste for a variety of fruits and vegetables.

Extracts Juice and Pulp from Fruits and Vegetables

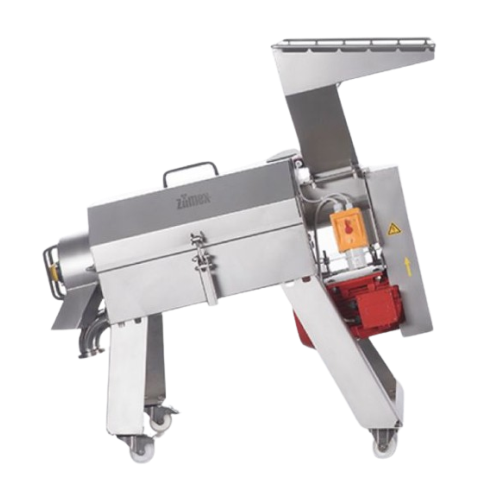

The ZPD500 from Zumex is a robust industrial depulper designed specifically for the food and beverage industry. It utilizes a perforated cylinder with an adjustable slope, where a screw conveyor and three paddles press the fruit against the cylinder perforations. This process efficiently separates the juice and pulp from the stones, offering continuous, high-speed operations tailored for diverse juice extraction applications including citrus, tropical, and vegetable juices.

With the capacity to handle various end products such as orange, apple, and pomegranate juices, the ZPD500 is an integral part of a production line. Its compatibility with additional systems like CIP ensures easy maintenance and quick cleaning, reducing downtime. The unit can be customized with different mesh sizes for a broad array of fruit types, providing flexibility to juice producers and industrial fruit processors. Designed with corrosion-resistant materials, it promises long-term reliability in demanding processing environments.

Benefits

  • Enhances juice quality by efficiently separating pulp and stones.
  • Supports a wide range of fruit types with customizable mesh options.
  • Reduces maintenance time with integrated CIP cleaning system.
  • Increases operational efficiency through continuous high-speed processing.
  • Durable construction ensures longevity in corrosive environments.

General


Applications
Pomegranate juice,Tropical fruit juices,Citrus juices,Multi-fruit solutions,Vegetable juices,Juice and pulp extraction,Fruit juices
End products
Fruit and vegetable pulp,Citrus blend juice,Lemon juice,Apple juice,Pineapple juice,Orange juice,Mango juice,Green vegetable juice,Grapefruit juice,Carrot juice,Beetroot juice,Passion fruit juice,Mixed fruit juice
Steps before
Washing,Selection,Loading,Crushing
Steps after
Filtering,Pulp Extraction,Juice Extraction,Packing,Capping,Labeling
Input ingredients
fruit,raw fruit
Output ingredients
raw juice,pulp,stones
Market info

Technical Specifications


Perforated cylinder size
Adjustable slope
Material retention
Independent output for stones
Mesh options
Available with different meshes
Screw conveyor
Driven by a screw conveyor with three paddles
Automation
Manual / Adjustable

Operating Characteristics


Working Mechanism
Perforated Cylinder with Adjustable Slope
Integrated Steps
Screw Conveyor,Juice and Pulp Collection,Stone Discharge
Batch vs. Continuous Operation
Continuous
Automation Level
Manual Adjustments
CIP Method
Available / Customizable

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Perforated cylinder
Adjustable slope,different meshes available
Discharge method
Independent output for stones
Screw conveyor
With three paddles

Custom Options


Perforated cylinder mesh
Available with different meshes
Slope adjustment
Adjustable slope
Discharge type
Independent output for stones
