Degassing and carbonation system for mineral water

Optimize your carbonation process with a compact system that ensures precise CO2 dosing and superior product quality, addressing the need for consistent flavor and effervescence in sparkling and flavored water productions.

Degasses and Carbonates Mineral and Flavored Waters

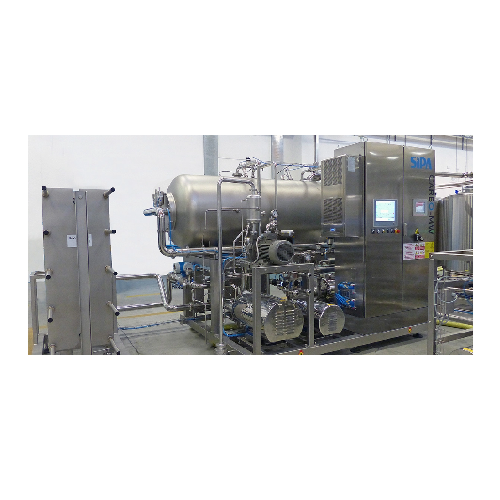

The Carbo-MW from SIPA is a compact unit designed for efficient degassing and carbonation in mineral and flavored water production. Its innovative in-line proportional CO2 dosing technology uses mass flow meters for precision control, ensuring consistent carbonation quality and repeatability. The process begins with water being guided to a horizontal degassing tank, where high vacuum or CO2 counterpressure efficiently removes gases. This is followed by carbonation using a special injector nozzle that finely dissolves CO2 for maximum solubility. With capacities ranging up to 66,000 liters per hour, the Carbo-MW integrates seamlessly into continuous, fully automatic production lines, featuring PLC control and a 15-inch touch-screen interface for ease of use. It offers significant energy savings through efficient gas consumption and is constructed with stainless steel for durability and hygiene. Optional features like product cooling and precise oxygen and CO2 measurement enhance its versatility. Its compact design allows for easy transport and installation, fitting conveniently into logistics operations. Suitable for the food and beverage industries, the Carbo-MW is essential for beverage manufacturers and bottling companies focused on producing high-quality carbonated drinks.

Benefits

  • Enhances product quality with precise carbonation control, maintaining desired CO2 levels in beverages.
  • Minimizes operational costs through efficient gas consumption and energy savings.
  • Simplifies installation and logistics with a compact, easy-to-transport design.
  • Boosts production flexibility with seamless integration into automated, continuous processes.
  • Ensures high sanitation standards with hygienic design and construction.

General


Applications
Carbonated mineral water,Flavoured water
End products
Mixed berry-infused sparkling water,Citrus-flavored sparkling water,Lemon-flavored sparkling water,Sparkling mineral water,Tropical fruit-flavored fizzy water,Berry-flavored carbonated water
Steps before
Water Filtration,Water Purification
Steps after
Filling,Bottling,Packaging
Input ingredients
water,CO2
Output ingredients
carbonated mineral water,flavoured water
Market info

Technical Specifications


Capacity
Up to 12,000–66,000 l/h
Carbonation range
1.5 ÷ 4.5 V/V
CO2 control accuracy
± 0.05V/V or better
Cpk capability
> 1.33
Dosing system
In line proportional CO2 dosing
Automation
Fully automatic process
Control panel
15-inch touch-screen operator control panel
Pump control
Frequency-controlled pumps
Outflow rangeability
1
Construction material
1.4401 stainless steel (AISI316)
Degassing method
Double stage deaeration with high vacuum principle
Gas consumption
Reduced through capacity control
Cooling integration
Cooling of the carbonated product

Operating Characteristics


Working mechanism
In-line continuous
Integrated steps
Degassing and carbonation
CIP/SIP
CIP 121°C
Batch vs. continuous operation
Inline Continuous
Automation level
PLC-controlled
Logistics ease
Packable in containers

Material Compatibility


Cleanability
Hygienic design for easy cleaning
Corrosive resistance (e.g. acids)
1.4401 stainless steel (AISI316)

Product type Characteristics


Product handling
Gentle handling


ISO Certification
ISO 9001

Physical Characteristics


Compact footprint
Yes
Control panel type
15-inch touch-screen operator control panel
Tank arrangement
Horizontal
Machine logistics
Packable in containers for fast installation and commissioning

Custom Options


Control panel type
15-inch touch-screen operator control panel
Integration possibilities
Xfill version for direct integration with the filler
Pump control
Frequency-controlled pumps
CO2 dosing system
In line proportional dosing with mass flow meter
Piping material
1.4401 stainless steel (AISI316)
Capacity control
Based on level in the carbonation tank
Deaeration option
Double stage with high vacuum principle
