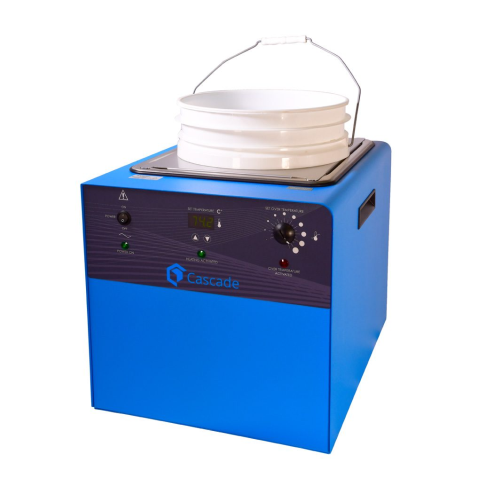

Deep water bucket bath for lab heating applications

Achieve precise temperature control and uniform heating for delicate laboratory samples with this advanced 30L deep water bath, designed to streamline processes in research and extraction environments.

Provides Precise Temperature Control for Laboratory Applications

The Cascade 30L Deep Water Bucket Bath, or CWB30, from Cascade Sciences is a versatile and reliable temperature control solution designed specifically for laboratories. This bath excels with its warm air jacketed design, which prevents hot spots by radiating heat uniformly to the water tank, ensuring an even temperature distribution essential for sensitive processes. It features a unique lid design to minimize spillage and a seamless stainless steel construction that enhances durability and ease of cleaning. Ideal for applications in the chemical, pharmaceutical, and biotech industries, it is widely used for heating chemical reagents, maintaining biomolecular sample integrity, and conducting quality control tests. The digital controls offer precise temperature settings ranging from ambient +5ºC to +80ºC, with stability at 0.1 °C, suiting various laboratory processes. The unit’s compact design, accommodating up to 30 liters with a standard 5-gallon bucket, integrates seamlessly onto any bench-top setup, meeting the needs of manual and digital laboratory operations. Certified for safety and quality, the CWB30 supports compliance with stringent laboratory standards, ensuring reliable performance in temperature-sensitive environments.

Benefits

  • Ensures consistent sample quality with precise temperature control and uniform heating.
  • Minimizes operational disruptions with a no-leak, easy-to-clean design.
  • Reduces energy consumption through efficient warm air jacketed heating.
  • Supports compliance with laboratory safety and quality standards.
  • Integrates seamlessly into bench-top setups, optimizing lab space utilization.

General


Applications
Research and development,Biotechnology,Materials testing,Chemical industry,Temperature-controlled processes,Extraction processes,Quality control,Laboratory applications,Pharmaceuticals
End products
Laboratory test samples,Thermally sensitive materials,Active pharmaceutical ingredients,Botanical extracts,Pharmaceutical tablets,Chemical reagents,Biomolecular samples,Quality assurance samples,Biotechnological cultures,Essential oils
Steps before
Purification,Grinding,Mixing,Preparation
Steps after
Drying,Sterilization,Packing,Cooling
Input ingredients
water,5 gallon bucket
Output ingredients
temperature-controlled water,heated water,condensation
Market info
Precision Extraction Solutions is known for providing innovative, high-quality extraction equipment and solutions for the cannabis industry, specializing in systems that enhance efficiency and safety in extracting cannabinoids and essential oils.

Technical Specifications


Volume
30 L
Exterior Dimensions
406mm x 482mm x 406mm
Interior Dimensions
305mm x 356mm x 279mm
Unit Weight
28 lbs (12.7 kg)
Shipping Weight
39 lbs (17kg)
Operating Temperature Range
Amb +5ºC to +80ºC (41ºF to 176ºF)
Temperature Uniformity – Midrange
0.2 °C
Temperature Stability- Midrange
0.1 °C
Controller Type
Digital
Display Resolution
0.1 °C
Power Voltage,Frequency and Current
110 – 120 volt/ 50/60 Hz/ 7 amps
Max HVAC Load
1883 BTUs/hr

Operating Characteristics


Automation level
Digital
Batch vs. continuous operation
Batch
Cleaning method
Easy-to-Clean
Energy efficiency
Efficient heating system

Material Compatibility


Cleanability
Easy-to-clean design with radius corners
Corrosive resistance (e.g. acids)
Stainless steel construction

Physical Characteristics


Machine footprint
16″W x 19″D x 16″H (406mm x 482mm x 406mm)
Tank shape and size
1.06 cu.ft. (30 L)
Weight
28 lbs (12.7 kg)
Material of construction
Stainless Steel,Cold Roll Steel Exterior

Custom Options


Control panel type
Digital
Integration possibilities
N/A
Recessed Heating Element
Non-contact,prevents burnout
Material Construction
Stainless Steel
Compact footprint
Radius corners for easy cleaning
Lid Design
Unique,directs condensation back into tank
