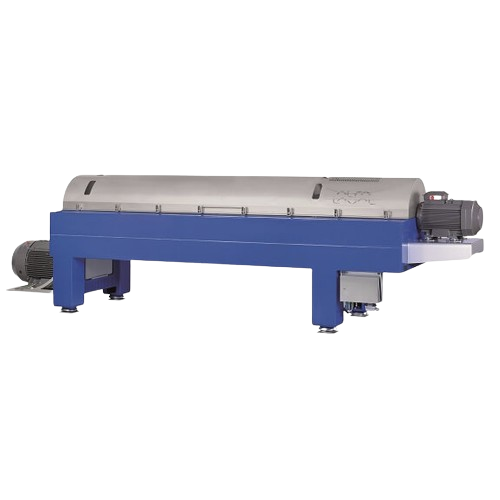

Decanter centrifuge for vegetable oil clarification

Maximize oil recovery and purity with advanced decanter centrifuge technology, effectively separating and clarifying crude and used oils while reducing operational costs and environmental impact.

Separates and Clarifies Oils Efficiently

The PONX and CONX decanter centrifuges from Alfa Laval are essential for optimizing oil recovery and purification in various industries, including edible oil and biodiesel production. Utilizing horizontal, cylindrical solid bowls equipped with screw conveyors, these centrifuges offer efficient separation through both 2-phase and 3-phase operations. With processing temperatures of up to 130°C, they are adept at handling crude seed oil, refined vegetable oil, biodiesel, and purified cooking oil. The automation features ensure minimal manual intervention, using a PLC-controlled system for seamless integration with existing production lines. Constructed from high-quality, corrosion-resistant stainless steel, these units ensure longevity and reliability. Their energy-efficient design, supported by variable-speed motors, minimizes operational costs, while customizable configurations accommodate specific processing needs and compliance with industry standards.

Benefits

  • Enhances oil recovery efficiency with high-speed separation.
  • Lowers operational costs by eliminating the need for consumables.
  • Minimizes contamination risks through fully enclosed operation.
  • Customizable configurations meet specific processing requirements.
  • Energy-saving design reduces power consumption compared to traditional methods.

General


Applications
Kitchen waste,Biodiesel production,Used cooking oils,Edible oils,Seed oils
End products
Crude seed oil,Purified cooking oil,Deodorized edible oil,Recovered cooking oil,Refined vegetable oil,Biodiesel
Steps before
Pressing,Extraction,Sedimentation
Steps after
Further processing,Biodiesel production,Purification,Drying
Input ingredients
pressed seed oils,used cooking oils,sterilized kitchen waste,crude seed oils,suspended solids,feed
Output ingredients
clarified seed oils,purified oils,dry solids,valuable fat/oil fraction,biodiesel,separated liquids
Market info
Alfa Laval is renowned for its expertise in heat transfer, separation, and fluid handling technologies, providing innovative, energy-efficient engineered-to-order solutions for various industries including food, marine, and energy.

Technical Specifications


Clarification Type
2-phase
Purification Type
3-phase
Feed Temperature
Up to 130°C
Recovery Rate
High
Cake Dryness
High
Oil Level
Low (FiDM)
Automation Level
Automated
Wear Protection
Tungsten Carbide
Separation Speed
Variable Differential Speed
Bowl Diameter Range
280mm to 720mm
Drive System
Electric Motor with V-belt
Construction Material
Duplex/Stainless Steels
Decanter Type
PONX (2-phase),CONX (3-phase)
Operational Environment
Fully Enclosed

Operating Characteristics


Working mechanism
Horizontal solid bowl centrifuge
Operation type
Fully enclosed
Automation level
Automated with minimal manual input
Batch vs. continuous operation
Continuous
Energy efficiency
High recovery with low energy consumption
Changeover time
Easy access for components replacement

Material Compatibility


Corrosive resistance (e.g. acids)
Corrosion and acid-resistant duplex/stainless steels

Physical Characteristics


Compact footprint
Yes
Control panel type
Automated/PLC-controlled
Discharge method
Solids outlet through casing
Bowl diameter
280mm to 720mm
Material of Construction
Duplex/stainless steel
Separation type
2-phase / 3-phase
Feed temperature range
Up to 130°C
Wear protection
Tungsten Carbide
Drive system
V-belt transmission

Custom Options


Temperature Handling
Up to 130°C
Control Panel Type
Automated with VFD for variable speed control
Material Construction
Corrosion and acid-resistant duplex/stainless steels
Wear Protection
Tungsten Carbide
Seal Material
Viton/FKM
FDA certification available
