Cutting mill for dry sample comminution

Achieve precise comminution of dry materials, from plastics to dried plants, with efficient high-speed cutting—ideal for rapid sample preparation and reproducible results in R&D and quality control settings.

Processes and Reduces Materials with Precision

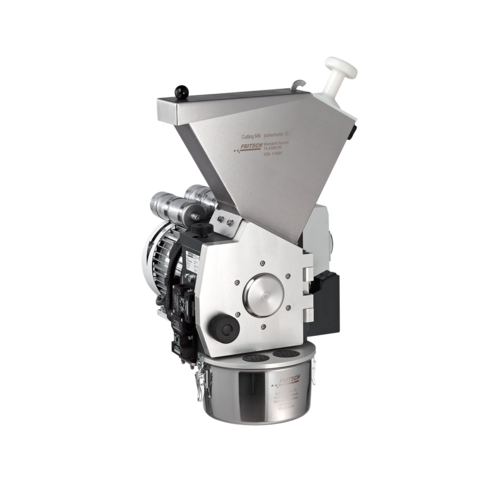

The Cutting Mill PULVERISETTE 15 from FRITSCH is engineered to streamline sample preparation with precision in laboratories and industrial settings. It employs a high-speed rotor with double bearing support and adjustable cutting gaps for optimal material comminution. This results in rapid and reproducible size reduction of plastics, textiles, and agricultural materials to produce uniform granules or powders essential for quality control and analysis. Capable of processing up to 50 liters per hour with a maximum feed size of 70 x 70 mm, it integrates seamlessly into any processing line. The equipment is distinguished by its unique grinding chamber geometry that minimizes dead space and ensures blockage-free operations enhanced by an efficient airflow design. Tailored to meet diverse application needs, it offers a range of accessory options including various funnels, rotors, and sieve inserts. Its robust design and easy-cleaning features make it suitable for continuous and high-speed operations across industries such as chemistry, food processing, and environmental analysis, providing durable performance with extended rotor knife life.

Benefits

  • Enhances precision in sample preparation, ensuring consistent particle sizes for reliable analysis.
  • Supports high-volume processing with a throughput of up to 50 liters per hour, minimizing operational delays.
  • Minimizes maintenance efforts with an easy-to-clean design, reducing equipment downtime.
  • Extends rotor life with double-edged, reversible knives, optimizing replacement frequency.
  • Customizable with a variety of accessories to tailor the unit for specific material and size requirements.

General


Applications
Chemistry,Straw,Herbal teas,Construction materials,Rohs,Hay,Dried plants,Foodstuffs,Leather,Environment,Nuts,Plastics,Agriculture,Forestry,Textiles
End products
Animal feed,Polyethylene pellets,Wood chips,Herbal tea blends,Polyester yarn,Cement powder,Chemical reagents,Nut flour,Leather samples,Dried fruit powders,Solder alloys,Straw mulch,Compost material,Hay bales
Steps before
Sample preparation,Material selection,Preliminary cutting,Weighing,Sorting
Steps after
Chemical analysis,Sieving,Quality control,Sample testing,Data analysis
Input ingredients
dry sample materials,soft to medium-hard consistency materials,fibrous materials,cellulosic materials,plastic materials,textiles,agricultural materials,forestry materials,construction materials,chemicals,food stuffs,straw,hay,dried plants,herbal teas,leather,nuts
Output ingredients
comminuted materials,uniformly reduced samples,samples with defined fineness,ground materials
Market info
Fritsch is renowned for manufacturing high-quality, engineered-to-order laboratory instruments for sample preparation and particle sizing in research and industrial laboratories, with a strong reputation for precision, innovation, and reliability.

Technical Specifications


Rotor speed
Up to 3400 rpm
Max. feed size
70 x 70 mm
Throughput quantity
Up to 50 l/h
Sieve insert sizes
0.25 – 20 mm
Collecting vessel options
3.5 litres or 60 litres
Cutting gap
Externally adjustable
Service life
Rotor knives can be turned (double cutting edges)
Airflow
Optimized for fast size reduction

Operating Characteristics


Working Mechanism
Scissors cutting principle
Integrated Steps
Sample comminution and air throughput
Batch vs. Continuous Operation
Batch
Cleaning Method
Manual,easy FRITSCH cleaning
Automation Level
Manual

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Easy Cleaning
Yes


RoHS
Compliant
ATEX certification
Possibly Compliant
FDA materials
Possibly Compliant

Physical Characteristics


Collecting vessel
3.5 litres or 60 litres
Feed size
Max. 70 x 70 mm
Cutting gap adjustment
Externally adjustable

Custom Options


Control panel type
External adjustment
Rotor knife configurability
Reversible,double service life
Funnel type
Standard / Bulk solids / Stainless steel
Collection vessel size
3.5 litres / 60 litres
Sieve insert size
0.25 – 20 mm,other sizes available
Stand type
Optional support stand
