Customizable pilot-industrial fermenters bioreactors

Designed for precision fermentation, these fermenters and bioreactors offer scalable solutions for developing high-value biological products, from antibiotics to biofuels, by integrating advanced mixing and control systems that streamline production and enhance yield quality.

Customizes and Controls Fermentation Processes

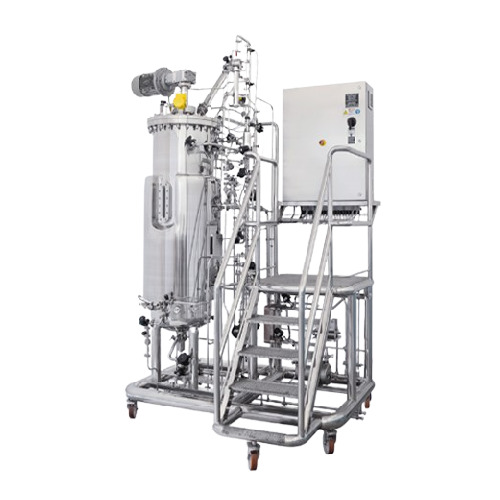

The Solaris S-I Series fermenters and bioreactors offer a customizable solution engineered for diverse fermentation needs, from pilot to industrial scale. These systems are available in sizes ranging from 5 to 30,000 liters and designed to support complex processes such as microbial and cell cultures. The S-I Series stands out with its advanced automation via innovative SCADA software LEONARDO 3.0, offering remote monitoring and control for enhanced process management. These units are ideal for applications in pharmaceuticals, biotech, and more, producing high-value end products such as antibiotics, hormones, and biofuels. Constructed from top-quality stainless steel, they ensure compliance with cGMP and AD2000 HP0 certifications, suitable for demanding production environments. Featuring flexible agitation options, gas mixing strategies, and thermoregulation, they integrate seamlessly into existing lines. With comprehensive measurement capabilities and CIP/SIP functionality, they guarantee product quality while minimizing downtime. Tailored to your specifications, Solaris offers engineering support to ensure the S-I Series fits your precise production demands.

Benefits

  • Enhances production efficiency with tailored scale-up capabilities from pilot to industrial operations.
  • Optimizes process control with remote monitoring and data management, reducing operational intervention.
  • Ensures high product quality and consistency through precise environmental and process parameter maintenance.
  • Facilitates seamless integration and reduces cleaning downtime with CIP and SIP features.
  • Complies with international quality standards, ensuring safe and reliable operation in pharmaceutical and biotech industries.

General


Applications
Antibiotics,Biopreservatives,Fermented drinks,Olefins,Hormones,Veterinary vaccines,Active ingredients,Cosmeceuticals,Bioactive ingredients,Reagents,Plant-based substitutes,Supplements,Bioplastics,Biopolymers,Biofertilizers,Additives,Biofuels,Human vaccines,Hyaluronic acid,Monoclonal antibodies,Animal feeding,Biopesticides,Apis,Flavors
End products
Omega-3 fatty acids,Bacillus thuringiensis,Ibuprofen,Erythromycin,Canine parvovirus vaccine,Insulin,Polylactic acid,Vanillin,Fumaric acid,Penicillin,Ethylene,Ascorbic acid,Nisin,Fish meal,Trastuzumab,Azospirillum,Coenzyme q10 cream,Sodium hyaluronate,Kombucha,Retinol,Ethanol,Measles vaccine,Propylene glycol,Polyhydroxyalkanoates,Seitan
Steps before
Mixing,Pre-fermentation preparation,Raw material selection
Steps after
Centrifugation,Filtration,Purification
Input ingredients
raw materials,biomass,air,O2,CO2,N2,feed ingredients
Output ingredients
antibiotics,active ingredients,bio-preservatives,flavors,bio pesticides,biopolymers,biofuels,biodiesel,bioethanol
Market info
Solaris Biotech is known for manufacturing specialized engineered-to-order bioprocessing equipment, including fermenters and bioreactors, with a strong reputation for innovation, quality, and customization capabilities in the biotechnology and pharmaceutical markets.

Technical Specifications


Capacity
5–30,000 L
Material
Top quality stainless steel
Insulation
Insulated vessels
Agitation
Top-bottom,single or double mechanical seal,magnetic stirrer
Thermoregulation loops
From basic to completely closed
Process Type
Batch,fed-batch,continuous
Gas mixing strategies
Rotameters,TMFCs,solenoid valves
Gas Types
Air,O2,CO2,N2
Measurement and control
Temperature,pH,dO2,dCO2,Redox,Antifoam,Level,Conductivity,Weight,Cell Density
Sensors
Modbus digital sensors
Pumps
Selectable peristaltic pumps
Certifications
cGMP,AD2000 HP0
Integration
Tanks,CIP/SIP systems,centrifuges,filtration systems

Operating Characteristics


Batch vs. continuous operation
Batch / Continuous / Fed-batch
Automation level
Highly Automated / SCADA
CIP/SIP
Customizable SIP and CIP
Gas mixing strategy
Selectable number of rotameters,TMFCs,solenoid valves
Thermoregulation
Basic to completely closed loops
Agitation type
Top-bottom,magnetic stirrer,mechanical seal with lubrication loop

Material Compatibility


Stainless Steel Construction
Top quality stainless steel
Insulation
Insulated vessels
Different finishing options
Mirror polish,scotch brite,electropolishing

Physical Characteristics


Tank Size
5 – 30,000 L
Material
Top quality stainless steel
Shape
Customized H/D ratios
Surface Finish
Mirror polish,scotch brite,electropolishing
Agitation Type
Top-bottom,single or double mechanical seal,magnetic stirrer
Thermoregulation Loops
Basic to completely closed
Gas Mixing Strategies
Rotameters,TMFCs,solenoid valves for air,O₂,CO₂,N₂
Measurement and Control Options
Temperature,pH,dO₂,dCO₂,redox,antifoam,level,conductivity,weight,cell density
Vessel Insulation
Insulated with passivation option
Integration Capability
Tanks,CIP/SIP systems,centrifuges,filtration systems

Custom Options


Agitation Types
Top-bottom,single/double mechanical seal,magnetic stirrer
Thermoregulation Loops
Basic to completely closed
Gas Mixing Strategies
Selectable number of rotameters,TMFCs,solenoid valves
Measurement,Control Sensors
Modbus digital sensors
Process Flexibility
Batch,fed-batch,continuous
Cell Culture Configurations
Microbial (aerobic,anaerobic),cell cultures
