Curved conveyor for logistics and packaging

Efficiently tackle space constraints in your production line with a flexible curved conveyor system designed to handle a variety of solid products, ensuring seamless movement and reduced interventions in logistics and packaging operations.

Conveys and Elevates Parcels, Bottles, and Pouches

The AmbaVeyor Curved Conveyor System from AmbaFlex is designed to streamline logistics and packaging operations, offering a unique combination of curved, belt, and spiral conveyor configurations. This system excels in transporting parcels, milk bottles, and snack pouches, optimizing space with its built-in curves and inclines. Handling loads up to 50 kg/m, it significantly reduces the need for multiple drives by 30%, enhancing efficiency and lowering total cost of ownership. With its simple, durable design, the AmbaVeyor system ensures seamless integration into high-speed operations, allowing for sophisticated automation and remote control capabilities. Pre-assembled for ease of installation, it supports a wide range of applications from printing to bottling, providing reliable, continuous operation and flexible customization to meet specific industry needs.

Benefits

  • Minimizes operational footprint by integrating curves and inclines, optimizing limited space.
  • Reduces energy consumption by decreasing the number of required drives by 30%.
  • Enhances productivity with high load capacity and continuous high-speed operation.
  • Simplifies installation with pre-assembled units, reducing setup time.
  • Allows for easy customization to fit diverse industrial applications.

General


Applications
Boxes,Print,Packaging,Bottling,Crates,Pouches,Logistics
End products
Parcels,Soda cans,Cartons,Magazines,Milk bottles,Newspapers,Beverage crates,Snack pouches,Shipping boxes,Brochures
Steps before
Material Handling,Sorting,Loading
Steps after
Accumulation,Packing,Storage
Input ingredients
crates,boxes,pouches
Output ingredients
crates,boxes,pouches
Market info
AmbaFlex is renowned for its expertise in manufacturing innovative spiral conveyor solutions, specializing in dynamic material handling systems across various industries, enhancing efficiency and operational flow with customizable, space-saving designs.

Technical Specifications


Load Capacity
Up to 50 kg/m
Belt Width
300 mm / 400 mm / 600 mm
Incline Capability
Yes
Drive Reduction
Reduces drives by 30%
Total Cost of Ownership
Low TCO
Automation
Internet configuration and online ordering

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
Changeover time
N/A
CIP/SIP
CIP 121°C / SIP 135°C
Cleaning method
CIP / Manual
Energy efficiency
0.5–2 kWh/kg moisture

Product type Characteristics


Fit for narrow spaces
Yes,quick fit in challenging areas

Physical Characteristics


Conveyor system type
Curved solution
Belt width
300 mm / 12",400 mm / 16",600 mm / 24"
Conveyor track components
Curves,straights,inclines
Load capacity
Up to 50 kg/meter

Custom Options


Belt width
300 mm / 12" to 600 mm / 24"
Configurations

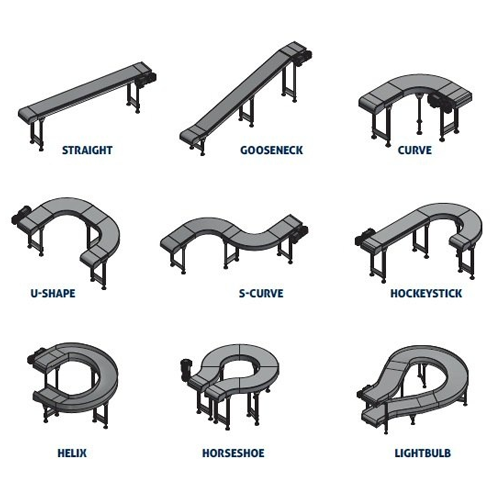

AF Straight,AF Curve,AF S-Curve,AF U-Shape,AF Gooseneck,AF Helix,AF Lightbulb,AF Horseshoe,AF Hockey Stick
Material usage
Dry use
Pre-assembly
Pre-assembled and tested
Integration possibilities
Internet configuration and online ordering
