Cryogenic tunnel freezer for continuous cooling

Achieve precise and efficient cryogenic freezing for continuous production lines with this advanced tunnel freezer, designed to maintain optimal product quality while minimizing energy consumption.

Continuously Freezes and Cools Solid Foods

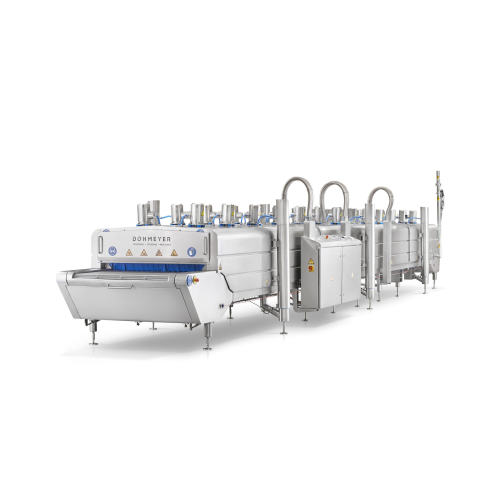

The Linear Tunnel Freezer – Top Lifting by Dohmeyer is engineered for efficient cryogenic processing, specifically for the fast-paced food industry. This top-lifting tunnel uses a conveyor system to facilitate continuous freezing and cooling of products such as frozen pizzas, seafood, and desserts. Utilizing liquefied carbon dioxide or nitrogen, it achieves rapid temperature reduction through the latent heat of evaporation. To ensure uniform cooling, turbulence fans disseminate cryogenic gases effectively across product surfaces, while exhaust fans safely remove residual gases.

With robust 140 mm thermal insulation, Dohmeyer’s tunnel freezers are highly effective in reducing energy consumption and ensuring process consistency. The equipment can be tailored to fit specific requirements, making it versatile for various applications from freezing to crust freezing. Automated PLC controls and remote monitoring support seamless integration into existing production lines, enhancing operational efficiency. Available with options for stainless steel construction, it meets industry standards for hygiene and durability, ensuring long-lasting performance.

Benefits

  • Enhances production efficiency with continuous processing capability.
  • Ensures high-quality product freezing with uniform cryogenic gas distribution.
  • Lowers operational costs through reduced energy consumption and advanced insulation.
  • Easily integrates into existing lines with customizable design options.
  • Complies with food safety standards, supporting a hygienic production environment.

General


Applications
Food industry,Cryogenic processing,Continuous cooling products,Frozen foods,Crust frozen products
End products
Seafood,Frozen desserts,Prepared frozen meals,Frozen vegetables,Frozen fruits,Chilled ready-to-eat meals,Frozen pizzas,Ice cream,Crust frozen meats,Frozen bakery products
Steps before
Preparation,Sorting,Pre-cooling,Batching
Steps after
Packaging,Storage,Distribution,Quality Control
Input ingredients
product flow,food products,materials for freezing,materials for cooling
Output ingredients
cooled products,frozen products,crust-frozen products
Market info
Dohmeyer is renowned for manufacturing advanced cryogenic equipment, specializing in ultra-low temperature applications for various industries, including pharmaceuticals and food processing. They are recognized for their innovation, quality, and customer-focused engineered-to-order solutions.

Technical Specifications


Insulation Thickness
140 mm
Cooling Medium
LCO2 / LIN
Process Type
Continuous
Automation
Controlled gas injection

Operating Characteristics


Working mechanism
Cryogenic freezing with LCO2 or LIN
Integrated steps
Conveyor belt movement
Batch vs continuous operation
Continuous
Turbulence control
Fans for gas distribution
Exhaust system
Residual gas extraction
Temperature control
Controlled cryogenic liquid injection
Customization possibility
Tailor-made designs available

Physical Characteristics


Footprint
Varies (customizable)
Insulation Thickness
140 mm
Belt Type
Conveyor
Top Lifting Design
Yes
Tunnel Length
Customizable
Construction Material
Stainless Steel
Loading/Unloading Method
Conveyor Belt

Custom Options


Design Flexibility
Custom dimensions
Insulation Thickness
140 mm high-performance
Tunnel Material
Stainless steel options
Cooling Method
LCO2 / LIN
Temperature Control
Adjustable settings
Integration Capabilities
Inline with existing systems
Conveyor Speed Control
Variable
Fan Turbulence Control
Adjustable
