Cryogenic freezing for small fragile foods

Quickly freeze delicate food items with precision using advanced cryogenic immersion, ensuring individual pieces remain separate and intact.

Freezes and Processes Delicate Foods Efficiently

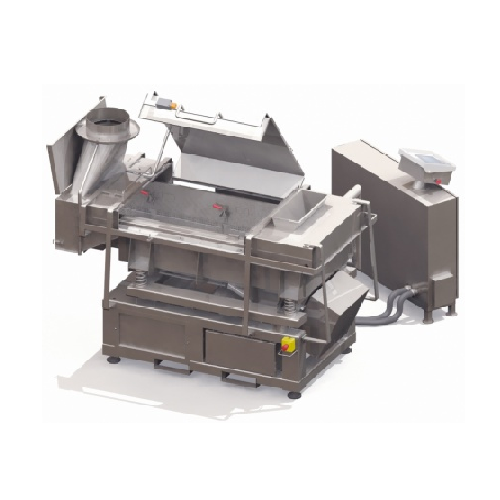

The Cryo Immersion Unit – CFV from The SERAP Group, designed in partnership with AIR LIQUIDE, revolutionizes the freezing process for fragile foods in the frozen food industry. Utilizing liquid nitrogen in a vibrating trough, it performs continuous crust-freezing, ensuring that products like grated cheese, diced fruits, and minced meats achieve individual quick freezing (IQF) without sticking. With a processing capacity ranging from 300 to 2,000 kg/hour and a compact footprint of under 3m², it integrates seamlessly into your production line. Built with AISI 304 stainless steel to adhere to European standards, this unit guarantees durability and corrosion resistance. The CFV’s design supports easy maintenance and cleaning, enhancing operational efficiency while reducing downtime. Perfect for food processing companies, ready-to-eat meal manufacturers, and meat processing facilities, the Cryo Immersion Unit – CFV promises precision in every batch.

Benefits

  • Enhances production efficiency with continuous, high-capacity freezing.
  • Ensures product integrity with non-stick Individual Quick Freezing (IQF).
  • Saves space with a compact design under 3m².
  • Resists corrosion with AISI 304 stainless steel construction.
  • Minimizes downtime with easy cleaning and maintenance features.

General


Applications
Meat products,Minced meat,Chopped ham,Grated cheese,Fruits,Vegetables,Frozen foods,Ready-to-eat meals,Rice,Sliced ham,Diced ham
End products
Frozen diced mango,Ready-to-eat pasta dishes,Frozen beef meatballs,Frozen diced carrots,Frozen cooked rice,Frozen grated mozzarella,Frozen vegetable medley,Chopped ham salad topping,Pre-sliced deli ham packs,Frozen beef mince,Frozen diced ham cubes
Steps before
Preparation,Slicing,Dicing,Chopping
Steps after
Packing,Storage,Labeling,Distribution
Input ingredients
small fragile foods,rice,ready-to-eat frozen foods,individual foods,grated cheese,fruit,vegetables,meat granules,lardons,minced meat,diced ham,chopped ham,sliced ham
Output ingredients
frozen small fragile foods,frozen rice,frozen ready-to-eat foods,individual quick frozen (IQF) foods,frozen grated cheese,frozen fruit,frozen vegetables,frozen meat granules,frozen lardons,frozen minced meat,frozen diced ham,frozen chopped ham,frozen sliced ham
Market info

Technical Specifications


Material
AISI 304 stainless steel
Footprint
Under 3m²
Capacity
300–2000 kg/hour
Freezing medium
Liquid nitrogen
Operation type
Continuous
Freezing method
Immersion

Operating Characteristics


Working mechanism
Immersion in liquid nitrogen
Batch vs. continuous operation
Continuous
Automation level
PLC-controlled
Cleaning method
CIP
Energy efficiency
Dependent on product throughput

Material Compatibility


Corrosive resistance (e.g. acids)
AISI 304 stainless steel

Product type Characteristics


Individual Quick Freezing (IQF)
Yes

Physical Characteristics


Machine footprint
Under 3m²
Material
AISI 304 stainless steel
Freezing method
Immersion in liquid nitrogen
Design
Vibrating trough

Custom Options


Footprint
under 3m²
Processing capacity
300 to 2000 kg/hour
