Controlled rate freezer for biological samples

Ensure the integrity of biological samples with precise temperature control, eliminating the need for hazardous refrigerants, while maintaining consistent conditions for cryopreservation.

Controls Freezing Rate for Biological Preservation

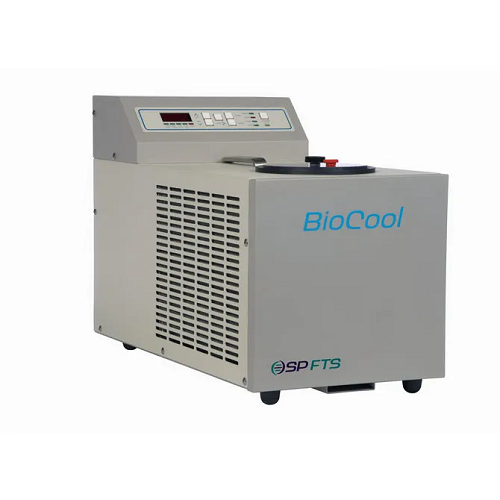

The FTS BioCool™ Controlled Rate Freezer from Scientific Products is designed to address the critical need for accurate cryopreservation across life sciences, pharmaceutical, and biotechnology industries. It employs mechanical refrigeration to maintain precise temperature control, eliminating the risks associated with liquid nitrogen. This freezer is ideal for applications involving biological samples such as embryos, tissues, and blood, supporting safe and efficient cryopreservation processes. With a temperature range from -40°C to +30°C and a 1.5 L bath capacity, it allows for flexible batch operations. User-specified ramp control with up to ten segments ensures tailored temperature profiles, while a built-in magnetic stirrer and vortex breaker maintain thermal consistency. Designed for bench-top use, it integrates seamlessly into laboratory and R&D environments, offering a customizable approach with container holder racks available to suit specific sample requirements.

Benefits

  • Ensures sample integrity by eliminating the need for hazardous liquid nitrogen.
  • Provides tailored cryopreservation processes with user-defined temperature control segments.
  • Reduces operating costs with energy-efficient mechanical refrigeration.
  • Enhances workflow flexibility with customizable container options.
  • Facilitates consistent results using integrated temperature stabilization features.

General


Applications
Embryos,Biological tissue,Blood,Biological materials
End products
Cryopreserved blood samples,Cryopreserved embryos,Preserved tissue samples
Steps before
Sample Preparation,Loading Biological Materials,Pre-Freezing Assessment
Steps after
Tissue Crystallization,Storage in Liquid Nitrogen,Analysis and Quality Control
Input ingredients
biological materials,embryos,tissue,blood
Output ingredients
frozen biological materials,frozen embryos,frozen tissue,frozen blood
Market info

Technical Specifications


Temperature Range
-40°C to +30°C
Bath Capacity
1.5 L
Cooling Medium
Mechanical Refrigeration
Automation
User-specified with up to ten distinct segments
Built-in Magnetic Stirrer
Yes
Vortex Breaker
Included
Heat Load Handling
Larger than liquid nitrogen counterparts

Operating Characteristics


Cooling mechanism
Mechanical refrigeration
Temperature range
-40°C to +30°C
Temperature control
Precise,user-specified ramp control with up to ten segments
Sample capacity
1.5 L bath
Consistency mechanism
Built-in magnetic stirrer and vortex breaker
Cooling medium
Liquid medium
Automation level
Manual / User-Specified
Sample compatibility
Biological materials such as embryos,tissue,and blood
Nitrogen usage
Minimal,small Dewar for tissue crystallization

Material Compatibility


Biological compatibility
Yes
Cleanability
Easy to clean
Corrosive resistance (e.g. acids)
High

Product type Characteristics


Biological material compatibility
Embryos,tissue,blood

Physical Characteristics


Discharge method
Liquid bath
Control panel type
User-specified ramp control

Custom Options


Built-in magnetic stirrer
Yes
Vortex breaker
Yes
Selection of container holder racks
Customizable
