Continuous drying for cohesive and non-cohesive pastes

Transform high-viscosity liquids and pastes into fine, flowable powders efficiently, ensuring precise particle size control and energy cost savings in continuous production lines.

Dries and Disintegrates High-Viscosity Products

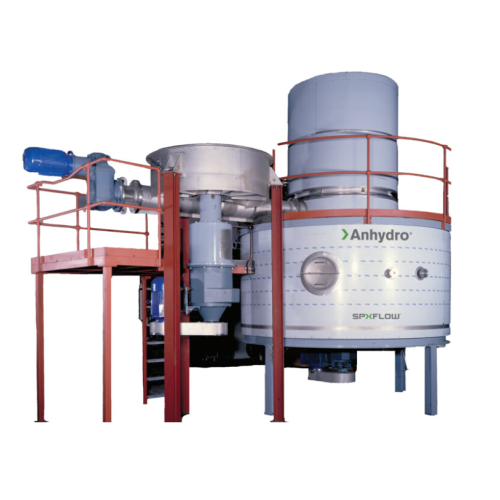

The Anhydro Spin Flash Dryer is designed for efficient drying of cohesive pastes and high-viscosity liquids. It features a patented drying chamber that fluidizes particles using hot air, rapidly disintegrating wet lumps. Ideal for agrochemicals, ceramics, and pharmaceuticals, it facilitates powder production with precise size control. The dryer processes up to 40 tons per hour, integrating seamlessly into automated production lines with its PLC-controlled operation. Available in standard stainless steel, with options for Hastelloy, it ensures compatibility with corrosive materials. Its high-pressure, shock-resistant chamber provides safe drying of flammable products, meeting FDA and cGMP standards for broad industry applications.

Benefits

  • Minimizes energy costs with high drying efficiency.
  • Reduces manual labor through continuous, automated processing.
  • Ensures operator safety with pressure shock-resistant design.
  • Produces finely controlled particle sizes, eliminating the need for milling.
  • Complies with industry standards for pharmaceutical and food applications.

General


Applications
Ceramics,Food and feed products,Agrochemicals,Organic chemicals,Waste products,Pigments and dyestuffs,Inorganic chemicals,Pharmaceuticals
End products
Protein powders,Treated sludge,Antibiotics,Textile dyes,Porcelain tiles,Recycled polymers,Calcium phosphate,Paint pigments,Sodium carbonate,Herbicides,Fish meal,Fertilizers
Steps before
Purification,Grinding,Emulsification,Filtration
Steps after
Bagging,Powder Storage,Coating,Packing
Input ingredients
cohesive pastes,non-cohesive pastes,filter cakes,high-viscosity liquids,wet lumps,fluid feed
Output ingredients
fine particles,powder,very fine powder
Market info
SPX Flow is renowned for its expertise in manufacturing industrial ETO equipment, specializing in fluid handling and processing solutions. They are recognized for innovation, reliability, and providing efficient solutions across diverse industries, including food, beverage, and industrial markets.

Technical Specifications


Capacity
1 kg/h to 40 tons/h
Drying chamber size
200 to 2500 mm diameter
Drying integration
Continuous process
Air inlet temperature
Up to 500°C
Material of construction
Stainless steel,Hastelloy
Process control
Fully automated control
Pressure resistance
High-pressure,shock-resistant
Automation
PLC-controlled
Particle size control
Controlled particle size
Energy efficiency
Low energy costs
Drying efficiency
High drying efficiency
Powder collection
Bag filter

Operating Characteristics


Batch vs. continuous operation
Continuous
Automation level
Fully automatic
Drying mechanism
Spin Flash Drying
Cleaning method
CIP / Manual
Changeover time
Minimized
Energy efficiency
High,due to low energy costs

Material Compatibility


Cleanability
Easy to dismantle for cleaning
Abrasion resistance
Withstands high-velocity air flow
Corrosive resistance (e.g. acids)
Stainless steel,Hastelloy options
Density/particle size
Fine powder production

Product type Characteristics


Agglomeration risk
Reduced by patented process


GMP Compliance
cGMP compliant

Physical Characteristics


Feed Method
Variable Speed Feed Screw / Pump
Discharge Method
Bag Filter
Control Panel Type
State-of-the-art Automation Systems
Compact Footprint
Minimum Space Requirements

Custom Options


Inverted cone design
Yes
