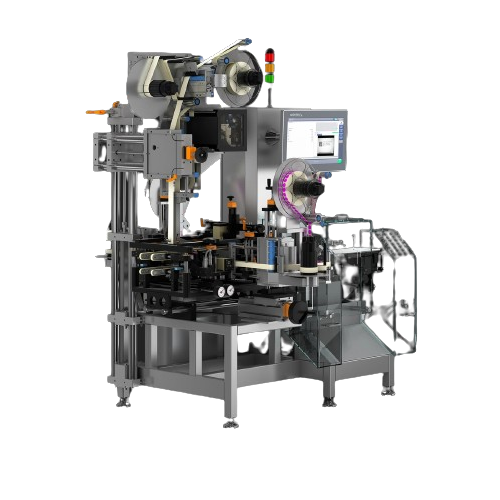

Compact serialisation system with tamper-evident and vignette labeler

Streamline your packaging operations with a high-speed system that seamlessly integrates serialisation, labeling, and weighing, ensuring product security and compliance without a hitch.

Serialises and Labels Products with Precision

The TQS-HC-A by Wipotec is a versatile serialisation and labeling system engineered to seamlessly integrate into high-speed production lines within the pharmaceutical, food, and cosmetics sectors. This compact unit excels in combining serialisation, tamper-evident sealing, and vignette labeling in one streamlined operation, offering a space-saving solution for tight production environments.

Employing a unified interface, the TQS-HC-A facilitates effortless control over five major functions: serialisation, tamper-evident sealing, vignette labeling, additive label printing, and weighing. This centralized control minimizes installation time and increases operational fluidity. With processing capabilities reaching up to 600 products per minute, it ensures high throughput without compromising precision.

The TQS-HC-A is compatible with a variety of end-products, such as blister-packed tablets, lipstick, ready-to-eat meals, and cement bags. Its modular design supports exceptional integration flexibility, making it adaptable to specific production needs.

Constructed with high-tech Wipotec weigh cells, the machine guarantees accurate weight measurement and quick product ejection to handle defective products efficiently. The system is designed for easy cleaning and maintenance, with tool-free format changes to support rapid operations adjustments.

Configurable camera and print head positioning offer customizability for varied production scenarios, backed by IQ/OQ validation packets for easy compliance with industry standards. Additionally, its robust build supports various material options tailored to industry-specific demands, ensuring long-term reliability and performance.

Benefits

  • Enhances production efficiency with integrated serialisation, sealing, and labeling functions in a single unit.
  • Achieves high throughput of up to 600 products per minute, minimizing bottlenecks.
  • Reduces installation footprint with its compact design, ideal for constrained production spaces.
  • Facilitates rapid operator training and minimal errors through a centralized control interface.
  • Ensures quick product changeovers with tool-free adjustments, maximizing operational uptime.

General


Applications
Food,Aerosol products,Technical products,Mail,Building materials,Chemical products,Cosmetics,Machinery,Pharmaceutical products,Minerals,Logistics
End products
Limestone,Parcels,Shipping packages,Cement bags,Circuit boards,Blister-packed tablets,Pesticides,Spray paint cans,Drilling equipment,Ready-to-eat meals,Lipstick
Steps before
Label Printing,Product Coding,Weight Measurement
Steps after
Packing,Quality Assurance,Shipping
Input ingredients
products for serialization,labels for printing,items for weighing
Output ingredients
serialized products,products with tamper-evident seals,products with vignette labels,products with accurate weight,ejected faulty products
Market info
Wipotec is renowned for its precision weighing technology and high-speed checkweighers used in various industries, including pharmaceuticals and food. They are recognized for their innovation and high-quality engineered-to-order solutions in weight measurement and inspection systems.

Technical Specifications


Functions
Serialisation,Tamper-Evident seal,Vignette labeler,Additive label printing,Weighing
Integration Flexibility
Modular design
Throughput Rate
Up to 600 pcs/min (300 pcs/min standard)
Control Screen
15" touchscreen display,19" optional
Operation Interface
Intuitive control menu
Format Change
Tool free
Precision Weighing
High-tech Weigh Cells from Wipotec
Ejection System
Separate lockable container for faulty coding,second system for faulty weight
Configuration Speed
Fastest configuration with ConfigureFast
Printing Method
In-Line Thermo Transfer Printing of Labels
Validation Documents
IQ/OQ,FDS,RA,TM (optional)

Operating Characteristics


Integrated functions
Serialisation,Tamper-Evident seal,Vignette labeler,Additive label printing,Weighing
Automation level
Central interface with single software control
Batch vs. continuous operation
Inline Continuous
Intuitive operation
Single interface for all components
System integration
Space-saver design for tight production environments

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Labeling type
Tamper-Evident,Vignette
Space-saver
Easily integrated in tight environments
Multi-functionality
Five functions in one unit

Physical Characteristics


Machine footprint
Compact
Discharge method
Lockable container ejection
Control panel type
15" touchscreen display (19" optional)

Custom Options


Integration possibilities
Modular design for maximal integration flexibility
Control panel type
Large 15" touchscreen display (19" optional)
Interface
Intuitive single software interface for all components
Format change
Tool-free format change
