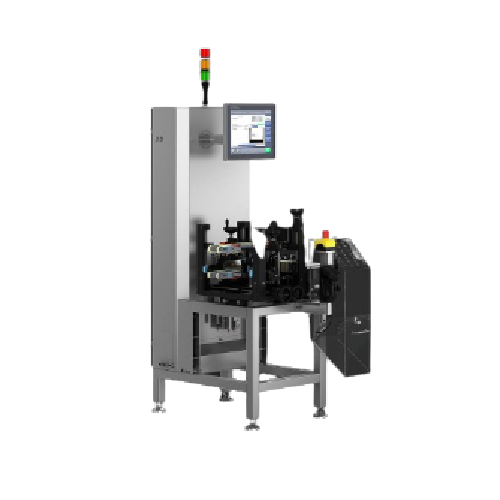

Compact serialisation solution for cartons

Optimize your packaging line with a versatile serialisation solution designed to ensure precise marking and coding of cartons, enhancing product traceability and compliance with industry standards. Effortlessly integrate this space-saving unit into existing production setups for seamless operations and reduced downtime.

Serialises, Prints, and Inspects Cartons

The TQS-SP from Wipotec is designed to enhance the efficiency and accuracy of serialisation in carton packaging lines. With its user-friendly ConfigureFast system, it automates the printing and inspection processes, ensuring precise code application on individual cartons for industries like pharmaceuticals, cosmetics, and food. The TQS-SP utilizes a double guided top/bottom belt conveyor for stable product transport and is capable of rapid format changes without tools. It processes up to 600 cartons per minute, facilitating high-speed operations. The system is easily integrated into existing lines or used as a standalone unit, with manual or automated product feeding. Constructed for reliable operation, the TQS-SP is equipped with a flexible print head and camera positioning, catering to diverse packaging requirements. Compliance with industry standards is supported through optional validation packets, including IQ/OQ documentation.

Benefits

  • Maximizes throughput up to 600 cartons per minute, reducing bottlenecks in production.
  • Streamlines compliance with regulatory standards through precise and reliable serialisation.
  • Saves operational costs by integrating into current packaging lines without requiring extensive modifications.
  • Enhances flexibility with tool-free format changes for various carton sizes and configurations.
  • Simplifies operation with a single user interface for comprehensive control and monitoring.

General


Applications
Food,Chemicals,Technical products,Mail,Cosmetics,Aerosol,Machinery,Building and mineral compounds,Logistics,Pharmaceuticals
End products
Packed minerals,Individual cartons of medicine,Machine parts packs,Cement bags,Detergent boxes,Packaged electronics,Packaged snacks,Mail parcels,Boxed skincare products,Aerosol cans,Logistics packages
Steps before
Cartoning,Manual supply
Steps after
Packing,Labeling,Verification
Input ingredients
folding boxes,cartons,print data
Output ingredients
serialised cartons,printed codes on folding boxes
Market info
Wipotec is renowned for its precision weighing technology and high-speed checkweighers used in various industries, including pharmaceuticals and food. They are recognized for their innovation and high-quality engineered-to-order solutions in weight measurement and inspection systems.

Technical Specifications


Speed
Up to 600 pcs/min
Standard Speed
300 pcs/min
Display
15” display with touchscreen (optional 19”)
Configuration
Fastest configuration with ConfigureFast
Print Head / Camera Position
Flexible mounting position
Format Change
Tool free format change

Operating Characteristics


Automation level
Manual / PLC
Batch vs. continuous operation
Inline Continuous
Changeover time
Tool-free format change
Cleaning method
Manual
Energy efficiency
High throughput rate
Space-saving design
Compact footprint

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


IQ/OQ,FDS,RA,TM validation documentation
Optional

Physical Characteristics


Machine footprint
Compact / Space-saving design
Conveyor type
Double guided top/bottom belt
Carton format adjustment
Three-dimensional adjustable
Display size
15” touchscreen (19” optional)
Mounting method
Flexible print head/camera position
Unit type
Mobile stand-alone or integrated

Custom Options


Control panel type
Large 15” display with touchscreen (19” optional)
Integration possibilities
Automated product feed or mobile stand-alone unit
Format change
Tool free format change
Print head / camera mounting position
Flexible
Line network integration
Retrofitted into existing packaging line
Conveyor adjustability
Adjustable in three dimensions
