Coffee extractor for optimal flavor preservation

Unlock the potential of your extracts with a continuous system that ensures aroma-rich fractions are meticulously preserved, enhancing the quality and effectiveness of your end products.

Extracts Aromas and Actives from Solids Continuously

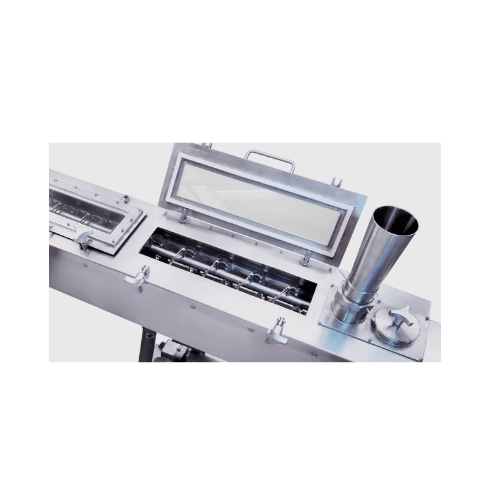

The CONTEX Extractor from GEA is designed to solve extraction challenges in the health, herbal, and beverage industries. Featuring true continuous counter-current extraction, this helix extractor efficiently separates aromatic and active components under atmospheric pressure and low temperatures—ideal for producing high-quality herbal teas, coffee concentrates, and nutraceuticals. With a throughput of up to 1000 kg/h, the CONTEX’s dual counter-rotating helicoidal screws ensure optimal residence time for solids, while independently adjustable liquid flow maintains optimal extract concentration. Built in corrosion-resistant stainless steel, it is compatible with demanding environments and features self-cleaning filters for minimal maintenance. Integrated automation allows seamless production line integration, enhancing processing efficiency and consistency for health product manufacturers.

Benefits

  • Maximizes extraction efficiency of aromatic compounds with true continuous counter-current technology.
  • Ensures product quality by operating at low temperatures to preserve heat-sensitive ingredients.
  • Increases operational productivity with automatic control of residence time and liquid flow.
  • Minimizes maintenance requirements through self-cleaning filter design.
  • Adapts to corrosive environments with durable stainless steel construction.

General


Applications
Health products,Herbal products,Coffee extracts,Nutraceuticals
End products
Herbal teas,Coffee aroma extracts,Nutraceutical capsules,Coffee concentrate,Herbal tinctures,Herbal extracts,Essential oils
Steps before
Grinding,Emulsification,Preparation of raw materials,Metering of solids
Steps after
Filtration,Concentration,Aroma Recovery,Drying,Packing
Input ingredients
leaves,stems,roots,raw material,coffee,health products,herbal products
Output ingredients
first class extracts,aroma rich fractions,high-quality coffee extracts
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Operation Pressure
Atmospheric
Temperature Range
Low temperatures
Extraction Method
Continuous counter-current extraction
Capacity
500–1000 kg/h raw material
Volume
Up to 2.700 litres (2.7 m³)
Residence Time
0.5 to 2 hours
Screw Speed
Adjustable
Filter Type
Self-cleaning filters
Extraction Liquid Flow Control
Independently adjusted
Solid Transport Mechanism
Counter-rotating mirrored helicoidal screws

Operating Characteristics


Working Mechanism
Continuous counter-current extraction
Flow System
Inline continuous
Operation Pressure
Atmospheric pressure
Temperature
Low temperatures
Residence Time
0.5 to 2 hours
Automation Level
Controlled slip,volume metering

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Discharge method
Continuous discharge
Machine capacity
2700 litres (2.7 m³)
Processing capacity
500–1000 kg/h raw material

Custom Options


Capacity
Up to 500-1000 kg/h
Unit size
Up to 2,700 litres
