Coaxial mixer for high viscosity liquids

Achieve seamless blending of high-viscosity materials with a coaxial mixer designed to optimize mixing efficiency and ensure uniform consistency for challenging compounds and solutions.

Mixes and Homogenizes High-Viscosity Fluids

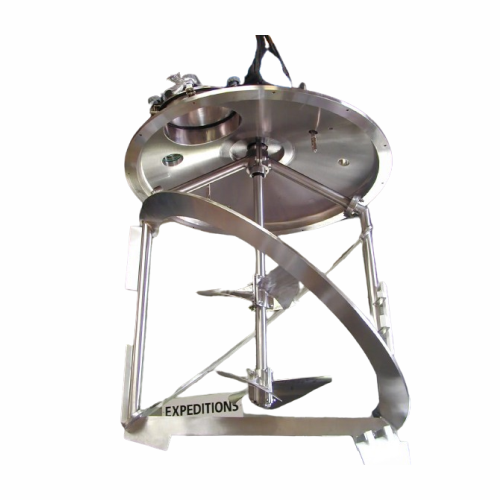

The LUMPP Coaxial Mixer-Agitator, developed by the HASLER Group, excels in handling high-viscosity fluids within industrial settings. Specially designed with dual impellers, it offers effective mixing and homogenization by utilizing a counter-rotating system. This equipment caters to diverse applications like polymers and crude oil processing, and it efficiently manages complex rheologies in continuous operations.

The central impeller rapidly projects product against the tank walls for enhanced mixing, while a secondary peripheral anchor counter-roils for thorough agitation. With power outputs ranging from 0.55 to 45 kW, and speeds up to 1,500 rpm, it assures robust operation. Materials options include carbon, stainless, and duplex steels, as well as nickel-based alloys, ensuring corrosion resilience. Additionally, it features single or double mechanical seals for process integrity. Custom engineering support is available to adapt impeller types and configurations for specific processes, while computerized fluid dynamic simulations and rheology audits guarantee optimal integration and performance.

Benefits

  • Enhances mixing efficiency in high-viscosity applications with counter-rotating impellers.
  • Optimizes heat exchange processes, improving energy use and product consistency.
  • Customizable to meet specific industrial requirements, ensuring operational flexibility.
  • Facilitates maintenance with an optional dismantling system, reducing downtime.
  • Compatible with corrosive materials due to robust material options, ensuring longevity.

General


Applications
Polymers,Fuels,Organic compounds,Dyes,Inks,Hydrocarbons,Silicones,Starches,Fine polymers,Lubricants,Paints,Crude oil,Inorganic compounds
End products
Epoxy resins,Motor oils,Diesel fuel,Potato starch slurry,Polypropylene containers,Silicone sealants,Textile dyes,Polyimide films,Isopropyl alcohol,Styrene monomer,Gasoline,Automotive paints,Polyethylene products,Ammonia solution,Printer inks
Steps before
Material Preparation,Ingredient Dosage,Pre-heating,Chemical Reaction Initiation
Steps after
Homogenization Check,Cooling,Product Transfer to Storage,Final Quality Inspection
Input ingredients
high viscosity liquids,non-Newtonian fluids,polymers,silicones,hydrocarbons,organic compounds,inorganic compounds,starches,dyes,paints,inks,crude oil,fuels,lubricants
Output ingredients
homogenised high viscosity mixtures,evenly mixed non-Newtonian fluids,homogenised polymers,mixed silicones,blended hydrocarbons,processed organic compounds,processed inorganic compounds,homogeneous starch solutions,homogenised dyes,uniform paints,blended inks,processed crude oil,uniform fuels,integrated lubricants
Market info
HASLER Group is known for manufacturing and supplying industrial engineered-to-order (ETO) equipment, specializing in mixing, filtration, and sealing solutions for various industries, with a reputation for quality and innovation in handling challenging process applications.

Technical Specifications


Motor power
0.55 to 45 kW
Speed
200 to 1,500 rpm
Sealing
single or double mechanical seal,gland
Diameter of central impeller
up to 800 mm
Diameter of peripheral impeller
up to 2500 mm
Wet parts material
carbon steel,stainless steel,duplex steel,nickel-based alloys

Operating Characteristics


Dual agitation system
Counter-rotating coaxial impellers
Handling of high viscosity liquids
Yes
Thermal adaptability
Anchor and scrapers for heat exchange
Homogenisation capability
Optimized for complex rheology
Installation flexibility
Simplified installation and maintenance
Agitation speed range
200 to 1,500 rpm

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Not specified
Tank shape
Not specified
Impeller diameter
Central
Material of construction
Carbon steel,stainless steel,duplex steel,nickel-based alloys
Discharge method
Not specified

Custom Options


Control panel type
PLC / HMI
Sealing options
Single or double mechanical seal,gland
Impeller type
Helical screw,dispersion turbines,inclined turbines,pump profile propellers
Material options for wet parts
Carbon steel,stainless steel,duplex steel,nickel-based alloys
Dismantling system
Available for mechanical sealing systems
