Co2/o2 beverage filling device

Ensure precise beverage analysis by maintaining carbonation integrity with a system that transfers samples directly from sealed containers into testing instruments without gas loss, enhancing the accuracy of CO2 and O2 measurements.

Transfers Samples from Sealed Containers

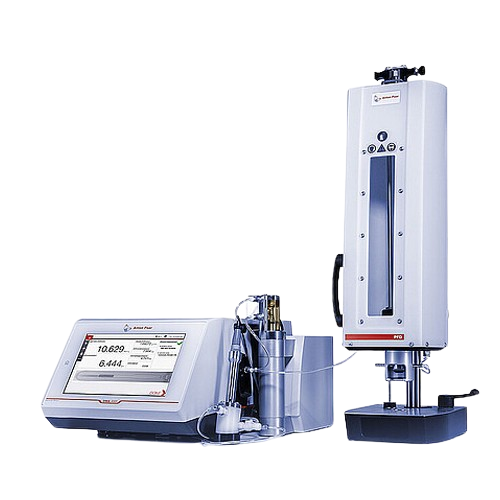

The PFD and PFD Plus from Anton Paar are specialized pressurized filling devices designed for accurate sampling in the beverage industry. These devices feature direct sample transfer from sealed glass bottles, PET bottles, and cans to ensure no CO₂ or O₂ loss during filling. Ideal for brewers and soft drink producers, these devices maintain beverage quality by enabling precise CO₂ and O₂ measurements, essential for quality control in products like ale, vodka, prosecco, and other carbonated beverages.

The PFD supports applications in laboratories and packaging environments, operating under manual and batch processes. It is compatible with various container sizes and requires only 6 ± 0.5 bar (87 ± 7 psi) of compressed air or nitrogen. With dimensions of 190 x 270 x 670 mm, it fits into compact spaces, facilitating smooth integration into existing production lines while maintaining high operator safety standards with its protective shield and built-in safety mechanisms.

Built for durability, its stainless steel base ensures easy cleaning and maintenance, while optional bottle adapters provide versatility in handling different container sizes. The PFD series offers reliable sampling solutions, crucial for beverage manufacturers seeking precise control and consistency in their end-products.

Benefits

  • Ensures accurate CO₂ and O₂ measurement with no loss during sampling.
  • Enhances operator safety with a protective shield and safety pin feature.
  • Simplifies cleaning and maintenance, reducing operational downtime.
  • Adapts to various container sizes with interchangeable bottle adapters.
  • Minimizes resource use with low-pressure operation.

General


Applications
Liqueurs,Carbonated beverages,Bottled water,Sparkling wines,Spirits,Wines,Juices,Soft drinks,Beer
End products
Lemonade,Mineral water,Champagne,Lager,Apple juice,Bourbon,Orange juice,Red wine,Prosecco,Cola,White wine,Ale,Vodka,Tonic water
Steps before
Bottle selection,Container sealing
Steps after
CO2/O2 measurement,Packaged Beverage Analysis
Input ingredients
glass bottles,PET bottles,cans,soft drinks,beer,water,carbonated bottled water
Output ingredients
samples for CO2 meters,samples for O2 meters,samples for packaged beverage analyzers
Market info
Anton Paar is known for its precision measurement and analysis technology, specializing in high-quality laboratory instruments and process measurement systems, particularly in rheometry, density measurement, and material characterization, earning a strong reputation for innovation and reliability.

Technical Specifications


Filling Pressure
6 ± 0.5 bar (87 ± 7 psi)
Dimensions
190 x 270 x 670 mm (7.5 x 10.6 x 26.4 inches)
Maximum Height with Piercing Head
1020 mm (40.2 inches)
Weight
10.1 kg (22.3 lbs)
Can Volume
0.5 L
Glass Bottle Volume
1 L
PET Bottle Volume
3 L

Operating Characteristics


Sample transfer method
Direct from closed container
Pressurized filling
Prevents CO2/O2 loss
Container compatibility
Glass bottles,PET bottles,cans
Filling method
Pressurized
User protection
Splinter shield and safety pin
Operation pressure
6 ± 0.5 bar (87 ± 7 psi)
Convenience
Use in labs and packaging areas
Cleaning
Removable safety shield

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
Glass bottles,PET bottles,cans

Physical Characteristics


Dimensions (L x W x H)
190 x 270 x 670 mm
Weight
10.1 kg
Maximum height with piercing head
1020 mm
Base plate material
Stainless steel
Sample transfer method
Direct from closed container
Compatible container types
Glass bottles,PET bottles,cans
Maximum allowed volume of packages
Can

Custom Options


Bottle adapter size
Varies for different bottle sizes
Removable safety shield
Yes
Splinter shield
Included for maximum user protection
