Cip cleaning system for pharmaceutical industry

Optimize cleanliness and ensure sterile conditions with this advanced CIP/SIP skid unit, designed to automate and streamline cleaning and sterilization processes, enhancing efficiency and reliability in liquid and semi-liquid production environments.

Performs CIP and SIP for Liquid Processing

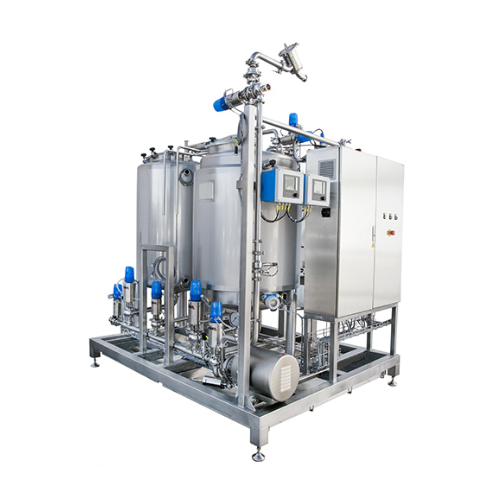

The CIP ph Skid Mounted Units by INOXPA are expertly designed to streamline the cleaning and sterilization processes in pharmaceutical, cosmetic, and food industries. These units perform CIP (Clean-in-Place) and SIP (Sterilization-in-Place) functions without requiring equipment disassembly, ensuring maximum uptime and hygiene. The system uses precise control over temperature, pressure, and chemical dosing, driven by a Siemens PLC that allows for flexible and customizable cleaning programs. With its portable design, featuring AISI 316L stainless steel construction and optional additional tanks for disinfectants, it integrates seamlessly into existing workflows. This equipment is crucial for maintaining compliance with stringent industry standards and is adaptable for specific operational needs, including the option for remote monitoring and control.

Benefits

  • Ensures regulatory compliance with precise CIP/SIP processes.
  • Enhances safety and efficiency by eliminating disassembly needs.
  • Adapts to specific cleaning requirements with customizable programs.
  • Minimizes labor intervention through automated PLC control.
  • Optimizes space utilization with a portable skid-mounted design.

General


Applications
Beverages,Pharmaceutical liquids,Cosmetic liquids,Fine chemicals,Food processing liquids,Bakery liquids,Biopharmaceuticals,Dairy products
End products
Steps before
Steps after
Sterilization
Input ingredients
cleaning solution,steam,chemicals,water
Output ingredients
sterilized tanks,sterilized pipes,sterilized pumps,cleaned process plants
Market info
INOXPA is known for its expertise in manufacturing stainless steel components and equipment, particularly for the food, dairy, cosmetic, and pharmaceutical industries. They are reputed for high-quality, hygienic, and reliable processing solutions.

Technical Specifications


Temperature Control
Accurate
Chemical Concentration Control
Accurate
Exposure Time
Controlled
Pump Type
Peristaltic / Piston / Membrane
Tank Volume
250L
Impulsion Pump Power
4kW
Valve Type
Pneumatic Butterfly Valves
Screen Size
6" Touch Screen
Control System
PLC Siemens
Insulation Material
Rock Wool
Gasket Material
EPDM according to FDA
Cleaning Programs
5 (Preparation,Short Tank Cleaning,Short Line Cleaning,Tank Long Cleaning,Long Line Cleaning)

Operating Characteristics


Working mechanism
Automated CIP/SIP
Integrated steps
Cleaning,sterilization
CIP principles
Controlled cleaning with PLC
Batch vs. inline flow
Batch
Automation level
PLC Siemens
Cleaning method
CIP / SIP
Sterilization method
Steam / Chemical
Changeover time
Manual valve activation
Energy efficiency
Electric heaters
Flow control
Return line monitoring

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Portable,skid-mounted
Tank shape and size
Jacketed,conical bottom,250L each
Material of construction
AISI 316 for media contact,AISI 304 for non-contact parts
Frame type
AISI 304 frame with wheels
Control panel type
6" touch screen control
Discharge method
Impulsion via 4kW Hyginox SE pump
Temperature control
Electric heaters inside tanks

Custom Options


Control panel type
PLC Siemens system control
Integration possibilities
Handshakes between CIP control panel and other control systems
Tank configuration
2 simultaneous lines,bigger volumes
Pump type
Peristaltic,piston,or membrane pumps for dosing
Valve type
Double seat or single seat valves
Heat exchanger
Tubular heat exchanger
