Cheese vat for high-yield cheese production

Maximize cheese production with minimal space, ensuring superior quality and economic performance. This solution addresses key challenges like fat retention and curd consistency, integrating seamlessly into high-capacity, automated operations for a wide variety of cheese types.

Processes and Optimizes Cheese Curd Production

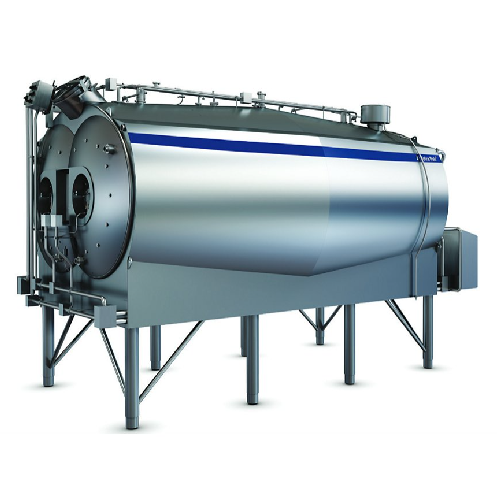

The Tetra Pak Cheese Vat Yieldmaster 2 is engineered to enhance the cheese-making process with superior yield and efficiency. This robust cheese vat accommodates a wide range of cheese types, including Cheddar, Mozzarella, and Parmesan, among others. Utilizing dual counter-rotating agitators, it ensures uniform mixing, optimal curd formation, and reduces rennet mixing time. Its high-capacity design, capable of handling up to 85,000 lbs, integrates seamlessly into continuous production lines with automated controls. The vat features a unique hot water heat exchanger for gentle, precise heating, which minimizes fat loss. With a patented seal design, it promises minimal maintenance, and its sloped drain optimizes curd retention during rinsing. Constructed for durability, it supports various piping layouts, making it suitable for both new facilities and retrofit applications.

Benefits

  • Maximizes cheese yield with precise curd formation and minimal fat loss.
  • Reduces operational costs through enhanced durability and low maintenance requirements.
  • Ensures consistent cheese quality and size with optimized mixing and cutting processes.
  • Facilitates flexible plant layouts with configurable piping options and optimal footprint use.
  • Enhances production efficiency with large capacity and seamless integration into automated lines.

General


Applications
Mozzarella,Romano,Colby,Low fat cheese,Cheddar,Cheese,No fat cheese,Swiss,Provolone,Muenster,Brick,Parmesan,Jack
End products
Parmesan grated,Low fat cheese snacks,Colby slices,Romano cheese wedges,Cheddar blocks,Monterey jack cheese shreds,Brick cheese cubes,Muenster cheese wheels,No fat cheese spread,Swiss cheese slices,Mozzarella balls,Provolone sandwich slices
Steps before
Milk Pasteurization,Milk Standardization,Curdling,Rennet Addition
Steps after
Curd Cutting,Whey Draining,Salting,Aging
Input ingredients
raw milk,rennet
Output ingredients
cheese curd,whey
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Capacity
38,555 kg (85,000 lb)
Agitation
Dual counter-rotating agitators
Heat Transfer
Hot water or steam
Mixing time
Reduced rennet mixing time
Curd size consistency
Improved curd size consistency
Leak detection
Yes,with leak detection port
Drainage system
Slope-to-centre drain
Automation
Not explicitly mentioned but implied through features and functions

Operating Characteristics


Working Mechanism
Dual counter-rotating agitators
Integrated Steps
Curd creation,cutting,and pump-out
Batch vs. Continuous Operation
Batch
Automation Level
PLC-controlled
Cleaning Method
CIP (Clean-in-Place)

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Curd type
Cheddar,Mozzarella,etc.

Physical Characteristics


Machine footprint
Large volume,relative to footprint
Tank size
38,555 kg (or 85,000 lb)
Agitator type
Dual counter-rotating agitators
Discharge method
Slope-to-centre drain
Vat design
Dual barrel main body

Custom Options


Heat transfer method
Steam / Hot water
Agitator type
Dual counter-rotating
Seal design
Patented,low maintenance
Drain design
Slope-to-centre
Integration with existing systems
Flexible piping layouts
Usage in different cheese types
Cheddar,Mozzarella,Colby,etc.
Construction material
Stainless steel
