Checkweighers with chain conveyors for diverse package types

Optimize your production line with precision weighing, accommodating a wide range of package shapes and sizes while ensuring quality control in high-speed operations.

Weighs and Inspects Products Efficiently

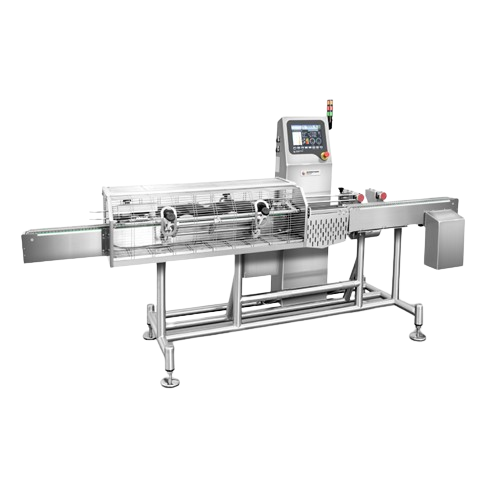

Antares Vision Group’s Checkweighers with Chain Conveyor and Skid are engineered to deliver precise weight control in dynamic industrial settings. These systems feature a transport scheme with variable width and are ideal for handling jars, plastic bottles, and cans in high-speed production lines. With micrometric adjustment and optional infeed screw for product spacing, they ensure seamless operation in packaging, food, and beverage industries.

Supporting up to 600 products per minute, they manage loads up to 6000 grams with a display division starting from 0.5 grams. The AISI 304 stainless steel main structure and anodized aluminum components allow for use in challenging environments, supporting both solid and liquid product types.

Equipped with a 12-inch touchscreen panel, they offer intuitive control for inline operators, and remote support enhances connectivity with Industry 4.0 compliance. Their design facilitates easy cleaning with quick-removal conveyor belts, while METROLOGICAL approval certifies reliable performance. Personalize your solution with 254 storable product recipes for flexible format changes over time.

Benefits

  • Enhances operational efficiency by managing high-speed lines with precision weight control, reducing product giveaways.
  • Improves product quality and compliance with 100% inspection, safeguarding brand integrity.
  • Streamlines cleaning and maintenance with hygienic design and quick-removal conveyor belts.
  • Facilitates seamless integration and data exchange with Industry 4.0 connectivity.
  • Enables agile production with customizable settings for diverse product formats, maintaining competitiveness in dynamic markets.

General


Applications
Jars,Plastic bottles,Cans
End products
Pickle jars,Soda cans,Beer cans,Water bottles,Ketchup bottles,Peanut butter jars,Jam jars,Honey jars,Aerosol cans,Shampoo bottles
Steps before
Filling,Sorting
Steps after
Packaging,Labeling
Input ingredients
jars,plastic bottles,cans,products of different shapes and dimensions
Output ingredients
weighed products,inspected products,products meeting quality control standards
Market info
Antares Vision is renowned for providing inspection, track and trace, and quality control systems primarily to the pharmaceutical, food, and beverage industries, ensuring product integrity and supply chain transparency.

Technical Specifications


Control Panel
Colour touchscreen 12”
Data Processing Electronics
RISC Embedded FPGA
Self-learning System and Calibration
Included
Data Collection Software
Included through Ethernet and USB
Linear Speed
Up to 100m/min
Production Rate
Up to 600 ppm
Weight Range
Up to 6000 g
Display Division
Starting from 0.5 g
Protection Degree
IP65/IP66
Automation
Industry 4.0 compliant
Product Recipe Storage
Up to 254 recipes
Materials
Stainless steel AISI 304,Aluminium treated in hard nickel and anodized

Operating Characteristics


Automation level
PLC
Batch vs. continuous operation
Continuous Inline
Changeover time
Low
Cleaning method
Quick-removal conveyor belts
CIP/SIP
Manual/CIP
Energy efficiency
High
Air incorporation control
Integrated

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Main support structure material
Stainless steel AISI 304
Module movement material
Aluminium treated in hard nickel and anodized
Transport scheme
Variable width chain conveyors
Control panel
12” touchscreen
Protection Degree
IP65/IP66

Custom Options


Control Panel Type
Colour touchscreen 12”
Integration Possibilities
Compatible with Industry 4.0
Modularity
Suitable for different product formats and dimensions
Load Management
Manages up to 6000 g
Data Collection Software
Included through Ethernet and USB
Remote Assistance
Kit for Remote Assistance Included
