Ceramic membrane crossflow filters for wine clarification

Enhance filtration efficiency with ceramic membranes offering unparalleled clarity for applications ranging from winemaking to chemical processing, ensuring robust performance even with high contamination levels and challenging conditions.

Filters and Clarifies Liquids and Slurries

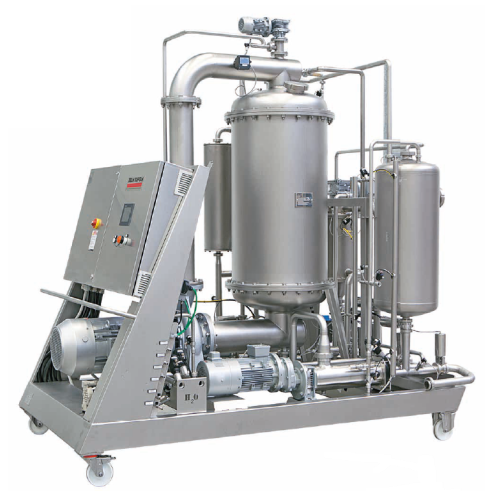

The OMNIA Crossflow Ceramic Membrane Filters from Della Toffola offer a robust solution for diverse filtration challenges across winemaking, foodstuffs, chemical, pharmaceutical, and industrial sectors. Utilizing ceramic membranes, these filters deliver unparalleled wear resistance and thermal stability, ensuring precise filtration and exceptional clarity. They are engineered to handle a range of liquids and slurries, including clarified and unclarified wines, fruit juice concentrates, and chemical solvents. With fully automated processes, including intuitive touchscreen controls and optional remote accessibility, they integrate seamlessly into production lines. Customizable configurations cater to your specific throughput needs, with filtration surface areas from 20 to 118 m². The system’s efficiency is bolstered by minimized operator intervention, reduced resource consumption, and effective cleaning cycles, enhancing both productivity and cost-effectiveness. Available in materials suited for high-temperature and chemically aggressive environments, these filters meet rigorous operational standards for industrial-scale applications.

Benefits

  • Enhances product clarity and purity with high-efficiency ceramic membrane filtration.
  • Decreases operational costs through reduced labor involvement with automated operation.
  • Minimizes resource use and environmental impact by optimizing energy consumption.
  • Increases operational longevity in high-temperature or aggressive chemical conditions with durable ceramic membranes.
  • Customizable configurations ensure seamless integration into existing production processes, enhancing flexibility.

General


Applications
Chemicals,Winemaking,Industrial products,Foodstuffs,Pharmaceuticals
End products
Fruit juice concentrates,Sugar syrups,Industrial oils,Clarified wine,Chemical solvents,Unclarified wine,Wine lees,Dairy proteins
Steps before
Clarification,Fermentation,Wine Clarification
Steps after
Sterilization,Packing
Input ingredients
clarified wines,unclarified wines,lees,products in foodstuffs,products in chemical sectors,products in pharmaceutical sectors,products in industrial sectors
Output ingredients
filtered wines,clear products,recovered product
Market info
Della Toffola is renowned for its expertise in designing and manufacturing industrial equipment for the wine-making, beverage, and food processing industries, providing customized, high-quality engineered-to-order solutions with a strong reputation for innovation and reliability.

Technical Specifications


Filtration clarity
0.00 NTU
Membrane porosity
Various levels available
Filtering surface area
20 to 118 m²
Automation
Fully automated
Temperature resistance
High temperatures
Chemical resistance
Aggressive chemicals

Operating Characteristics


Working mechanism
Crossflow filtration
Integrated steps
Automated filtering cycles
CIP/SIP
Cleaning with aggressive chemicals
Automation level
Fully automated
Remote operation capability
Online control via connected device

Material Compatibility


Abrasion resistance
Ceramic membranes
Biological compatibility
Suitable for winemaking and foodstuffs
Cleanability
Withstands sterilizing and cleaning with aggressive chemicals
Corrosive resistance (e.g. acids)
Ceramic membranes
Thermal resistance
Withstands high temperatures

Product type Characteristics


Product compatibility
Clarified and unclarified wines,foodstuffs,chemical,pharmaceutical,industrial

Physical Characteristics


Filtering surface area
20 to 118 m²
Membrane porosity
Various levels
Control interface
Touchscreen
Remote control option
Internet-enabled module

Custom Options


Filtering surface area
20 to 118 m²
Control panel type
Touchscreen interface
Integration possibilities
Remote control module for online setup and control
Porosity levels
Available in various levels for different uses
System automation
Fully automated processes
