Centrifugal coffee roaster for uniform roasting

Achieve consistent and precise coffee roasting with advanced centrifugal technology that ensures uniform bean exposure to heat, perfect for refining flavor profiles and density.

Roasts and Cools Coffee Beans Efficiently

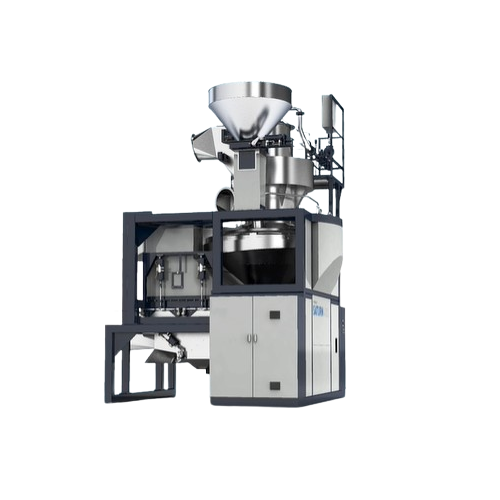

The SATURN Centrifugal Coffee Roaster from PROBAT offers an innovative solution for coffee processing, featuring patented centrifugal roasting technology. Unlike traditional systems, it uses a rotating roasting bowl that creates centrifugal force, ensuring uniform roasting as beans are exposed evenly to the hot air stream. Ideal for producing espresso beans, filter coffee grounds, and more, it excels in achieving consistent roasts across various coffee profiles.

Designed for both specialty coffee producers and industrial manufacturers, the SATURN handles batch sizes from 30 to 550 kg, with roasting capacities up to 4,000 kg/h. Its efficient thermal management system minimizes energy consumption and reduces heat loss, while the integrated cooling mechanism rapidly preserves flavor post-roast. Equipped with the PILOT 2020 ROASTER control system, it offers robust automation capabilities, including recipe management and remote monitoring. Additionally, it incorporates modular exhaust air treatment options for environmental compliance and operational cost savings. The SATURN is built for longevity, with components designed for easy maintenance and high reliability to support continuous production demands.

Benefits

  • Enhances flavor consistency with uniform centrifugal roasting.
  • Optimizes energy usage, cutting power consumption significantly.
  • Achieves rapid cooling to preserve coffee aroma and quality.
  • Offers flexible roast profiles for diverse coffee products.
  • Minimizes environmental impact with efficient heat recirculation and emission control.

General


Applications
Coffee,Roasted coffee
End products
French press coffee blend,Dark roast coffee beans,Cold brew coffee concentrate,Filter coffee grounds,Single-origin roasted coffee,Espresso beans,Medium roast coffee blend,Light roast specialty coffee
Steps before
Selection of green coffee beans,Green coffee sorting,Green coffee weighing
Steps after
Cooling,Roasted coffee sorting,Packing
Input ingredients
green coffee beans
Output ingredients
roasted coffee,uniform bean appearance,varying roast profiles,light roast,medium roast,dark roast
Market info
Probat is renowned for its expertise in manufacturing coffee processing equipment, particularly coffee roasters. The company has a strong reputation for engineering solutions in industrial coffee roasting, blending, and grinding technology.

Technical Specifications


Roasting Time
5–15 min
Roasting Capacity
300–4,000 kg/h
Batch Size
30–640 kg
Automation
Fully automatic
Cooling Time
Automated regulation
Airflow
Integrated recirculation
Control System
PILOT 2020 ROASTER
Homogeneous Roasting
Yes

Operating Characteristics


Working mechanism
Centrifugal roasting with rotating bowl
Roasting process control
Automatic,web-based PILOT 2020 ROASTER system
Batch operation
Batch Process
Roasting time flexibility
5–15 minutes
Energy efficiency
Heat recovery through recirculation and roasting air circulation
Cooling time control
Automatic cooling regulation

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Footprint
Compact
Roasting Bowl Design
Centrifugal with lamellar ring
Discharge Method
Gravity
Cooling Integration
Automatic cooling regulation
System Configuration
Vertical axis rotation
Size
Varies by model (TYP 1
Material Handling
Gentle vertical rotational movement

Custom Options


Control panel type
PILOT 2020 ROASTER
Integration possibilities
Web-based access
Recipe management
Flexibly definable recipes
Energy monitoring
Cost transparency
Safety components
Multistep safety system
Automation level
Fully automatic control
Roasting time adjustment
1.5-15 min
Roasting capacity range
300-4,000 kg/h
Batch size adjustment
30-550 kg
Exhaust air treatment
Optional
