Cannabis nanoemulsion equipment
Achieve clear, stable, and bioavailable cannabis nanoemulsions with high-pressure homogenization, ensuring fast-acting and consistent infusion for your liquid and edible products.
Creates Stable Nanoemulsions for Cannabis Products

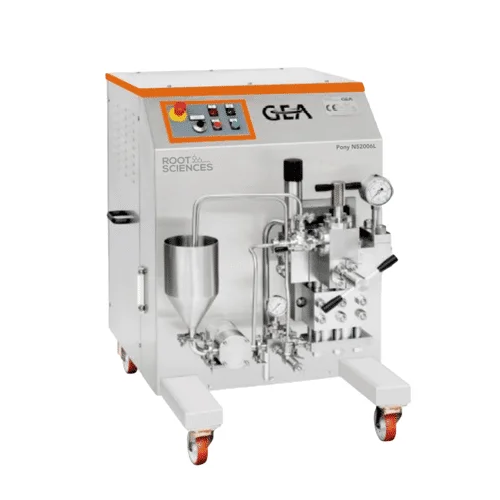

The Pony 1000 and Pony 1500 from Root Sciences are high-pressure nanoemulsification systems designed to create stable, bioavailable cannabis formulations. Using high-pressure homogenization, these units efficiently break cannabis oil into uniformly small droplets, resulting in enhanced stability and bioavailability. Ideal for producing CBD-infused beverages, THC gummies, and topical cannabis lotions, these systems attain flow rates of up to 80 L/h. Equipped with Clean-In-Place (CIP) capability and simple preventative maintenance procedures, they integrate seamlessly into continuous, high-speed processing lines. Configurable in various electrical options, they operate with reduced energy consumption. Optional upgrades like heat exchangers and stainless steel tank systems enhance operational versatility.
Benefits
- Enhances product stability and bioavailability, ensuring faster consumer uptake.
- Minimizes separation issues, improving the consistency and quality of end-products.
- Facilitates seamless integration into existing production lines, optimizing workflow.
- Reduces operational costs with Clean-In-Place (CIP) system and minimal maintenance.
- Supports diverse product applications, from edibles to topicals, broadening market reach.
- Applications
- Beverages,Chemical processing,Biotechnology,Cannabis oil,Hemp,Edibles,Topicals,Cannabis products,Cannabis,Pharmaceuticals
- End products
- Topical cannabis lotions,Nano-emulsified cbd drops,Cannabinoid capsules,Cannabis edibles,Bio-enhanced pain relief creams,Thc gummies,Cbd-infused beverages,Hemp oil tinctures,Thc vape oils,Liquid oral thc spray
- Steps before
- High Shear Mixing,Coarse Emulsion Preparation
- Steps after
- Sterilization,Packing,Labeling
- Input ingredients
- cannabis oil,water,coarse emulsion,surfactants
- Output ingredients
- water-soluble cannabinoid nanoemulsions,flavorless nanoemulsions,high-load nanoemulsions,clear nanoemulsions
- Market info
- Root Sciences is known for providing high-quality extraction, distillation, and other processing equipment for the cannabis and hemp industries, offering solutions for creating purified concentrates and extracts, emphasizing efficiency and innovation.
- Max Flow Rate
- 80 L/h,35 L/h
- Production Rate
- 68k 10 mg servings/h (flavorless),30k 10 mg servings/h (flavorless),140k 10 mg servings/h (high-load)
- Pressure
- 1,000 bar,1,500 bar
- Motor Power
- 5.5 kW
- Electrical Options
- 3Φ 200 V,50 Hz
- 3Φ 220 V,50-60 Hz
- 3Φ 400 V,50 Hz
- 3Φ 460 V,60 Hz
- Feeding Hopper Volume
- 4.5 L
- Minimum Sample Volume
- 130 mL,90 mL
- Dimensions (LxWxH)
- 1195 x 800 x 1185 mm
- Weight
- 400 kg
- Required Utilities
- Lubricating and cooling water – 40 L/h
- Batch vs. continuous operation
- Batch / Inline Continuous
- CIP/SIP
- CIP
- Cleaning method
- CIP / Manual
- Flow Rate
- 35-80 L/h
- Homogenization Pressure
- 1,000 - 1,500 bar
- Automation level
- Manual / PLC
- Sample Volume
- 90-130 mL minimum
- Solution Integration
- Homogenization Technology / Beverage,Chemical,Pharmaceutical
- Preventive Maintenance
- Simple Maintenance Procedures
- Feeding Hopper Volume
- 4.5 L
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Machine footprint
- 1195 x 800 x 1185 mm
- Weight
- 400 kg
- Feeding Hopper Volume
- 4.5 L
- Minimum Sample Volume
- 130 mL / 90 mL
- Discharge method
- Heat Exchanger for product outlet (optional upgrade)
- Heat Exchanger for product outlet
- Optional
- In-Line Medium SS Tank System
- 1-6 gal
- In-Line Large SS Tank System
- 1-12 gal
