Cannabis distillate production system

Achieve high-purity cannabinoid distillates with continuous, high-volume processing that optimizes yield and potency, ensuring your extracts reach desired purity levels efficiently for diverse end products.

Distills and Purifies Cannabinoid Extracts

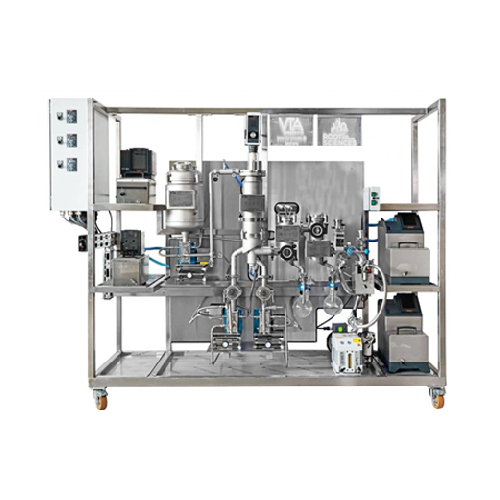

The VKS 95 from Root Sciences is a high-efficiency wiped-film short path distillation system expertly designed in Germany to address the rigorous demands of cannabis extractors and hemp processors. It employs a fully jacketed design that optimizes temperature control throughout the process, negating the need for additional heating aids. This system enables true continuous feed with integrated pumps for precise rate control, crucial for maintaining consistency in high-volume cannabinoid distillation.

Specializing in the separation and purification of THC distillate, CBD oil, and other cannabinoid-rich products, the VKS 95 handles up to 14.27 liters per hour, making it ideal for high throughput operations. It supports a diverse range of end-products, including cannabis vape cartridges and hemp-derived lotions. Automation is seamless with integrated GMP readiness, featuring optional FAT, SAT, IQ, and OQ packages to meet stringent compliance standards.

The VKS 95’s efficient use of energy and innovative design reduce operational costs, while UL-ready certification ensures reliable performance. With its 316 stainless steel construction and robust borosilicate glass, this system guarantees durability and compatibility with harsh processing environments. Maintenance is simplified with expert on-site training and customizable options such as immersion chillers and heated transfer hoses, ensuring a well-integrated and optimized production line.

Benefits

  • Maximizes purity with precise control over feed and discharge rates, ensuring high-quality cannabinoid distillates.
  • Enhances operational efficiency with true continuous feed and high throughput capacity.
  • Reduces energy costs through a fully jacketed system that eliminates the need for external heating elements.
  • Ensures compliance with GMP ready options for alignment with local and international standards.
  • Offers robust durability using 316 stainless steel and borosilicate glass, ideal for demanding processing environments.

General


Applications
Hemp,Cannabinoid distillates,Oils,Plant extracts,Cannabis
End products
Cannabis vape cartridges,Cannabis tinctures,Hemp-derived cannabinoid products,Cbd oil,Cannabis-infused edibles,Hemp lotion,Thc distillate,Cannabinoid-rich creams,Cannabis capsules,Full-spectrum hemp extract
Steps before
Extraction,Purification,Decarboxylation
Steps after
Final Distillation,Remediation,Packaging
Input ingredients
cannabis crude oil,hemp crude oil
Output ingredients
cannabinoid distillate,finished distillate
Market info
Root Sciences is known for providing high-quality extraction, distillation, and other processing equipment for the cannabis and hemp industries, offering solutions for creating purified concentrates and extracts, emphasizing efficiency and innovation.

Technical Specifications


Throughput Capability
5.5 L/h (Typical),14.27 L/h (Maximum)
Evaporator Surface Area
0.10 m²
Power Requirements
1Φ 230 V,60 Hz
Stages
Single
Dimensions
8.2' x 2.4' x 6.5'
Materials Used
316 stainless steel,borosilicate glass,graphite wiper blocks
Feed Rate
14.27 L/h (Maximum)
Typical Throughput
5.5 L/h

Operating Characteristics


Working Mechanism
Wiped-Film Short Path Distillation
Integrated Steps
True Continuous Feed
Batch vs. Continuous Operation
Continuous
Automation Level
PLC Controlled
Throughput Capability
Typically 5.5 L/h,Max 14.27 L/h
Optimal Yields and Potency
Up to 99% Total Cannabinoids
Temperature Control
Fully Jacketed System
Pump Integration
Integrated Pumps for Feed and Discharge
GMP Readiness
Optional GMP Package Available
Customization
Configurable to GMP Requirements
Training
Expert On-Site Training Included
Optional Upgrades
Immersion Chiller,Separate Heater


UL ready
All necessary individual components are UL listed
GMP Compliance
Optional GMP package includes FAT,SAT,IQ,OQ

Physical Characteristics


Machine Footprint
8.2’ x 2.4’ x 6.5’
Evaporator Surface Area
0.10 m²
Material Construction
316 stainless steel,borosilicate glass,graphite wiper blocks
Discharge Method
Integrated pumps for continuous feed
Stages
Single
Fully Jacketed System
Yes
Heated Transfer Hose
Optional

Custom Options


GMP Package
Includes FAT,SAT,IQ,OQ
Equipment Customization
Based on URS for local or international GMP requirements
Integration Possibility
Connect multiple units in series
Pump Customization
Dispensing gear pump
Heater Customization
Separate heater for residue discharge arm
Transfer Hose Customization
Heated transfer hose
Cold Trap Customization
Immersion chiller
