Cannabis and hemp distillation system
Achieve up to 99% cannabinoid purity with high-throughput, continuous distillation that seamlessly integrates into your processing line for efficient separation and purification of cannabis and hemp extracts.
Processes and Purifies Cannabinoid Distillate

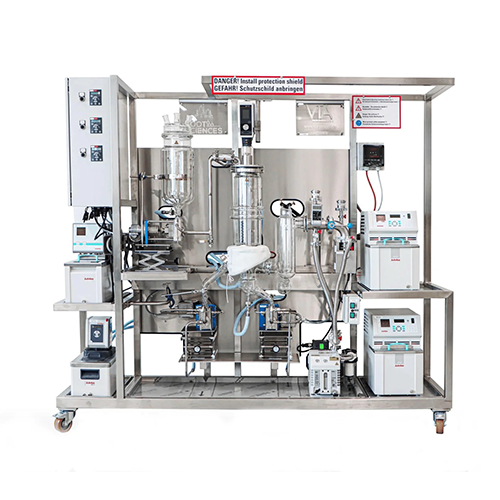

The VKL 85 from Root Sciences is a high-performance wiped-film short path distillation system designed for the continuous processing of cannabinoid distillates. This equipment is engineered to deliver exceptional purity in THC and CBD distillate production by maintaining optimal processing conditions with its fully jacketed, transparent glass components. The system operates with a true continuous feed, thanks to integrated pumps that allow precise control over feed and discharge rates, achieving up to 4.25 liters per hour. Ideal for cannabis and hemp extraction companies, the VKL 85 effectively separates and purifies raw extracts into high-value end-products such as vape cartridges and cannabinoid-infused edibles.
Built with a single-stage evaporation process and a working surface area of 0.15 m², it ensures efficient solvent recovery and energy use, supported by a 1Φ 230 V power requirement. The system is GMP-ready, with optional packages including IQ, OQ, FAT, and SAT, to meet rigorous local or international compliance standards. Constructed from 316 stainless steel, borosilicate glass, and PTFE glass fiber reinforced rollers, the VKL 85 is UL ready and withstands the demands of continuous operation. For ease of use, the equipment features expert on-site training and offers customization options such as a 10-liter feed vessel and GMP-compliant heated transfer hoses.
Benefits
- Ensures high-purity cannabinoid distillates, supporting superior product quality and market appeal.
- Facilitates continuous operation, maximizing production efficiency and reducing cycle downtime.
- Meets stringent GMP standards, ensuring compliance with local and international regulations.
- Provides precise control over processing conditions, enhancing product consistency and operational reliability.
- Offers robust construction materials for durability and longevity in demanding extraction environments.
- Applications
- Cannabinoid distillate,Cannabis,Hemp
- End products
- Hemp oils,Cannabis vape cartridges,Cannabis edibles,Cannabinoid-infused topicals,Cbd distillate,Full-spectrum cannabinoid oils,Cbd tinctures,Thc distillate
- Steps before
- Purification,Cannabis and hemp crude oil extraction,Emulsification
- Steps after
- Cannabinoid distillate packaging,Cannabinoid product formulation,Product testing,Quality control,Distribution
- Input ingredients
- cannabis crude oil,hemp crude oil
- Output ingredients
- cannabinoid distillate,finished distillate
- Market info
- Root Sciences is known for providing high-quality extraction, distillation, and other processing equipment for the cannabis and hemp industries, offering solutions for creating purified concentrates and extracts, emphasizing efficiency and innovation.
- Throughput Capability
- Typically 3.3 L/h,Maximum of 4.25 L/h
- Optimal Yields and Potency
- Up to 99% total cannabinoids
- Feed Rate
- Maximum 4.25 L/h
- Evaporator Surface Area
- 0.15 m²
- Power Requirements
- 1Φ 230 V,60 Hz
- Stages
- Single
- Dimensions
- 7.2’ x 2.0’ x 7.5’
- Materials Used
- 316 stainless steel,borosilicate glass,PTFE glass fiber reinforced rollers
- True Continuous Feed
- Integrated pumps
- Compliance,Certifications
- UL ready (components UL listed)
- Working mechanism
- Wiped-film short path distillation
- Operation mode
- Continuous
- Feed type
- Continuous feed with integrated pumps
- Operational control
- High visibility processing with transparent glass system
- Automation level
- True continuous operation
- Feed,discharge control
- Precise control via integrated pumps
- Batch vs. continuous operation
- Continuous
- Heating method
- Fully jacketed system for uniform heating
- Training included
- Expert on-site training and proprietary parameters
- Abrasion resistance
- Yes
- Biological compatibility
- Yes
- Cleanability
- Yes
- Corrosive resistance (e.g. acids)
- Yes
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- GMP Compliance
- Optional GMP package includes FAT,SAT,IQ,OQ
- UL Certification
- All necessary individual components are UL listed
- Compact footprint
- 7.2’ x 2.0’ x 7.5’
- Discharge method
- True Continuous Feed
- Evaporator surface area
- 0.15 m²
- Cooling option
- Immersion chiller for cold trap
- Residue discharge option
- Separate heater for residue discharge arm
- Feed Vessel Size
- 10 L
- Heating System
- Heated transfer hose
- Residue Discharge Heater
- Separate heater
- GMP Package
- Includes IQ,OQ,FAT,SAT
- Chiller Type
- Immersion chiller for cold trap
- System Connectivity
- Connect multiple units in series
