Brine injection system for cooked ham products

Achieve consistent flavor and quality in protein products with a robust brine injection system designed for precision and flexibility in high-speed meat processing operations.

Enhances Brine Injection Consistency and Efficiency

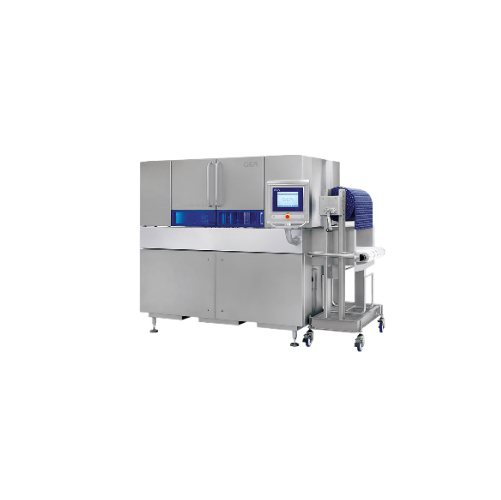

The GEA MultiJector 3-4mm Brine Injection System revolutionizes protein processing by delivering exceptional precision and flexibility. Its unique OptiFlex needles ensure consistent brine distribution, reducing the risk of bent or broken needles and guaranteeing maximum yield in cooked ham and poultry applications. The system features seamless integration with upstream and downstream processes like defrosting, chilling, and tumbling for efficient, continuous production. With a belt width of 700 mm and 275 needles, it accommodates high-speed operations while maintaining consistent product quality and texture. The modular design allows for rapid needle cassette exchange and easy cleaning, minimizing downtime. Additionally, the system supports advanced automation with comprehensive process control, optimized energy usage, and remote monitoring for enhanced productivity and efficiency.

Benefits

  • Ensures product consistency by precisely distributing brine, preventing quality variance.
  • Minimizes maintenance downtime with quick, tool-less needle cassette changes.
  • Enhances yield with optimized brine uptake and reduced product waste.
  • Reduces cleaning time with an easy-to-remove conveyor belt system.
  • Increases production efficiency by integrating seamlessly into existing processing lines.

General


Applications
Cooked ham products,Turkey ham,Chicken ham,Meat processing,Protein products,Pork ham
End products
Pepper-coated pastrami,Sliced deli ham,Barbecue chicken thighs,Holiday baked ham,Pre-marinated pork loin,Seasoned stuffed turkey roll,Grilled chicken breast fillets,Smoked turkey breast slices
Steps before
Defrosting,Brine chilling,Homogenous brine mixing
Steps after
Tenderizing,Tumbling,Massaging
Input ingredients
pork ham,turkey ham,chicken ham,brine,low-viscosity brines,heavy brines,high viscosity brines
Output ingredients
cooked ham products,ham,poultry,bacon
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Needle Type
3-4 mm OptiFlex needles
Brine Distribution Accuracy
Consistent vertical brine distribution
Belt Width
700 mm
Dimensions (HxWxD)
2175 x 1610 x 2885 mm
Product Height
230 mm
Injection Height
220 mm
Number of Needles
275
Changeover Time
7-9 minutes
Cleaning Method
Easy-to-clean conveyor belt system
Brine Temperature Control
2°C to 4°C
Brine Filtration
GEA ScreenFilter and GEA Rotary Filter

Operating Characteristics


Brine injection system
3-4 mm OptiFlex needles
Changeover time
7-9 minutes
Injection height
220 mm
Automated control
Recipe program with process parameters
Integrated process steps
Defrosting,Brine Chilling,Tenderizing,Tumbling
Cleanability
Easy-to-clean conveyor belt system
Time-in-Meat technique
Optimized stroke height and injection cycle time
Needle capability
Flexible needles that won't break or distort
Pressure control
Intelligent stripper plate preventing pressure

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
2175 x 1610 x 2885 mm (HxWxD)
Belt width
700 mm
Product height
230 mm
Injection height
220 mm
Number of needles
275
Needle size
3-4 mm OptiFlex needles

Custom Options


Needle size
3-4 mm
Needle cassette design
Toolless exchange within 7-9 minutes
Modular design
Exchangeable manifold needle cassettes
Recipe program
Process parameters such as product height and needle depth
Integration with additional equipment
Brine mixing,chilling,tenderizing,and tumbling
