Bridgman crystal growth tube furnace
Achieve precise control over crystal growth processes with this advanced tube furnace, ensuring optimal thermal conditions and monitoring capabilities for developing high-purity substrates essential for semiconductor applications and material science innovations.

Facilitates High-Precision Crystal Growth

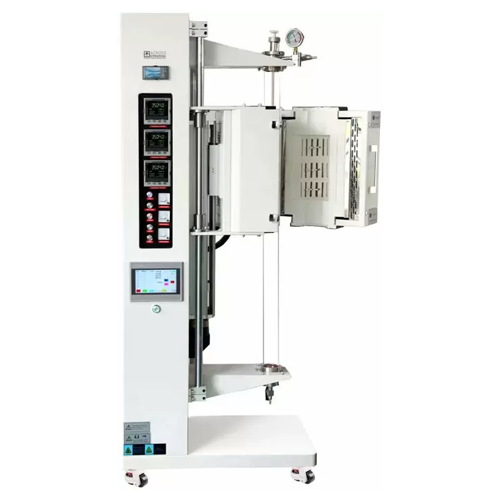

The Bridgman Crystal Growth Tube Furnace 1200°C from Across International is an advanced tool designed for precision crystal growth applications. Featuring a swing-open chamber with Kanthal heating elements, it ensures efficient thermal processing ideal for producing single crystal silicon wafers, gallium arsenide wafers, and sapphire substrates. Utilizing a high precision Eurotherm 3504 PID controller, it provides accurate temperature control with remote monitoring capabilities, crucial for maintaining process integrity in semiconductor and materials science industries. The furnace offers a maximum working temperature of 1200°C, with a durable design leveraging Mitsubishi high-quality grade alumina fiber insulation for optimal energy efficiency. Equipped with safety features like automatic hoisting limits and overheat protection, it integrates seamlessly into research and development settings, facilitating both manual and bench-top operations. The furnace is perfect for industrial processes that demand high-purity alumina crystals and multilayer ceramic capacitors, delivering consistent results backed by Across International’s engineering support for customized solutions.
Benefits
- Ensures high-purity crystal production for advanced semiconductor applications.
- Provides precise temperature regulation, minimizing defects in crystal growth processes.
- Optimizes energy consumption with high-quality insulation materials.
- Enhances operational safety with integrated overheat protection and automatic limits.
- Facilitates efficient process monitoring and control through remote connectivity.
- Applications
- Metallurgy,Crystal growth,Material science,Industrial process,Semiconductor
- End products
- Sapphire substrates,Single crystal silicon wafers,High-purity alumina crystals,Led substrates,Multilayer ceramic capacitors,Solar cells,Gallium arsenide wafers
- Steps before
- Preparation,Material Loading,Initial Heating
- Steps after
- Cooling,Crystal Extraction,Quality Inspection
- Input ingredients
- raw materials for crystal growth,gaseous substances (non-explosive),solid state materials
- Output ingredients
- crystals,grown crystals,processed materials
- Market info
- Across International is known for manufacturing high-quality thermal management equipment, such as vacuum ovens, furnaces, and laboratory equipment, with a strong reputation for reliability and innovation in industries like materials research, cannabis processing, and laboratory testing.
- Maximum working temperature
- 1200°C
- Maximum constant working temperature
- 1150°C
- Minimum working temperature
- Ambient
- Heating element type
- Kanthal A1 2.0 resistance coil wire
- Thermocouple type
- Type K
- Refractory lining
- Mitsubishi high-quality 1500 grade fiber alumina
- Temperature controller
- Eurotherm 3504 digital 50-segment PID controller
- Maximum heating rate
- ,lt
- 30°C / minute
- Heating zone length
- 6 + 6 + 6 inches,3 zones
- Temperature controller precision
- ± 1°C
- Automatic hoisting control
- 0.1-2000 um/second,0-100 mm range
- Electrical requirements
- 208-240VAC,50/60 Hz,single phase,3.5 kW
- Unit dimensions
- 37.5" x 17.7" x 69" (LxWxH)
- Unit weight
- 375 lbs
- Automation level
- High precision,Eurotherm PID controller
- Batch vs. continuous operation
- Batch
- Energy efficiency
- 3.5 kW
- Changeover time
- Fast and easy tube access with swing-open chamber
- Cleaning method
- Not specified,avoid explosive gases
- Heat resistance
- High
- Corrosive resistance
- High
- Thermal stability
- Up to 1200°C
- Chemical resistance
- Acids and bases
- Insulation quality
- 1500 grade alumina fiber
- Compact footprint
- 37.5" x 17.7" x 69"
- Discharge method
- Swing-open chamber
- Weight
- 375 lbs
- Heating zone length
- 6 + 6 + 6 inches
- Control panel type
- Digital Eurotherm 3504 PID controller
- Integration possibilities
- PC connection for remote control and monitoring
- Thermocouple type
- Type K thermocouple
- Hoisting control
- Digital multi-segment automatic hoisting control
- Heating element type
- Kanthal A1 resistance coil wire
