Bottle rinsing systems for diverse container sizes
Effortlessly prepare bottles and jars for filling with a rinsing solution that handles varied container sizes, ensuring cleanliness and preventing cross-contamination in your production line.
Rinses and Sanitizes Bottles and Jars

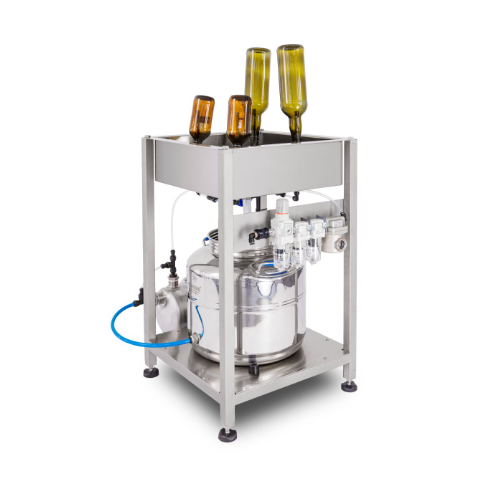

The Easywash from Tenco is a versatile bottle and jar rinser designed for industries requiring strict container hygiene, including beverage, cosmetics, food, chemical, and pharmaceuticals. It offers configurations with two or four nozzles, suitable for a variety of container sizes, and can be equipped with electric or pneumatic pumps to address different sanitization needs. Engineered for manual or semi-automatic operations, this machine efficiently processes up to 600 containers per hour depending on operator input. Easywash facilitates internal rinsing with an option for recirculation, reducing water usage and enhancing sustainability. Constructed from durable materials, it handles a wide range of container types, delivering reliable performance with minimal maintenance.
Benefits
- Enhances production efficiency by rinsing up to 600 containers per hour.
- Reduces water usage with recirculation options, promoting sustainability.
- Supports various container types, minimizing equipment changeover time.
- Offers customizable configurations to suit specific sanitization requirements.
- Lowers operational costs with minimal maintenance needs.
- Applications
- Chemicals,Beverages,Cosmetics,Food products,Pharmaceuticals
- End products
- Distilled alcohol bottles,Medicine bottles,Shampoo bottles,Sauce jars,Nutraceutical jars,Wine bottles,Olive oil bottles,Vinegar bottles,Perfume bottles,Syrup bottles,Juice bottles,Essential oil bottles
- Steps before
- Bottle washing,De-labeling,De-capping
- Steps after
- Filling,Capping,Labeling,Packing
- Input ingredients
- glass bottles,cylinder bottles,square glass bottles,glass jars,mignon bottles,cylindrical pet bottles,square rigid pet bottles
- Output ingredients
- rinsed glass bottles,rinsed jars,rinsed mignon bottles,rinsed cylindrical pet bottles,rinsed square rigid pet bottles
- Market info
- Production Speed
- Up to 600 b/h,depending on the operator
- Power Supply
- 220V - 50 Hz single-phase / 110-60 Hz single-phase / 220V - 60 Hz single-phase
- Dimensions
- 500x800x1200 mm
- Weight
- 45 kg
- Power Consumption
- 0.55 KW
- Standard Injector Inside Mouth Diameter
- From 12 to 26 mm
- Minimum Container Height with Standard Injector
- 150 mm
- Mignon Injector Inside Mouth Diameter
- From 7.5 to 26 mm
- Injector for Jars Mouth Internal Diameter
- From 12 to 140 mm
- Automation level
- Manual
- Batch vs. continuous operation
- Batch
- CIP/SIP
- Manual
- Cleaning method
- CIP / Manual
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Container type
- Glass / PET bottles,jars
- Packaging type
- Mignon bottles,glass jars,cylinder and square glass bottles
- Rinsing method
- Water and air
- Machine footprint
- 500x800x1200H mm
- Weight
- 45 kgs
- Injector inside mouth diameter (standard)
- 12 to 26 mm
- Minimum container height (standard injector)
- 150 mm
- Injector inside mouth diameter (mignon)
- 7.5 to 26 mm
- Injector mouth internal diameter for jars
- 12 to 140 mm
- Compact footprint
- 500x800x1200H
