Biogas upgrader for high methane yield

Optimize biogas production by efficiently converting raw biogas into high-purity biomethane using advanced membrane technology, maximizing energy output and creating additional revenue streams for your facility.

Purifies Biogas and Produces Biomethane

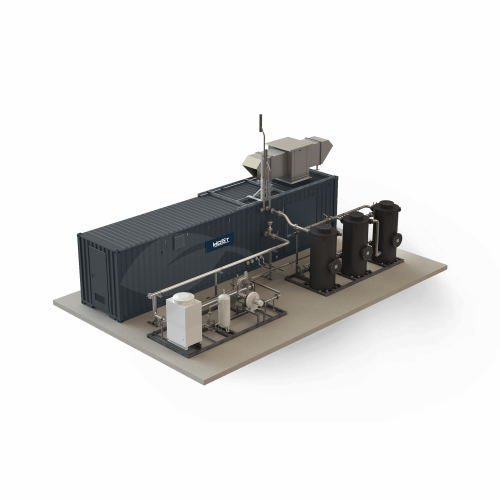

The biogas upgrader range from HoSt Group utilizes proprietary membrane technology to efficiently convert biogas into biomethane. This equipment excels in CO2 removal through membrane filtration, achieving methane recovery rates of over 99.5%. Designed for use in biogas plants and renewable energy projects, it produces end-products like biomethane, Bio-CNG, and liquefied Bio-LNG. Suitable for different scales of operation—Mini, Compact, Medium, and Grand models—its modular design integrates easily into existing facilities. With energy consumption between 0.26-0.29 kWh/Nm3, it offers economical and environmentally friendly purification. Built for continuous operation, the system’s compact and containerized setup ensures straightforward maintenance and high reliability in renewable energy and waste management applications.

Benefits

  • Maximizes methane yield with over 99.5% recovery, enhancing overall biogas value.
  • Reduces operational costs through low energy consumption of 0.26-0.29 kWh/Nm3.
  • Ensures seamless integration into existing facilities with a compact, modular design.
  • Supports diverse applications, allowing production of biomethane, Bio-CNG, and liquefied Bio-LNG.
  • Minimizes environmental impact by facilitating efficient CO2 removal and conversion.

General


Applications
Bio-lng,Co2 liquefaction,Bio-cng,Biomethane production,Biogas plants
End products
Biomethane,Bio-cng cylinders,Liquefied bio-lng,Food-grade liquid co2
Steps before
Anaerobic digestion,Biogas production
Steps after
Grid injection,Bio-CNG distribution,Bio-LNG production,CO2 liquefaction,Digestate treatment
Input ingredients
raw biogas,biogas,CO2,impurities
Output ingredients
biomethane,Bio-CNG,Bio-LNG,BioCO2,purified biogas
Market info
HoSt is known for designing and manufacturing biogas plants, biomass energy systems, and waste-to-energy technologies. They have a strong reputation for sustainable energy solutions and innovation in renewable energy sectors.

Technical Specifications


Capacity
Mini
Methane Recovery
>= 99.5%
Methane Slip
< 0.5%
Electrical Consumption
0.26-0.29 kWh/Nm3 of biogas
Biogas Purification Technology
Membrane Separation
Design
Compact and Modular

Operating Characteristics


Working mechanism
Membrane technology
Methane recovery
≥ 99.5%
Biogas flow rate
30-1,500+ Nm3/hr
Electrical consumption
0.26-0.29 kWh/Nm3
Integration capability
Effortlessly into any biogas facility
Biogas purification steps
CO2 removal
End-product options
Biomethane,Bio-CNG,Bio-LNG,BioCO2
Automation level
Modular and containerized system
Integration design
Compact and modular

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Suitable plant types
Any type of biogas plant

Physical Characteristics


Compact footprint
Yes
Control panel type
Digital
Discharge method
Piped integration

Custom Options


Control panel type
HMI/PLC integrated
Modular design
Prefabricated,containerized system
Integration possibilities
Biogas plant integration
