Beverage preparation system for large-scale production

Ideal for producers looking to scale up, this versatile system efficiently handles the preparation of diverse beverages, ensuring superior ingredient integration and consistent quality across large production volumes.

Mixes and Homogenizes Beverage Ingredients

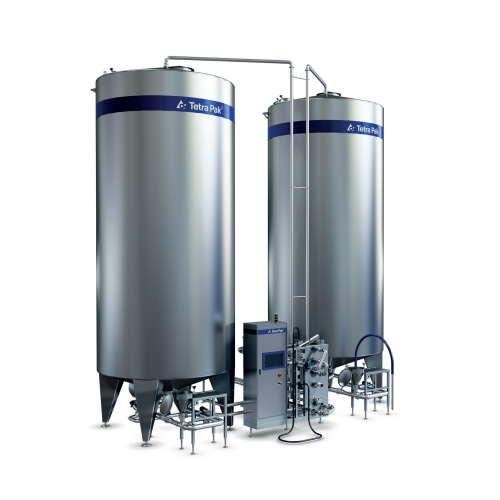

The Tetra Pak® B-ES Beverage Preparation System is an adaptable solution that excels in mixing, hydration, and homogenization processes for a wide range of beverage applications, including juices, soft drinks, and plant-based beverages. Featuring a modular design, it supports flexible upgrades as production demands increase, accommodating capacities from batch operations of 2,000-4,000 liters per hour to continuous high-speed production of up to 70,000 liters per hour.

Employing radial jet mixing technology, it ensures efficient, homogenous mixing without mechanical shear, making it ideal for handling delicate ingredients like gums and thickeners. The system leverages energy-efficient components such as auto mixing devices and twin-stage nozzles, reducing energy consumption by up to 60% relative to conventional high shear pumps.

Constructed from durable, food-grade materials, the B-ES system offers excellent corrosion resistance and can be configured to meet specific operational requirements. It integrates seamlessly into existing processing lines with automation compatibility, allowing for remote monitoring and control. Furthermore, it offers ease of cleaning with CIP capabilities, minimizing downtime and ensuring hygiene standards are met.

Benefits

  • Enhances production capacity with flexible batch and high-speed continuous operation.
  • Reduces energy consumption by up to 60% compared to traditional high shear pumps.
  • Adapts to changing production needs with modular upgrade options.
  • Minimizes maintenance and cleaning downtime with integrated CIP system.
  • Ensures consistent product quality through efficient, homogenous mixing.

General


Applications
Beverages,Plant-based drinks,Still drinks,Nectars,Energy drinks,Syrups,Soft drinks,Dairy drinks,Juices
End products
Lemonade,Sports energy drinks,Orange juice,Apple nectar,Almond milk,Soy milk,Herbal syrups,Cola,Chocolate milk,Flavored water
Steps before
Ingredient Preparation,Liquid Measurement,Initial Mixing
Steps after
Filling,Packaging,Storage,Distribution
Input ingredients
gums,stabilisers,thickeners,liquids,powders,viscous ingredients,syrup ingredients,plant-based ingredients,dairy ingredients
Output ingredients
juices,nectars,still drinks,soft drinks,energy drinks,syrups,plant-based drinks,functional drinks,dairy drinks,homogeneous syrup mixtures,homogeneous beverage mixtures
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Capacity
2,000-70,000 litres/hour
Batch vs. continuous
Batch or high-speed continuous
Mixing method
Radial Jet Mixer
Viscosity handling
Up to 200 cP
Tank sizes
10,000,16,500,25,000,45,000 litres
Automation
Intuitive,easy-to-operate design
Energy efficiency
60% less energy with AMD
Mixing speed
Faster than conventional mixers
Powder handling
Horizontal injector to prevent clogging
Energy efficiency of nozzle
50% more efficient twin-stage nozzle

Operating Characteristics


Working Mechanism
Radial Jet Mixing
CIP/SIP
Available
Batch vs. continuous operation
Batch / Inline Continuous
Capacity Range
2,000-70,000 litres/hour
Modular Design
Flexibly upgradable
Automation Level
Intuitive,easy-to-operate
Energy Efficiency
High
Mixing Efficiency
Ultra-effective
Cleaning Method
CIP
Changeover Time
Minimal due to design

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Viscosity
Up to 200 cP
Heat Sensitivity
Minimal heat generation
Agglomeration Risk
Low with horizontal injector
Mixing Efficiency
High energy efficiency
Ingredient Compatibility
Gums,stabilisers,thickeners
Batch Flexibility
2,000-70,000 L/hr
Versatility
Juices,syrups,plant-based drinks

Physical Characteristics


Compact footprint
Modular design
Tank size
10,000 - 45,000 litres
Discharge method
Radial Jet Mixer
Batch size flexibility
2,000-70,000 litres/hour
Control panel type
Intuitive design

Custom Options


Modular design
Expandable with extra equipment
Ingredient lines
Additional lines can be added
Control panel type
Intuitive,easy-to-operate design
Options for handling challenging ingredients
Auto mixing device for gums,stabilisers
Nozzle type
Twin-stage for energy efficiency
