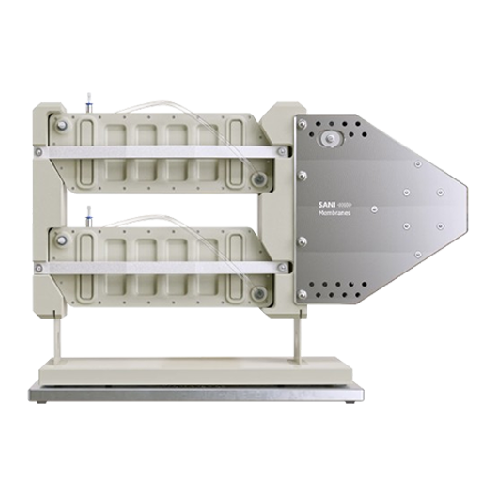

Benchtop membrane filtration for process development

Eliminate fouling and achieve precise separation with a benchtop filtration system that offers complete process control for micro and ultrafiltration applications.

Filters and Concentrates Liquids Efficiently

The Vibro-Lab280 from SANI Membranes is a benchtop membrane filtration unit specifically engineered for R&D and laboratory environments. Utilizing Vibro® Technology, this system creates turbulence at the membrane surface, eliminating the need for a crossflow pump and reducing the risk of fouling. It offers unparalleled precision in microfiltration and ultrafiltration, applicable in industries ranging from biotech and pharmaceuticals to dairy and liquid food. Capable of processing volumes between 100 and 4000 mL, the Vibro-Lab280 ensures high transmission and operational control with a uniform transmembrane pressure under 0.1 bar. Its ease of setup, coupled with the option to use one or two cartridges, allows for versatility in membrane selection and application, making it ideal for developing processes involving algal extracts, protein concentrates, and more. The system supports various membrane materials, enhancing its adaptability to specific filtration requirements. Designed for minimal maintenance, the Vibro-Lab280 streamlines workflow while ensuring compliance with industry standards.

Benefits

  • Enhances process efficiency with up to 100% API recovery.
  • Maintains high product integrity by minimizing cell damage in sensitive applications.
  • Reduces operational complexity by eliminating crossflow pumps and cooling requirements.
  • Offers flexibility in process development with multiple cartridge configurations.
  • Optimizes resource use with low transmembrane pressure, conserving energy and reducing costs.

General


Applications
Liquid food,Biotech,Algae,Dairy,Pharmaceuticals
End products
Monoclonal antibodies,Protein concentrates,Algal extracts,Cell culture media,Plant-based milk,Lactose-free milk,Whey protein isolate,Fruit juices
Steps before
Media Preparation,Sample Loading,Feed Pumping
Steps after
Product Recovery,Membrane Cleaning,Data Analysis
Input ingredients
API,fragile cells,media for microfiltration,media for ultrafiltration
Output ingredients
recovered API,retained fragile cells,filtered media
Market info
Sanimembranes is known for innovative membrane filtration solutions in the industrial and biotechnological sectors, emphasizing energy efficiency and sustainability. They specialize in crossflow membrane designs for ultrafiltration and microfiltration processes.

Technical Specifications


Membrane Area
280 cm² per cartridge
Ideal Working Volume
100-4000 mL
Filtration Pressure
0-2 bar(g)
Footprint
51 x 18 cm
Filtration Type
Microfiltration,Ultrafiltration
Trans Membrane Pressure (TMP)
Less than 0.1 bar
Cartridge Capacity
Fits 1 or 2 cartridges
Pore Size Range
1 kDa to 1.2 µm
Process Duration
Up to 8 hours
Filtration System
Vibro® Technology
Process Temperature
Ambient

Operating Characteristics


Working mechanism
Vibro® Technology
Batch vs. continuous operation
Batch
Automation level
Manual setup
Turbulence application
Applied to the membrane
Cleaning method
Fully drainable cartridges
Pressure control
Less than 0.1 bar TMP
Fouling risk elimination
High transmission,reduced fouling
Cartridge flexibility
1 or 2 cartridges
Setup simplicity
No crossflow pump required
Enhanced cell concentration
Up to 8 hours without cell damage

Material Compatibility


Biological compatibility
Yes
Cleanability
High
Corrosive resistance (e.g. acids)
Yes
Density/particle size
1 kDa – 1.2 µm

Physical Characteristics


Compact footprint
51 x 18 cm
Membrane area
280 cm² per cartridge
Working volume
100-4000 mL
Cartridge capacity
Fits 1 or 2 cartridges
Membrane type options
Wide range of membrane materials

Custom Options


Membrane options
Wide range of membrane materials with pore sizes between 1 kDa and 1.2 µm
Cartridge compatibility
Fits 1 or 2 cartridges
Footprint
51 x 18 cm
Integration possibilities
Vibro®Technology enables ease of setup and lack of crossflow pump
