Belt dryer for timber industry
Optimize moisture removal and ensure consistent drying in your production line with advanced belt drying technology, designed to handle diverse materials from food to timber efficiently.
Removes Moisture and Enhances Product Quality

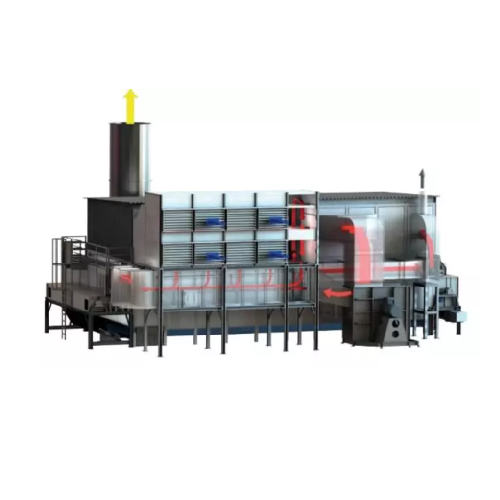

The Belt Dryer Type BT from STELA Laxhuber is engineered to excel in moisture removal across various industries, such as agriculture, timber, and recycling. This modular system stands out with its efficient air distribution, utilizing direct-coupled and frequency-controlled multi-vent radial fans for precise control. The equipment operates by flowing heated air through an air-permeable belt, removing moisture effectively in a controlled manner. It is suitable for applications ranging from drying sawdust and OSB strands to preparing food products like dehydrated vegetables and granola.
Offering throughputs from 200 kg to 60 t of water per hour, the BT dryer is designed for continuous operation and maximum efficiency. It features top-down ventilation and is capable of operating at extreme temperatures down to -40°C. The enclosed design not only ensures effective insulation but also makes this dryer adaptable for external setups. For environmentally conscious operations, this dryer can integrate exhaust air heat recovery to reduce energy consumption.
With corrosion-resistant materials, the system promises longevity and reliability, and STELA provides customization options to fit specific drying requirements, including airflow configurations and belt widths from 2 to 8.4 meters. Whether processing solid or granular products, this dryer meets rigorous industrial demands, supported by engineering assistance from STELA to tailor the solution to your precise needs.
Benefits
- Maximizes production efficiency with continuous operation and modular design.
- Reduces energy usage significantly through integrated exhaust air heat recovery.
- Ensures consistent product quality with superior moisture removal and distribution control.
- Performs reliably in harsh conditions with an insulated design operable at -40°C.
- Offers flexible integration into existing systems with customizable belt widths and airflow configurations.
- Applications
- Pet food,Pellets,Renewable fuels,Agricultural products,Recycled materials,Pulp and paper,Sewage sludge,Food products,Timber products,Cement
- End products
- Muesli base flakes,Cornflakes,Chipboard,Sawdust pellets,Dried vegetables,Snack bars,Granola,Processed sewage sludge,Pet kibble,Recycled paper,Alternative fuel pellets,Osb strands
- Steps before
- Grinding,Emulsification
- Steps after
- Packaging,Storage
- Input ingredients
- sawdust,fibres,chips,OSB strands,valuable cereals,vitamin-preserving dried vegetables,extrudates for snacks and bars,high-quality pet food,alternative fuels,urban sewage sludge,renewable raw materials,wood chips
- Output ingredients
- dried sawdust,dried fibres,dried chips,dried OSB strands,dried cereals,vitamin-preserving dried vegetables,dried extrudates for snacks and bars,dried pet food,processed alternative fuels,dried urban sewage sludge,processed renewable raw materials,dried wood chips
- Market info
- Stela Laxhuber is known for their expertise in manufacturing custom-engineered drying systems, particularly belt dryers for biomass, sludge, and food industries, with a reputation for innovation, quality, and energy efficiency in the market.
- Belt Width
- 6.2 m or 8.4 m
- Capacity
- 200 kg to 60 t of water per hour
- Temperature Range
- Down to -40°C
- Dryer Output Capacity
- 2.95 t/h to 36 t/h
- Process Temperature Zones
- Multiple zones
- Air Flow Direction
- Top-down ventilation
- Heating Medium
- Thermal oil,saturated steam,waste heat,ORC processes
- Automation
- Frequency-controller multi-vent radial fans
- Modular System
- Easily expanded
- Enclosed Design
- Allows external setup
- Heat and Electricity Consumption
- Low
- Moisture Content Reduction
- 50% to 10% or lower
- Product Distribution
- Double spreader screws
- Energy Efficiency
- Top-down and bottom-up ventilation systems
- Air distribution
- Direct-coupled and frequency-controlled multi-vent radial fans
- Modular system
- Easily expanded
- Energy efficiency
- Low heat and electricity consumption
- Temperature suitability
- Down to -40°C (insulated dryer body)
- Product distribution
- Double spreader screws
- Product turning
- Device for even moisture content
- Ventilation direction
- Top-down ventilation
- Operation levels
- Three levels design
- Heat source flexibility
- Thermal oil,saturated steam,etc.
- Drying belt material
- Air-permeable woven plastic
- Moisture removal
- Through extract air release
- Capacity design
- 200 kg to 60 t of water per hour
- Multiple drying zones
- Different process temperatures
- Air ducting
- From above and below the belts
- Belt ventilation sequencing
- Sequential via same airflow
- Exhaust air system
- Exhaust and recirculation options
- Heat recovery
- Exhaust air heat recovery option
- Abrasion resistance
- Yes
- Biological compatibility
- No
- Cleanability
- Yes
- Corrosive resistance (e.g. acids)
- Yes
- Density/particle size
- Varies
- Enclosed design
- External setup capability,insulated body
- Belt widths
- 6.2 m or 8.4 m
- Temperature range
- -40°C (external operation)
- Modular plant system
- Easily expandable
- Ventilation type
- Top-down ventilation
- Material of drying belt
- Air-permeable,woven plastic
- Product distribution
- Double spreader screws
- Control panel type
- PLC with HMI
- Integration possibilities
- Modular system for expansion
- Ventilation method
- Top-down ventilation
- Belt width options
- 6.2 m or 8.4 m
- Heating media flexibility
- Thermal oil,saturated steam,waste heat
- Enclosed design
- Suitable for external setup
- Temperature tolerance
- Operational in -40°C to ambient conditions
- Dryer configuration
- Exhaust air and recirculation systems
- Heat recovery option
- Exhaust air heat recovery possible
