Beer carbonation system

Achieve consistent and precise carbonation in beverages, ensuring optimal gas dissolution for enhanced flavor profiles and beverage stability, while streamlining operations with easy recipe adjustments and minimal maintenance requirements.

Carbonates Beverages with Precision and Consistency

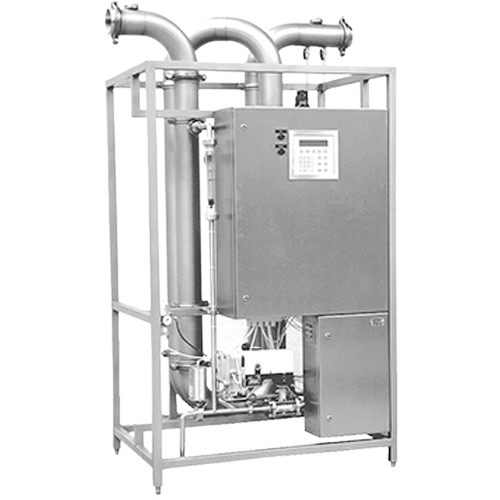

The Carboset™ and Carboset™ Mini from Alfa Laval are compact carbonation systems tailored for breweries and beverage manufacturers seeking precise carbonation control. Specializing in efficient gas dissolution, the system integrates seamlessly into existing production lines, ensuring consistent CO2 levels for products ranging from craft beers to sparkling waters.

The Carboset™ functions by injecting CO2 directly into the beverage via a static mixer, facilitating thorough gas blending at set carbonation levels. This self-contained module features a holding cell with a back-pressure valve to guarantee complete gas dissolution before leaving the system, rendering it effective for applications such as beer finishing at temperatures as low as 2°C under 4 bar pressure.

Achieving CO2 concentrations between 4 to 7 g/l, these modules are suitable for diverse end-products like lagers, IPAs, and soft drinks. Alfa Laval’s solution supports flexible recipe management with stored CO2 setpoints, enabling rapid adjustments between different formulations. Made with stainless steel and heat-resistant seals to comply with food industry standards, the Carboset™ supports cleaning-in-place procedures for minimal maintenance.

Engineers can rely on the Carboset™ for its robust automation and capability to communicate with upstream equipment, such as separators, for synchronized operations. This solution guarantees quality while reducing risks of carbonation inconsistencies in high-speed, continuous production environments, providing breweries and beverage manufacturers with a reliable tool to enhance product quality and operational efficiency.

Benefits

  • Ensures uniform carbonation, enhancing beverage quality and customer satisfaction.
  • Minimizes operational disruptions with seamless integration into current production lines.
  • Lowers maintenance time through effective cleaning-in-place systems.
  • Facilitates rapid recipe changes, improving production flexibility.
  • Maintains product integrity with consistent CO2 dosing, even in high-speed environments.

General


Applications
Beverages,Soft drinks,Beer
End products
Lemonade,Craft beer,Pilsner,Ipa,Lager,Flavored soda,Stout,Sparkling water,Root beer,Energy drinks,Wheat beer,Ale
Steps before
Separating,Cooling
Steps after
Filling,Packaging
Input ingredients
beer,carbon dioxide,beverages,soft drinks,nitrogen
Output ingredients
carbonated beer,carbonated beverages,carbonated soft drinks,beer with desired CO2 level,beer with nitrogen
Market info
Alfa Laval is renowned for its expertise in heat transfer, separation, and fluid handling technologies, providing innovative, energy-efficient engineered-to-order solutions for various industries including food, marine, and energy.

Technical Specifications


CO2 at outlet
Up to 7 g/l (Carboset)
4-6 g/l (Carboset Mini)
Dimensions
1.5m X 1.0m X 2.3m (Carboset)
1,600 x 500 x 2,000 mm (Carboset Mini)
Automation
Automatic control
Pressure
4 bar (g)
Temperature
2°C
Cleaning method
Cleaning-in-place (CIP)
Material
Stainless steel
Footprint
Compact,self-contained,preassembled on a frame

Operating Characteristics


Working mechanism
Direct CO2 injection
Integrated steps
Static mixer for gas dissolution
CIP principles
Cleaning-in-place without parts removal
Batch vs inline flow
Inline Continuous
Automation level
Automatic control
Control system
Control panel with flow meters and CO2 meter

Material Compatibility


Cleanability
Designed for cleaning-in-place (CIP)
Corrosive resistance
Stainless steel components
Heat resistance
Heat resistant seals
Biological compatibility
0
Abrasion resistance
0
Density/particle size
0

Product type Characteristics


Product type compatibility
Beer and soft drinks
Recipe storage capability
Multiple settings


FDA Materials
Yes
CE marking
Yes

Physical Characteristics


Compact footprint
Yes
Dimensions (Carboset)
1.5m x 1.0m x 2.3m
Dimensions (Carboset Mini)
1,600 x 500 x 2,000 mm
Material
Stainless steel
Cleaning method
Cleaning-in-place (CIP)
Control panel type
Automatic
Discharge method
Back-pressure valve

Custom Options


Control panel type
Automatic
Integration possibilities
Compatible with separators and filling lines
Recipe storage
Multiple recipes
Module size
Standard / Mini
