Bar screens for wastewater treatment

Efficiently remove coarse debris from wastewater streams with high-capacity sub-vertical screening technology, ensuring optimal flow and minimal maintenance in demanding municipal and industrial settings.

Efficiently Screens and Removes Coarse Solids

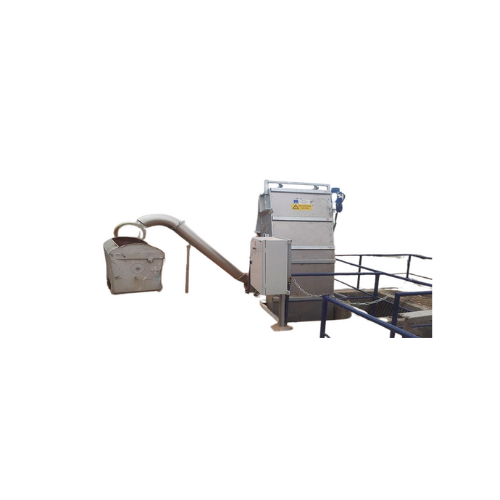

The Sub-Vertical Mechanical Bar Screens GVB from WAMGROUP are engineered for robust performance in municipal and industrial wastewater treatment applications. These screens excel at coarse screening, featuring a durable steel frame and variable bar filter spacing to match your specific screening requirements. Employing a chain-driven rake system, they effectively capture and remove debris from wastewater streams, streamlining processing and protecting downstream equipment from clogs. With wide applicability—from municipal plants to abattoirs and food processing facilities—they transform untreated waste into cleaner effluents, recycled plastic pellets, and other valuable by-products. The GVB series accommodates channel widths from 400 to 2,000 mm, supporting continuous operation while minimizing energy usage due to its efficient design. Constructed from hot-dip galvanized or 304/316L stainless steel, they offer superior corrosion resistance. Their low maintenance design eliminates the need to remove screens from channels, featuring recessed guide channels and minimal moving parts for reduced service demands. Integration is seamless, with options for different control panel configurations and motor protections available.

Benefits

  • Enhances operational efficiency by reliably removing solid debris, preventing clogging and downtime.
  • Minimizes maintenance costs through a no-moving-parts lower chain guide system.
  • Offers flexibility with customizable bar spacing and incline angles to match various screening needs.
  • Resists corrosion and extends service life with 304/316L stainless steel construction options.
  • Simplifies waste management, seamlessly integrating with downstream conveyors and compactors.

General


Applications
Sludge treatment,Clean water treatment,Municipal waste water treatment,Paper processing,Vegetable processing waste water,Industrial waste water treatment,Livestock breeding manure treatment,Industrial solid waste handling,Starch processing,Catering waste water,Tanneries waste water,Animal by-products handling,Beverage industry waste water,Incinerators,Pulp processing,Plastics recycling industry waste water,Food processing waste water,By-products processing,Abattoirs waste water,Dyeing works waste water,Fruit processing waste water
End products
Textile dyes recycling components,Gelatin,Organic fertilizers,Processed starch,Treated animal by-products,Cellulose fiber,Biogas,Recycled paper pulp,Collagen supplements,Processed vegetable fibers,Processed adhesives,Clean water,Recycled plastic pellets,Processed tannins,Processed sludge
Steps before
Coarse Filtration,Pre-Treatment,Coagulation,Flocculation
Steps after
Conveying,Compacting,Disposing,Wastewater Treatment
Input ingredients
municipal wastewater,industrial wastewater
Output ingredients
coarse screenings,solids,discharge to dumpster,conveyor,compactor
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Screen spacing
12mm ~ 50mm
Cleaning rakes
2 or more
Channel width
400 ~ 2,000 mm
Incline angle
75-degree
Material
Stainless steel
Screen incline angle options
75 ~ 90 degrees with goose neck
Material options
Hot dip galvanised steel,304 L / 316 L SS
Control panel
Available

Operating Characteristics


Working Mechanism
Chain-driven rakes
Screen Installation
Very deep channels
Maintenance Requirement
Low maintenance costs
Cleaning Efficiency
Quick,efficient solids removal
Channel Incline Angle
75-degree
Screening Spacing
12mm ~ 50mm
Automation Level
Control panel available
Raking Tine Material
Laser-cut stainless steel

Material Compatibility


Abrasion resistance
Yes
Corrosive resistance (e.g. acids)
Yes
Cleanability
Yes
Biological compatibility
Yes

Physical Characteristics


Discharge method
Chain-driven rakes with wiper
Control panel type
Customizable
Spacing
12mm ~ 50mm
Channel width
400 ~ 2,000 mm
Incline angle
75-degree / up to 90 degrees with goose neck
Material choice
Hot dip galvanised steel,304L / 316L SS

Custom Options


Screen Type and Size
Alternative screen types and sizes
Material
Hot dip galvanised steel,304 L / 316 L SS
Incline Angle
75 degrees up to 90 degrees with goose neck
Voltage and Frequency
Alternative voltage and frequency
Motor Protection
Alternative degree of motor protection
Control Panel
Available
