Bag forming system for pharmaceutical industry

For fluid pharmaceutical production, ensure precise formation and sealing of IV solution bags to meet sterility standards and reduce material waste.

Forms and Seals Sterile Pharmaceutical Bags

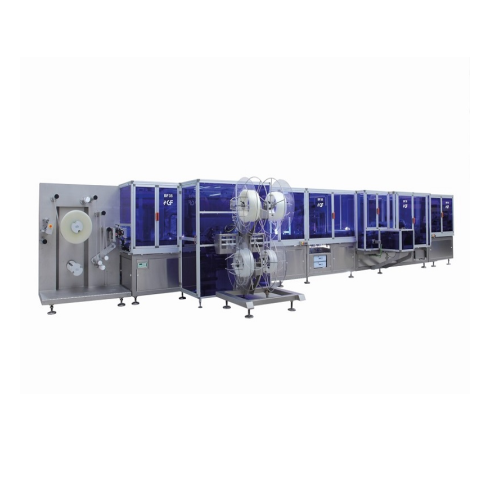

The BF Series Thermoforming Bag Forming Machine offers a state-of-the-art solution engineered for pharmaceutical and healthcare applications. It specializes in forming and sealing sterile IV fluid bags, including multi-chamber designs, achieving zero material waste through its advanced thermoforming process. Fully automatic and operated intermittently, it supports a seamless integration into processing and packaging departments. The machine features a modular design which allows for the customizable integration of ultrasonic and peelable sealing modules, among others. With an operating noise level of 75 dB and a maximum air pressure of 8 bar, it is engineered to maintain a sterile environment, ensuring compliance with stringent pharmaceutical standards. Its robust design accommodates various liquid pharmaceutical products, such as saline and dextrose solutions, while providing efficient processing capabilities and reducing energy consumption with an optimized operation.

Benefits

  • Eliminates material waste, optimizing production efficiency and cost savings.
  • Supports versatile production needs with modular design and customizable sealing options.
  • Ensures compliance with stringent pharmaceutical standards, enhancing product safety.
  • Maintains a sterile processing environment, critical for sensitive pharmaceutical applications.
  • Integrates effortlessly into existing production lines, reducing setup times and boosting productivity.

General


Applications
Liquid pharmaceuticals,Parenterals,Intravenous (iv) solutions,Pharmaceutical bags,Injectables
End products
Saline solution bags,Sterile iv fluid bags,Antimicrobial solution bags,Electrolyte solution bags,Dextrose solution bags,Multi-chamber iv bags
Steps before
Material Supply,Film and Tube Preparation
Steps after
Filling,Bag Inspection,Packing,Sterilization
Input ingredients
PP film,tubes
Output ingredients
IV bags,multi-chamber bags
Market info
GF (Coesia Group) is known for its expertise in automated machinery and industrial solutions, providing customized, engineered-to-order equipment for various industries worldwide, emphasizing innovation, quality, and technological excellence.

Technical Specifications


Operating mode
Intermittent
Automation
Fully automatic
Air Pressure
Max 8 bar
Operating Noise Level
75 dB
Material Type
PP IV bags
Sealing type
Ultrasonic/Peelable

Operating Characteristics


Working mechanism
Fully automatic termo forming
Batch vs. continuous operation
Intermittent
Automation level
Fully automatic
Integration options
Modular design for various modules
Zero waste system
Material (film and tube)
Max air pressure
8 bar
Operating Noise Level
75 dB

Product type Characteristics


Container type
IV bags

Physical Characteristics


Machine footprint
Modular design
Bag type
PP IV bags
Control panel type
Automatic
Connections
Max air pressure 8 bar
Operating mode
Intermittent
Packaging features
Multi-chambers,zero waste
Operating Noise Level
75 dB

Custom Options


Modular design
Allows integration of various modules
Sealing options
Ultrasonic sealing,Peelable sealing
Accessory integration
Inserts different accessories
Integration possibilities
Bag inspection and filling machine integration
