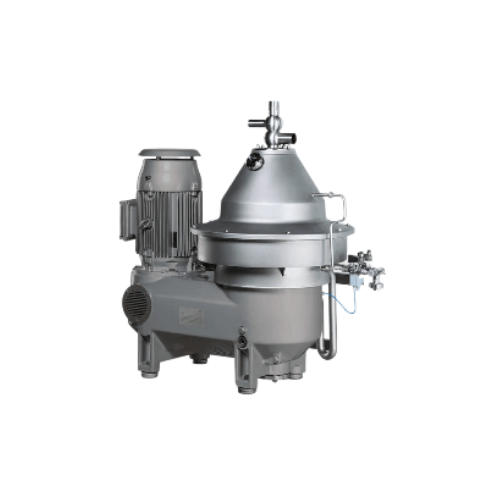

Bacteria removal separators for milk and whey

Optimize your dairy production by effectively removing bacteria and spores from milk and whey, ensuring quality and extending shelf life with advanced centrifugal separation technology.

Eliminates Bacteria and Spores from Dairy Liquids

The GEA Bacteria Removal Separators for Milk and Whey are vital for dairy producers and cheese manufacturers aiming to improve product quality and longevity. These separators employ a high-speed centrifugal process to efficiently eliminate bacteria, spores, and other impurities from dairy liquids. Equipped with the GEA proplus system, these separators extend ejection intervals by up to six times, significantly boosting protein yields while reducing wastewater and energy consumption. Suitable for applications in the dairy industry, the equipment handles a capacity range from 3,000 to 60,000 liters per hour, integrating seamlessly with continuous, automated operations. Constructed with corrosion-resistant materials and featuring optimal design of the feed and disk stack, these separators ensure longevity and ease of maintenance. With capabilities to adapt to various dairy processing needs, from lactose-free milk to whey protein concentrate, this equipment is not only a staple in enhancing dairy product safety but also supports a wide array of end-products.

Benefits

  • Enhances product quality by efficiently removing up to 99% of bacteria and spores.
  • Increases protein yield and reduces waste with extended ejection intervals.
  • Lowers operational costs through decreased waste water production and energy consumption.
  • Supports versatile dairy production from UHT milk to whey protein concentrate.
  • Minimizes maintenance efforts with corrosion-resistant materials and optimized design.

General


Applications
Uht milk,Dairy products,Cheese milk,Milk powder,Whey,Drinking milk,Fresh milk,Cheese-making milk
End products
Infant formula,Greek yogurt,Cream cheese,Whey protein concentrate,Mozzarella cheese,Ultra-high temperature (uht) processed milk,Condensed milk,Lactose-free milk,Ricotta cheese,Extended shelf life milk
Steps before
Raw milk collection,Milk filtering,Homogenization
Steps after
Pasteurization,Ultrafiltration,Cheese production,Whey processing,Milk powder production,Packing
Input ingredients
raw milk,vat milk,whey,cheese-making whey,fresh milk,factory milk,UHT milk,cheese milk,skim milk
Output ingredients
clarified milk,whey protein concentrate,carrier liquid,concentrated serum proteins
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Capacity
3,000 – 60,000 l/h
Protein yield increase
Up to 75%
Bacteria removal efficiency
Up to 99%
Ejection interval extension
Up to six-fold
Automation
Proplus system
Spore reduction
Up to 99%
Efficiency Levels
Up to 90% in germ count

Operating Characteristics


Automation Level
PLC / SCADA / Manual
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP possible
Recirculation System
Up to 3% feed volume recycled
Ejection Interval
Extended up to six-fold with GEA proplus
Double Bacteria Removal
For longer shelf life of milk
Energy Efficiency
Significant reduction in energy costs

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Drip Whey Reuse
Mixed back with other whey

Physical Characteristics


Machine footprint
Customizable based on capacity
Feed method
Centripetal pump
Discharge method
Automatic ejection with GEA proplus
Design type
Disk stack centrifuge
Material
Stainless steel
Capacity range
3,000 – 60,000 l/h

Custom Options


Control panel type
Standardized / Customized
Automation level
Manual / PLC / SCADA
Recirculation system
Available
GEA proplus system
Optionally equipable
Ejection interval extension
Up to 6x
