Automatic palletizer for bottle packaging lines

Streamline your bottling line with advanced palletizing solutions engineered for precision, flexibility, and seamless integration, reducing downtime and boosting operational efficiency in high-volume environments.

Orients, Files, and Palletizes Bottles

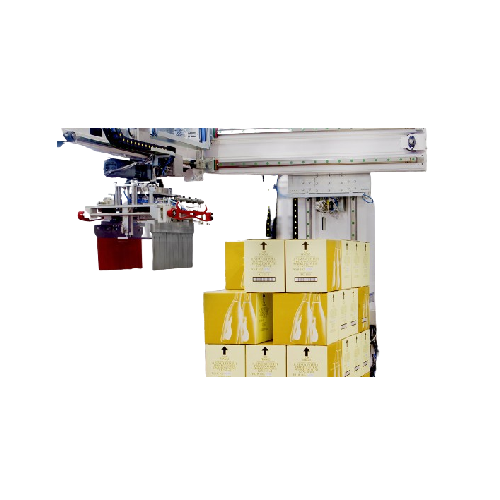

The BABYPAL Cartesian Axis Palletizer from APE Impianti is specifically engineered to meet the spatial and operational demands of beverage and food packaging industries. This automatic palletizer features a Cartesian axis movement for precise orientation, case filing, and palletization of bottles and cartons, achieving throughput up to 5,000 bottles per hour. Its integrable design allows seamless automation of ancillary operations, enhancing adaptability to various production lines. Ensuring maximum control and flexibility, the BABYPAL’s construction uses advanced axis motion technology, providing reliable performance with minimal footprint. It stands out for its capability to optimize format changeovers efficiently, saving both time and operational costs.

Benefits

  • Optimizes space utilization with compact Cartesian design, fitting into restricted facility footprints.
  • Enhances operational efficiency by reducing format changeover time and costs.
  • Increases production reliability with precise orientation and filing, minimizing product handling errors.
  • Integrates seamlessly into existing lines for complete automation, reducing manual intervention.
  • Flexible design supports various bottle and carton sizes, accommodating diverse product ranges.

General


Applications
Food,Wine,Cartons,Spirits,Bottles,Beer
End products
Canned food cartons,Lager beer bottles,Juice cartons,Vodka bottles,Gin bottles,Milk cartons,Ale beer bottles,Rum bottles,Whiskey bottles,Soft drink bottles,White wine bottles,Juice bottles,Beverage cartons,Red wine bottles
Steps before
Bottling,Case Orientation,Case Filing
Steps after
Packing,Shipment,Distribution
Input ingredients
bottles,cases,cartons
Output ingredients
pallets,palletized bottles,layered pallets
Market info

Technical Specifications


Speed
3,000-18,000 bottles/h
Capacity
Up to 12,000 bottles/h
Automation
Automatic layer by layer palletizer
Axes Movement
Cartesian axis
Footprint
Super small
Construction Material
Robust and reliable
Module Design
Innovative design and flexible
Software
Exclusive software for automation and changeover
Mechanical Design
Designed for performance
Robotics
Anthropomorphic robotic palletizer

Operating Characteristics


Working mechanism
Cartesian axis movement
Integrated steps
Orientation,case filing,and palletizing
Automation level
Complete automation with modular solutions
Changeover time
Automatic settings for format changeover
Batch vs. continuous operation
Continuous

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Super small footprint
Automation type
Cartesian axis movement
Layer preparation solution
Innovative technical solutions
Material of construction
Robust construction materials
Adaptability
Flexible system adaptable to customer needs
Control system
Dedicated electronics
Motion typology
Specific motion typology
Design type
Anthropomorphic design (for robotics model)

Custom Options


Control panel type
HMI/PLC interface
Integration possibilities
Modular accessory options
Automation level
Full automation
Footprint
Compact/small
Software customization
Customized software for format changeover
Modular design
Yes
