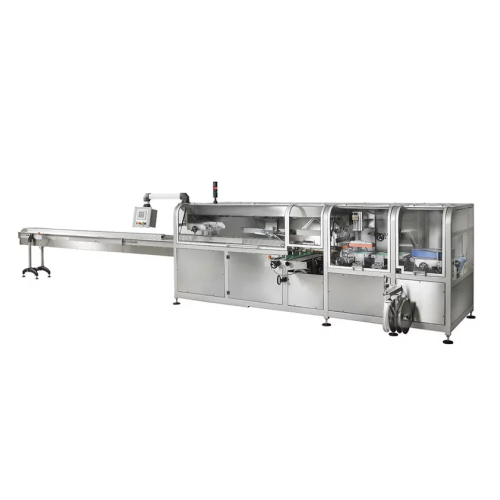

Automatic packaging system for preformed bags

Enhance your bakery’s efficiency with advanced preformed bag packaging, ensuring consistent product integrity and presentation for a range of baked goods including bread, pastries, and more.

Bags and Seals Baked Goods Efficiently

The Mod. IMA-100P from Brevetti Gasparin is an industrial-grade automatic bagger machine tailored for the dynamic needs of the baking industry. It features a robust design crafted in painted steel to ensure durability in demanding environments. With a focus on precision, the IMA-100P automates the bagging and sealing of various bakery items, including baguettes and eclairs, using its synchronized pliers inserter and mechanical grippers. It efficiently handles products up to 400mm in length at a rate of 40-42 bags per minute.

This machine integrates seamlessly into production lines, featuring touch screen controls and programmable memory for streamlined operations. Its energy efficiency is evident with a power consumption of just 7 kW. Additionally, the IMA-100P offers options such as an exit conveyor and sealing arm, supporting customization to fit specific operational requirements. Designed for ease of maintenance, it complies with safety regulations with features such as centralized control panels and emergency protocols.

Benefits

  • Increases packaging speed with its synchronized automation system, enhancing overall production efficiency.
  • Minimizes labor costs by automating product bagging and sealing processes.
  • Ensures product integrity with precise handling and mechanical gripper technology.
  • Optimizes energy use, requiring only 7 kW to operate.
  • Flexible integration options enable customization for diverse production line requirements.

General


Applications
Baked goods,Bread,Confectionery products,Pastries,Bakery products
End products
Baguettes,Cheesecake bites,Danish pastries,Muffins,Sliced bread,Croissants,Donuts,Eclairs,Brioche,Dinner rolls
Steps before
Slicing,Product preparation,Product sorting,Product inspection
Steps after
Clipping,Sealing,Labeling,Final packaging,Palletizing
Input ingredients
preformed bags,products for packaging
Output ingredients
packaged products in bags
Market info
Gasparin is known for manufacturing mobile crushing equipment and screening plants, particularly in the construction and demolition sectors. They specialize in engineering robust and efficient machines and have a reputation for innovation and reliability in the industry.

Technical Specifications


Automation
Automatic bagging
Bag type
Preformed bags
Control panel type
Touch screen
Production rate
40-42 bags/min
Power
7 Kw
Weight
2200 Kg
Max product length
400 mm
Max product width
200 mm
Max product height
150 mm
Material
Painted steel
Pneumatic system
Air blowing for bag opening
Bag storage
3 stacks

Operating Characteristics


Automation level
Automatic
Bagging mechanism
Pliers inserter and air blowing
Bags store capacity
3 stacks
Batch vs. continuous operation
Inline Continuous
Product insertion method
Double pushing arm
Bag sealing method
Sealing arm
Emergency features
Centralized controls,emergency power

Material Compatibility


Abrasion resistance
Steel construction

Product type Characteristics


Bag Type
Preformed Bags

Physical Characteristics


Machine footprint
Contact commercial office
Material
Painted steel
Control panel type
Touch screen panel

Custom Options


Control panel type
Touch screen panel
Integration possibilities
Automatic packaging in preformed bags
Optional features
Closing head for clip,Printer on clip,Exit conveyor at 90°,Double pushing arm,Sealing arm
Bag opening system
Air blowing and mechanical grippers
Bagging head
Pliers inserter with synchronized speed
Product loading
Entry conveyor
Construction material
Heavy duty design in painted steel
Power configuration
Electric panel with centralized controls
