Automatic leakage detection for Pet bottles

Ensure the integrity of bottled beverages by detecting even the smallest leaks and closure faults automatically, safeguarding product quality and packaging stability in high-speed production environments.

Detects Leaks and Inspects Closures

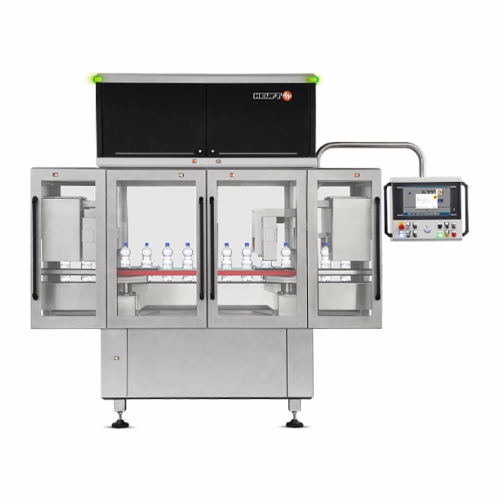

The HEUFT Squeezer II from HEUFT SYSTEMTECHNIK GMBH is an in-line PET bottle leak detection system designed specifically for beverage, food, and pharmaceutical manufacturers. This equipment excels in ensuring product integrity by employing a comparative fill level detection and internal pressure measurement to identify leaks, stress cracks, and microcracks in containers. Its fully automatic operation is facilitated by the HEUFT SPECTRUM II platform, which adapts seamlessly to brand and format changes without manual intervention.

Capable of handling up to 72,000 bottles per hour, the HEUFT Squeezer II integrates advanced closure inspection technologies, including sensors, cameras, and ultrasonic tools, to verify closure integrity, thereby safeguarding the tightness and quality of drinks packaging. This system supports continuous operation and networked inspection solutions with real-time monitoring and data acquisition, enhancing line efficiency and reducing waste through precise fault rejection using the HEUFT rejector series.

The equipment’s robust design, optimized for hygiene, includes HEUFT Clean Design features for easy cleaning in sensitive environments, ensuring compliance with stringent hygiene standards. Customizable with various detection technologies, such as high-frequency and X-ray, the HEUFT Squeezer II provides versatile inspection capabilities tailored to specific production needs, complemented by intuitive HEUFT NaVi user guidance for simplified operation and troubleshooting.

Benefits

  • Enhances product quality by ensuring leak-free and secure packaging, thus preventing microbiological contamination.
  • Increases operational efficiency with automatic, fast adaptation to brand and format changes, minimizing setup time.
  • Minimizes waste through precise fault detection and effective product rejection, preventing costly recalls.
  • Supports proactive maintenance with real-time monitoring and fault identification, reducing unexpected downtime.
  • Streamlines cleaning processes in hygienic environments, ensuring compliance with high sanitary standards.

General


Applications
Food,Pet bottles,Beverage,Full containers,Pharma,Drinks packaging
End products
Herbal teas,Bottled water,Liquid dietary supplements,Sports drinks,Plant-based milk alternatives,Pasteurized milk,Vitamin-enriched beverages,Carbonated soft drinks,Fruit juices,Carbonated energy drinks
Steps before
Filling,Capping
Steps after
Sterilization,Packing,Labeling
Input ingredients
PET bottles,full bottles,bottles with closures
Output ingredients
leak-free PET bottles,defect-free bottles,properly sealed bottles,rejected faulty bottles
Market info
HEUFT is known for its expertise in inline quality inspection systems and automation solutions for the food, beverage, and pharmaceutical industries, with a reputation for innovation and reliability in ensuring product safety and integrity.

Technical Specifications


Automation
Highly automated
Capacity
Up to 72,000 bottles per hour
Detection type
SENSOR / Camera / Ultrasonic
Pressure measurement
Internal pressure
Product type
PET bottles

Operating Characteristics


Working mechanism
Leakage check via comparative fill level detection and internal pressure measurement
Integration with HEUFTSPECTRUM II
Fully automatic and adaptable
Automation level
High,with HEUFTNaVi user guidance
Changeover time
Fast,automatic adaptation for brand changes
CIP/SIP
Not specified,hygiene-optimised design
Cleaning method
Hygiene-optimised HEUFTCleanDesign
Fault detection
Leakage,stress cracks,closure defects
Fault rejection method
Single-segment and multi-segment rejection
Product monitoring
Real-time tracking and regular self-tests
Online capabilities
Network and remote maintenance

Material Compatibility


Cleanability
HEUFTCleanDesign

Product type Characteristics


Container type
PET bottles
Container size
Variable,adaptable
Closure type
Screw,canted,defective
Product sensitivity
Microbiological purity

Physical Characteristics


Machine footprint
Compact
Discharge method
Automatic rejection system
Control panel type
Self-explanatory touchscreen interface
Container transport
Automatic adaptation for brand and format changes

Custom Options


Integration possibilities
Network-based connectivity
Control panel type
Self-explanatory touchscreen
Automation level
Fully automatic
Human-Machine Interface (HMI)
HEUFTNaVi user guidance
System modularity
Expandable with various technologies (camera,high frequency,X-ray)
Adaptability
Automatic brand and format changes
Interconnected Modules
HEUFTSPECTRUMII device platform
Self-optimizing features
Automatic detection unit adaptation
