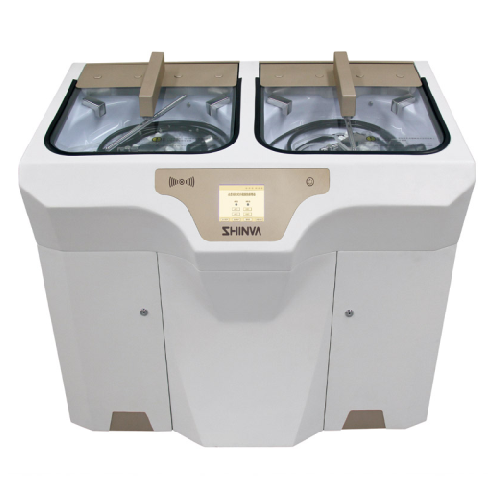

Automatic flexible endoscope washer-disinfector

Ensure thorough sanitization of flexible endoscopes with a solution that manages washing, disinfection, and drying within 15 minutes, meeting stringent medical hygiene standards and enhancing efficiency in endoscopy procedures.

Cleans and Disinfects Flexible Endoscopes

The Rider series flexible endoscope washer-disinfector by Shinva Medical Instrument Co., Ltd. is a high-efficiency solution for rigorous infection control. Utilizing ISO15883-4 standards, it offers comprehensive washing and disinfection in under 15 minutes, ideal for fast-paced hospital and clinic settings. It performs continuous leakage tests and includes process data printing for thorough documentation. Key features encompass an independent lumen pressure booster, ensuring thorough cleaning of all endoscope passages, and a self-disinfection function to prevent contamination after maintenance. With its automatic chemical additive management, this equipment seamlessly integrates into existing hospital sterilization workflows, reducing manual handling and enhancing operator safety with a fully enclosed structure and user-friendly automatic doors. Tailored for healthcare facilities, the Rider series is an essential asset for maintaining stringent hygiene standards and supporting continuous endoscopic procedures.

Benefits

  • Enhances operational efficiency by completing endoscope cleaning and disinfection within 15 minutes.
  • Increases patient safety with continuous leakage testing and robust data management capabilities.
  • Minimizes contamination risks with a self-disinfection function and filtered water rinsing.
  • Improves operator safety and ease of use with automatic doors and enclosed structure.
  • Facilitates seamless integration into hospital workflows with automated chemical additive management.

General


Applications
Medical devices,Flexible endoscopes,Endoscopy cleaning,Hospital sterilization,Healthcare sanitization,Infection control equipment
End products
Colonoscopes,Infection barrier solutions,Gastrointestinal endoscopes,Fiber-optic scopes,Bronchoscopes,Endoscopic biopsy instruments
Steps before
Endoscope Leakage Test,Preparation for Washing
Steps after
Self-disinfection,Process Data Printing,Endoscope Drying,Sterilization,Process Data Management
Input ingredients
flexible endoscope,water,enzymes,alcohol,disinfectants,chemical additives
Output ingredients
clean endoscope,disinfected endoscope
Market info
Shinva is known for manufacturing medical equipment, including sterilization and disinfection devices, radiotherapy products, and diagnostic imaging systems, demonstrating expertise in healthcare solutions and a strong reputation for quality in the medical industry.

Technical Specifications


Cycle time
15 minutes
Compliance Standard
ISO15883-4
Endoscope Capacity
1 piece
Filter size
0.1 µm
Leakage Test Feature
Yes
Drying Method
Air drying / Alcohol drying
Automation
Automatic door with foot pedal switch
Disinfection Method
All-round,full pipe cleaning with spray nozzle and rotating spray arm
Additive Management
Chemical additives automatically metered and added
Disinfectant Sampling
Automatic sampling device
Disinfectant Addition and Discharge
Automatic

Operating Characteristics


Automation level
Automatic
Cleaning method
Automated washing and disinfection
Cycle time
15 minutes
Leakage test function
Continuous monitoring
Process data management
Network integration
Self-disinfection
Automated
Drying function
Air/Alcohol drying
Disinfectant handling
Automatic addition and discharge
Interface type
Foot pedal and automatic glass door
Endoscope lumen washing
Pressure booster pump

Material Compatibility


Cleanability
Easy to clean surfaces
Density/particle size
Flexible endoscopes


ISO Certification
ISO15883-4

Physical Characteristics


Compact footprint
Yes
Control panel type
Visualize automatic glass door,foot pedal switch
Machine structure
Fully enclosed structure

Custom Options


Control panel type
Visualize automatic glass door with foot pedal switch
Integration possibilities
Connect to management computer system for data synchronization
Door type
Automatic glass door
Chemical additives handling
Automatic addition of enzymes,alcohol,and disinfectants
Disinfectant monitoring
Automatic sampling device
Leakage test
Automatic,with visual and audible alarms
Drying function
Air drying and alcohol drying
Self-disinfection function
Automatic program for chamber and pipe disinfection
