Automatic chocolate mold aligner and conveyor

Efficiently align and rotate chocolate molds to streamline your production line, enhancing the seamless transition of multi-layered chocolate bars, pralines, and truffles from enrobing to cooling processes.

Aligns, Rotates, and Conveys Chocolate Molds

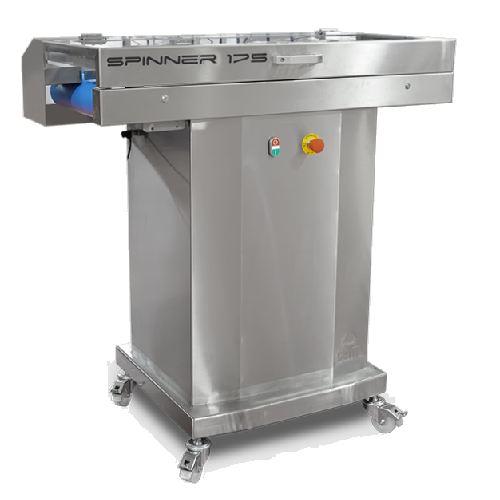

The Spinner Exit 175/275 from Selmi Group offers a specialized solution for chocolate manufacturers seeking efficient mold handling. This equipment expertly aligns and rotates chocolate molds 90 degrees upon exiting the SELMI TUTTUNO Oneshot Machine, allowing seamless integration into a continuous production line. Designed to accommodate varying mold sizes from 175 mm to 275 mm, it ensures compatibility with downstream equipment like the Spider vertical cooling tunnel and the SELMI Automatic Demoulder, facilitating custom and automated configurations. Powered via TUTTUNO, it operates with minimal power requirements (0.2 kW), making it energy-efficient. The Spinner’s robust construction and precise conveyor mechanism maintain production continuity in applications ranging from pralines and filled chocolates to truffles and ganache-filled bars, supporting both solid and liquid chocolate products in food and confectionery industries.

Benefits

  • Enhances production efficiency by seamlessly connecting molds to downstream equipment.
  • Minimizes energy usage with low power consumption (0.2 kW) during operation.
  • Reduces manual handling with automated mold alignment and rotation.
  • Increases versatility by accommodating various mold sizes and chocolate product types.
  • Streamlines production line integration, supporting custom configurations and space optimization.

General


Applications
Pralines,Confectionery,Chocolate production,Chocolate products,Ganache,Chocolate bars,Chocolate enrobing,Chocolate moulding,Truffles
End products
Chocolate-coated truffles,Filled chocolates,Molded chocolate pralines,Chocolate ganache fillings,Chocolate bars with fillings,Chocolate-coated confectionery,Multi-layered chocolate bars,Decorative chocolate products,Hollow chocolate figures
Steps before
Mould Loading,Chocolate Tempering,Chocolate Depositing,Cooling
Steps after
Demoulding,Cooling,Packing
Input ingredients
chocolate molds,ganache fillings
Output ingredients
aligned chocolate molds,chocolate products,mould ready for demoulding
Market info
Selmi is renowned for manufacturing high-quality chocolate processing equipment, such as tempering, enrobing, and cooling machines, with a strong reputation for precision, innovation, and reliability in the confectionery and chocolate industry.

Technical Specifications


Electrical specification
220V Single Phase 50/60Hz
Power required
16A 3 poles – 0.2Kw
Dimensions
h. 1200mm,w. 1150mm,d. 800mm
Rotation degree
90°
Belt width
From 175 mm to 275 mm

Operating Characteristics


Working Mechanism
Conveyor with 90-degree rotation
Integrated Steps
Mold alignment and transport
CIP/SIP
Manual cleaning recommended
Batch vs. Continuous Operation
Inline Continuous
Changeover Time
Quick changeover for different mold sizes
Automation Level
PLC-controlled interface
Cleaning Method
Manual/CIP Compatible
Energy Efficiency
0.2 kW
Interfacing
Interfaced via TUTTUNO systems
Coordination with Other Equipment
Essential for connecting cooling tunnel to demoulder

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine Footprint
h. 1200mm,w. 1150mm,d. 800mm
Discharge Method
Conveyor Belt
Rotation Angle
90 degrees

Custom Options


Integration possibilities
Interfaced via TUTTUNO
Rotation capability
90° rotation
