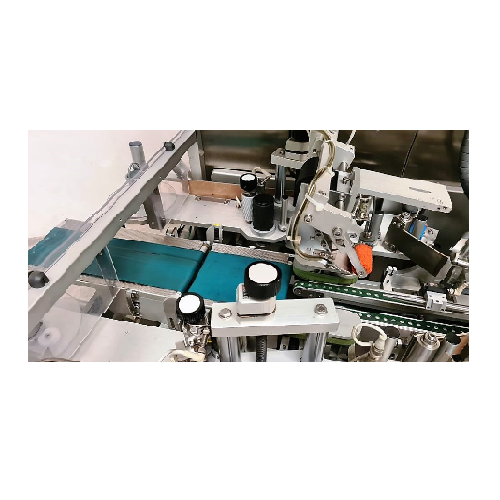

Automatic carton labelling and weighing system

Boost your carton packaging precision with a solution that seamlessly integrates labeling, weighing, and tamper-evident sealing into high-speed production lines, ensuring track-and-trace compliance and reducing product rejection rates.

Labels, Weighs, and Seals Cartons Precisely

The LMT-80V CW FX Series from Siempharma is an automatic multifunction carton labeler equipped with an integrated checkweigher, specifically designed for the pharmaceutical, nutraceutical, and cosmetic industries. This equipment stands out with its high-speed, servo-driven labeling and weighing capabilities, ensuring accurate and tamper-evident sealing of cartons. It employs an Electro Magnetic Force Restoration (EMFR) weigh cell, providing fast and precise weighing results by using electromagnetic force compensation technology.

Capable of high production speeds, the machine is adept at handling various product dimensions with its user-friendly size changeover and tool-free operation. Applications include labeling blister packs, effervescent tablets, herbal supplements, and more, with the ability to integrate track-and-trace systems seamlessly. The machine’s conveyor system features a tooth belt for smooth, non-stop carton transportation, reducing mechanical stress.

Built with an aluminum chassis and stainless steel panels, the machine complies with GMP standards and the INDUSTRY 4.0 framework, ensuring robust performance and easy maintenance. A touch screen HMI offers intuitive operation, while compliance with CFR21 Part 11 and EU Annex 11 standards guarantees regulatory adherence. Optional configurations are available for enhanced reject handling and labeling options, tailored to your specific production requirements.

Benefits

  • Enhances production speed with high-speed, non-stop carton handling.
  • Ensures product integrity with precise tamper-evident sealing.
  • Minimizes manual intervention through tool-free size changeover.
  • Supports regulatory compliance with integrated track-and-trace capabilities.
  • Provides accurate data with real-time weight monitoring and rejection system.

General


Applications
Nutraceuticals,Cartons,Cosmetics,Packaging,Pharmaceuticals
End products
Carton packs with rfid,Blister packs,Herbal supplements,Lip balm tubes,Anti-aging cream jars,Effervescent tablets,Protein powder sachets,Shampoo bottles,Tamper-evident sealed cartons
Steps before
Carton folding,Carton filling
Steps after
Packing,Distribution,Shipping
Input ingredients
cartons,self-adhesive vignette,tamper evident seals
Output ingredients
labeled cartons,weighed cartons,tracked cartons
Market info

Technical Specifications


Automation
User-friendly and intuitive functioning Touch Screen HMI
Speed
High production speed
Size changeover
Quick,tool-less adjustments
Weighing accuracy
Electro Magnetic Force Restoration (EMFR) technology
Transport system
Tooth belt positive carton transportation
Stabilizing system
Side stabilizer for carton inlet
Labeling heads
Top and side labeling heads
Printing technologies
Thermal transfer,thermal ink jet,laser
Rejection system
Air blower for rejected cartons
Track,Trace readiness
Prearranged for compatible printer and camera
Compliance
CFR21 part 11 / EU ANNEX 11,CE rules
Industry Standards
INDUSTRY 4.0 standard
Ergonomics
Cantilever design for easy access
Product dimension accommodation
Very flexible on product dimensions

Operating Characteristics


Working mechanism
Servo driven system
Automation level
PLC
Integrated steps
Labelling and weighing
Changeover time
User-friendly,no tools required
Batch vs. inline operation
Inline Continuous
Cleaning method
Easy access for cleaning
Energy efficiency
N/A

Product type Characteristics


Carton size
Flexible dimensions
Label application
Self-adhesive / Tamper evident
Track,Trace capability
Compatible

Physical Characteristics


Machine chassis material
Aluminum with stainless steel panels
Cantilever design
Yes
Base design
Open frame
Footprint
Compact
Transport method
Tooth belt positive carton transportation
Stabilizer type
Side stabilizer with soft,high grip belts
Labeler adjustment type
Two guides with vertical and horizontal adjustment via hand wheels
Reject system
Air blower with electro-valve
Control panel type
Touch Screen HMI
