Automatic bottle self adhesive labeling solution

Enhance your production line with precision labeling for diverse containers, ensuring seamless integration and consistent label application across various packaging types, from vitamin bottles to cosmetic jars.

Applies Double-Sided Self-Adhesive Labels

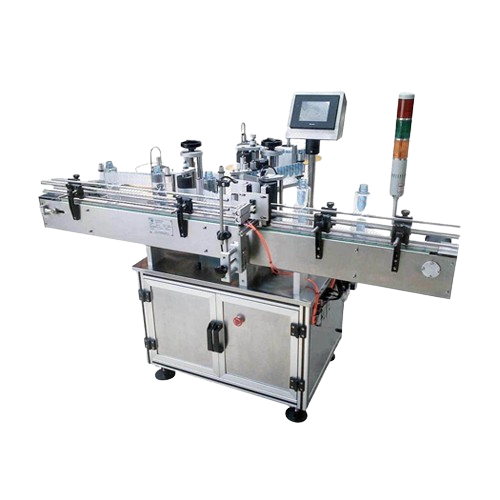

The Automatic Bottle Self Adhesive Position Labeling Machine (Model: DWT06) by Alps Machinery is designed to enhance efficiency in various industries, including food, cosmetics, and electronics. This machine specializes in applying precise double-sided self-adhesive labels to bottles of different sizes, from 100 ml to 2 liters, with a maximum throughput of 6,000 bottles per hour. It features a mature PLC control system and touch-screen interface for stable, high-speed operation, while the synchronization chain mechanism ensures smooth label application. Additionally, the machine supports labeling of conical and flask-shaped bottles, enhances label adhesion via a transmission-type rolling device, and includes a pneumatic coding system for clear batch number and expiry date printing. Constructed with a compact footprint of 2.2 x 1.0 x 1.4 meters and consuming only 0.5 kW of power, it integrates seamlessly into existing production lines, facilitating high-volume labeling needs with minimal energy consumption.

Benefits

  • Enhances production efficiency by applying labels precisely at high speeds.
  • Minimizes labor costs with automated PLC-controlled operation.
  • Adapts to various bottle shapes and sizes, increasing packaging versatility.
  • Ensures wrinkle-free labeling for a professional product appearance.
  • Reduces operational energy usage with low power consumption.

General


Applications
Food,Beverages,Hardware,Medicine,Stationery,Cosmetics,Packaged products,Auto parts,Bottled products,Batteries,Electronics
End products
Notebooks,Medicine bottles,Sauces bottles,Car part containers,Mineral water bottles,Screw and bolt packs,Aa battery packs,Electronic component packaging,Juice bottles,Shampoo bottles,Cosmetic jars,Vitamin supplement containers
Steps before
Bottle Blowing,Filling,Bottle Preparation
Steps after
Packing,Film Shrink,Cartoning
Input ingredients
PET bottle,Glass bottle,Jar,Can,Plastic cup,Bottle cap
Output ingredients
Self adhesive labeled bottle,Sticker labeled bottle
Market info
Alps Machine is known for specializing in the design and manufacturing of industrial engineered-to-order equipment, providing innovative solutions and reliable machinery tailored to the specific needs of industries like beverage and packaging.

Technical Specifications


Max Capacity
6000 Bottles/hour
Bottle Size
100ml ~2L
Bottle Diameter
28~125 mm
Label Length
10–250 mm
Label Height
20–100 mm
Label Material
Self adhesive label / Sticker label
Electrical Power
0.5 kW
Overall Dimensions
2.2 x 1.0 x 1.4 m
Weight
320 kg
Automation
PLC-controlled

Operating Characteristics


Working mechanism
PLC-controlled,touch-screen interface
Automation level
Fully Automatic
Changeover time
Minimal
CIP/SIP
Not specified
Cleaning method
Manual

Product type Characteristics


Bottle size range
100ml ~ 2L
Label types
Self adhesive / Sticker label
Bottle material compatibility
PET / Glass / Plastic
Bottle shape compatibility
Conical / Flask bottles
Label application sides
Double sided
Max bottle diameter
Dia 28–125mm
Bottle types
Beverage Bottle / Water Bottle / PET can / Pop can / Plastic cup / Bottle cap

Physical Characteristics


Compact footprint
2.2 x 1.0 x 1.4 m
Weight
320 kg
Control panel type
Touch-screen interface
Discharge method
Transmission-type rolling bottle device
Application range
100 ml - 2 L bottles
Bottle Diameter
28-125 mm
Label length
10-250 mm
Label height
20-100 mm

Custom Options


Control panel type
Touch-screen man-machine interface
Integration possibilities
Synchronization chain mechanism
Adjustment capability
Adjustable machine angle for various bottle shapes and sizes
