Automatic bag-in-box packaging system

Optimize your liquid packaging with a precise and seamless workflow, ensuring efficient case erecting, sealing, and packing for bag-in-box solutions.

Automates Bag-in-Box Packaging Processes

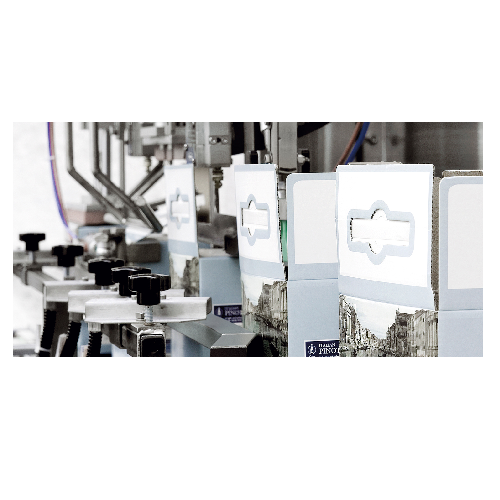

The Series Bag in Box from APE IMPIANTI is an engineered-to-order solution designed for efficient and precise Bag-in-Box packaging. This line integrates seamlessly with various liquid packaging operations, such as wine, beer, spirits, and liquid foods, to optimize your production workflow. It includes key components like the FORM BIB case erector, CH BIB case sealer, and the TRIO monoblock for precise bag handling.

Specialized for high-speed operations, the system automates the erecting, sealing, and packing processes, handling up to 1,000 bags per hour. Its PLC-controlled automation ensures seamless integration and continuous operation across your packaging line, minimizing downtime and labor costs.

Crafted with robust stainless steel options, the equipment offers high durability and resistance to corrosion, suitable for food-grade applications. It supports energy-efficient operations, reducing energy consumption while maintaining high throughput. The Series Bag in Box line is engineered to meet industry standards for safety and quality, providing reliable performance in demanding production environments. Additionally, customization options are available to tailor the equipment to specific production needs, supported by comprehensive engineering assistance.

Benefits

  • Enhances packaging speed, processing up to 1,000 bags per hour.
  • Reduces labor costs with full automation of erecting, sealing, and packing processes.
  • Decreases energy usage through optimized motor control.
  • Built from durable materials to resist corrosion, ideal for food-grade applications.
  • Offers customizable configurations to meet specific production demands.

General


Applications
Food,Liquid formulations,Wine,Spirits,Beer
End products
Brewed beer pouch,Liquid food mixes,Olive oil in bags,Juice in carton,Boxed wine,Packaged spirits,Bagged liquid sauces
Steps before
Depalletising,Case Erecting
Steps after
Case Sealing,Palletising,Unpacking
Input ingredients
empty case,packaging materials
Output ingredients
Bag-in-Box packaged product
Market info

Technical Specifications


Automation
Automatic packaging line
Bag type
Bag-in-Box
Filling speed
Up to 1,000 BIB/h

Operating Characteristics


Automation level
Automatic
Integrated steps
Case erecting,sealing,packaging
Batch vs. continuous operation
Continuous
Cleaning method
Manual
Output capacity
Up to 1,000 BIB/h
Human-machine interaction
Simple and efficient
Flexibility
Adaptable to specific product types
System harmonization
Fully integrated solution

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Packaging type
Bag-in-Box
Container size and shape
Adaptable to Bag-in-Box dimensions
Modularity
Monoblock configuration

Physical Characteristics


Machine footprint
Compact
Discharge method
Automatic packaging line
Control panel type
Human-machine interaction

Custom Options


Control panel type
Touchscreen / PLC / HMI
Integration possibilities
PLC / SCADA Integration
Discharge method
Automatic / Manual
Compact footprint
Yes/No
