Automated washing system for vials, syringes, cartridges, and ampoules

Achieve sterile conditions with this high-speed system designed to thoroughly wash and dry a variety of pharmaceutical containers, ensuring contamination-free environments for critical liquid formulations.

Washes and Dries Pharmaceutical Containers

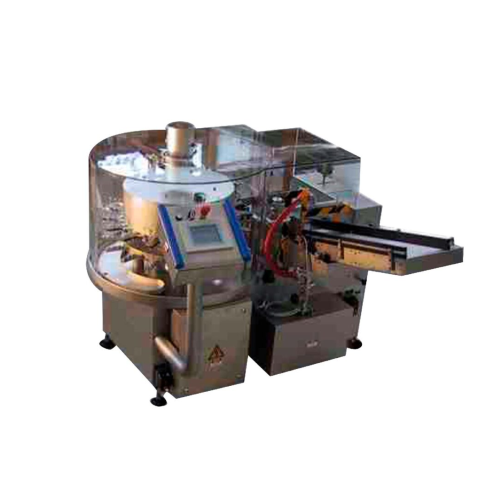

The Type 303/304/305 series from BAUSCH Advanced Technology Group are sophisticated washing machines engineered for pharmaceutical and biotech industries. These machines excel by using an enhanced cleaning system featuring energy-efficient cleaning needles that provide comprehensive internal container sanitation. They are adept at processing vials, syringes, cartridges, and ampoules, ideal for applications like sterile injectable solutions and vaccine doses. With a maximum throughput of 9,000 containers per hour, they ensure a high-speed, continuous operation tailored to meet rigorous aseptic conditions. The machines support PLC integration for seamless production line integration and reduced downtime, while an optional WFI recycling unit enhances water usage efficiency. Constructed from high-grade stainless steel, they stand up to the demanding environments of pharmaceutical manufacturing, fully compliant with GMP standards. Additionally, they offer an optional siliconization function with servo-controlled needles that allows for customized silicone patterns, optimizing product integrity.

Benefits

  • Enhances production efficiency with the ability to process up to 9,000 containers per hour.
  • Minimizes energy consumption through innovative, energy-efficient cleaning needle design.
  • Ensures product safety and regulatory compliance with GMP standards.
  • Reduces operational costs with recyclable water for injection (WFI) and flexible cleaning agents.
  • Allows for custom product configuration with optional siliconization, tailored to specific formulation needs.

General


Applications
Liquid formulations,Syringes,Vials,Aseptic fill-finish,Ampoules,Cartridges,Pharmaceutical packaging
End products
Monoclonal antibody vials,Nutraceutical containers,Iv antibiotics,Pre-filled syringes,Anesthetic ampoules,Vaccine doses,Biotechnology products,Insulin cartridges,Sterile injectable solutions,Hormonal injections
Steps before
Purification,Pre-cleaning
Steps after
Sterilization,Siliconization,Packing
Input ingredients
vials,syringes,cartridges,ampoules,cleaning agents,containers
Output ingredients
washed vials,washed syringes,washed cartridges,washed ampoules,dried containers,customized silicone patterns
Market info
Bausch Group is known for its precision engineering and manufacturing of custom industrial equipment, specializing in engineered-to-order solutions for various industries, prioritizing quality, innovation, and client-specific needs.

Technical Specifications


Maximum output
9,000 containers/hr
Material
High-grade stainless steel and pharmaceutical-grade plastics
Container handling
Smooth,using coated grippers
Cleaning needle design
Energy-efficient
Needle movement
Efficient cleaning of the entire inside
Log reduction
Up to 3-log
Siliconization
Optional with servo-controlled needle movement
Glass-to-glass contact
No contact during cleaning cycles
Customization
Customized silicone patterns

Operating Characteristics


Maximum output
9,000 containers/hr
Material of construction
High-grade stainless steel and pharmaceutical-grade plastics
Container handling
Smooth with coated grippers
Glass-to-glass contact
No contact during cleaning cycles
Cleaning needle design
Energy-efficient
Needle movement
Efficient cleaning of the entire inside of the container
Optional siliconization
Servo-controlled needle movement
Log reduction
Up to 3-log reduction
WFI recycling unit
Cost-effective,optional add-on
Cleaning agents
Different agents can be utilized

Material Compatibility


Corrosion resistance
High-grade stainless steel
Cleanability
Pharmaceutical-grade plastics

Product type Characteristics


Container type
Vials / Syringes / Cartridges / Ampoules

Physical Characteristics


Footprint
Not specified
Material
High-grade stainless steel,pharmaceutical-grade plastics
Container handling
Smooth handling with coated grippers
Needle design
Energy-efficient,servo-controlled needle movement
Siliconization capability
Optional with customizable patterns

Custom Options


Container handling
Smooth handling with coated grippers
Siliconization
Optional with servo-controlled needle movement
Needle design
Energy-efficient cleaning needle design
Cleaning agents
Different agents can be used
Recycling unit
Cost-effective WFI recycling unit
